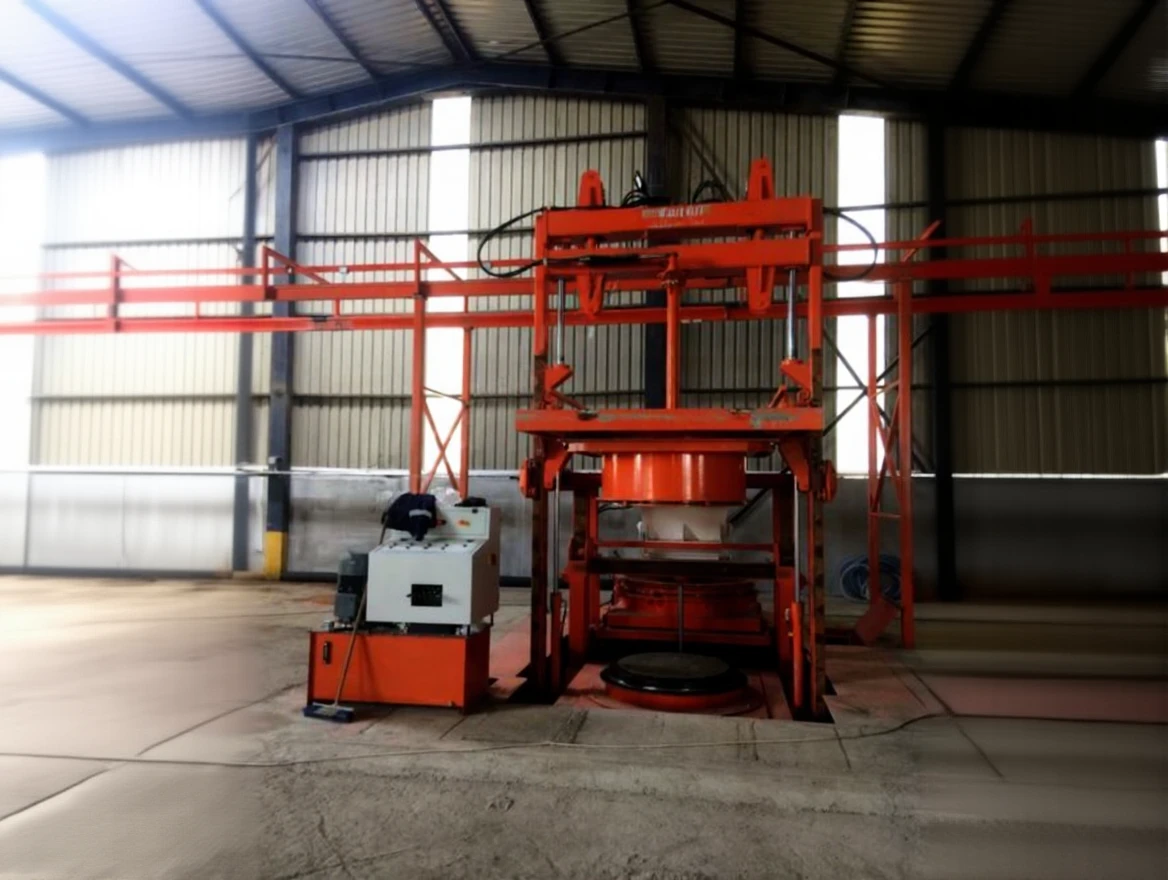

Ø800 mm Parcel Collars Concrete Chimney Machine
| Brand | Koyuncular Makina |
|---|
Ø800 mm Parcel Collars Concrete Chimney and Base Machine
•Our Chimney Bracelet Machine produces Ø800 Parcel Bracelets, Ø620, Ø1000 and Ø1200 Inspection Flue Bracelets, Ø620/1000- Ø620/1200 Chimney Top Cones.
•The manufactured concrete products are lifted to ground level and transported to the site via the New Generation Elevator System.
•Manufactured Chimney Elements are transported by Forklift to the Drying area.
•Thanks to the New Generation Elevator System, the production speed of manufactured products has doubled. Our Chimney Bracelet Machine Mold connections are designed to be the simplest and fastest to change. Vibration; It is done using a pipe type oil vibrator or a centrifugal type adjustable vibrator connected to the inner mold.
•Our machines manufactured as a result of Koyuncular Machinery’s quality and trust policy operate without any problems for many years.
•The most important feature of Koyuncular Machine that creates awareness in its field is that it immediately responds to all requests and technical support needs of our valued customers after installation and keeps bilateral relations alive at all times.
| Product | Length (mm) / Size (mm) | Daily Production Quantities (8 hours/day) |
|---|---|---|
| Ø800mm Parcel Bracelets / Ø800mm Parcel Bracelets | 250/1000mm | 80Pieces/Pieces |
| Ø620mm Inspection Chamber Collar / Ø620mm Inspection Chamber Collar | 250/1000mm | 90 Pieces/Pieces |
| Ø1000mm Inspection Chamber Collar / Ø1000mm Inspection Chamber Collar | 250/1000mm | 70 Pieces/Pieces |
| Ø1200mm Inspection Chamber Collar / Ø1200mm Inspection Chamber Collar | 250/1000mm | 60Pieces/Pieces |
| Ø620/1000mm Chimney Top Conical / Ø620/1000mm Chimney Top Conical | 650/1000mm | 60Pieces/Pieces |
| Ø620/1200mm Chimney Top Conical / Ø620/1200mm Chimney Top Conical | 650/1000mm | 60Pieces/Pieces |
| Feature / Feature | Value / Specification |
|---|---|
| Working System | Manual / Semi-Automatic |
| Engine Power | 18 kW |
| Hydraulic Pressure | 200 Bars |
| Mortar Bucket | 1.5 m³ |
