Oil Pumping Station with a Capacity of 150 m³/s (1100 kg)

Oil pumping stations with a capacity of up to 150 m3/h are designed to increase the pressure of the heat transfer fluid in pipeline systems and to maintain various temperature conditions in specific parts of the oil heating system.

ErichHahn OPS Advantages

The pumping station is designed in compliance with the European standard EN 809 + A1:2009 + AC:2010 (Pumps and pump units for liquids – General safety requirements) and is equivalent to the Russian GOST EN 809-2017 standard.
Purpose of Use

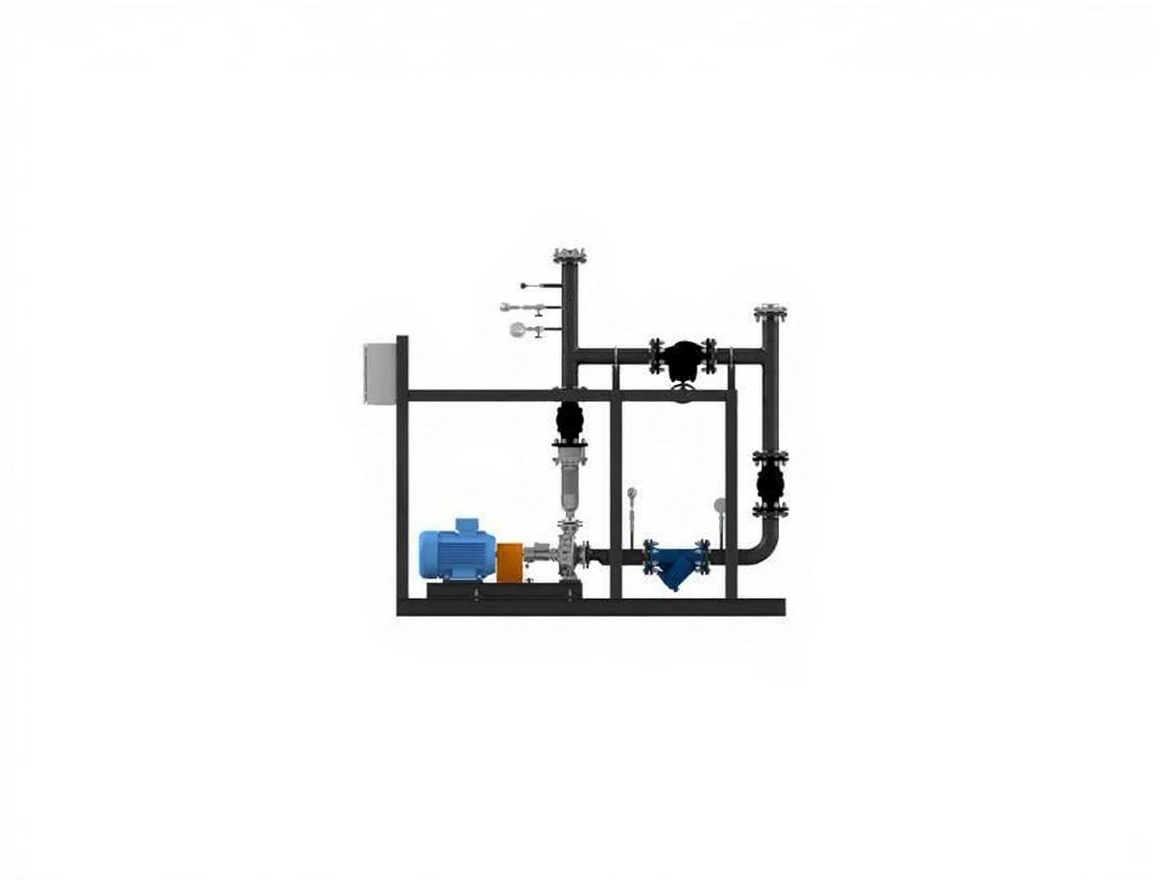

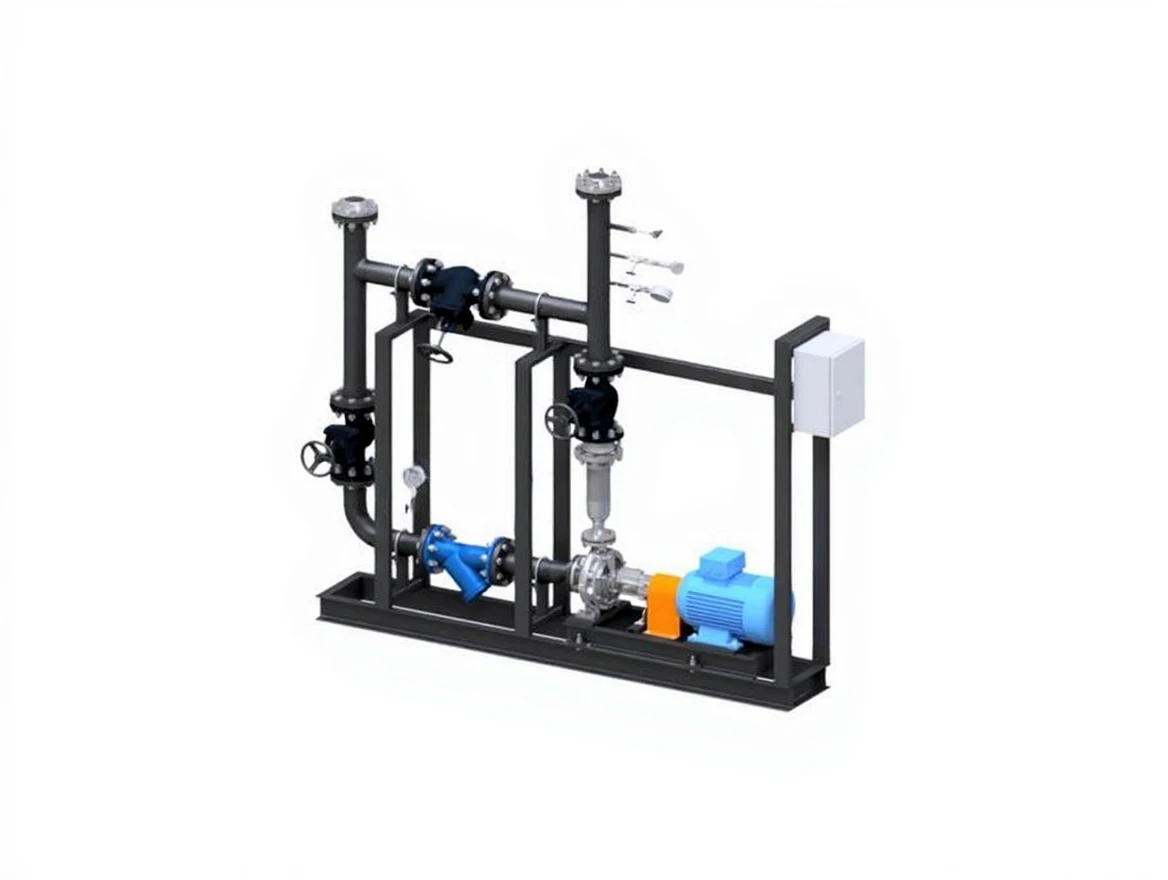

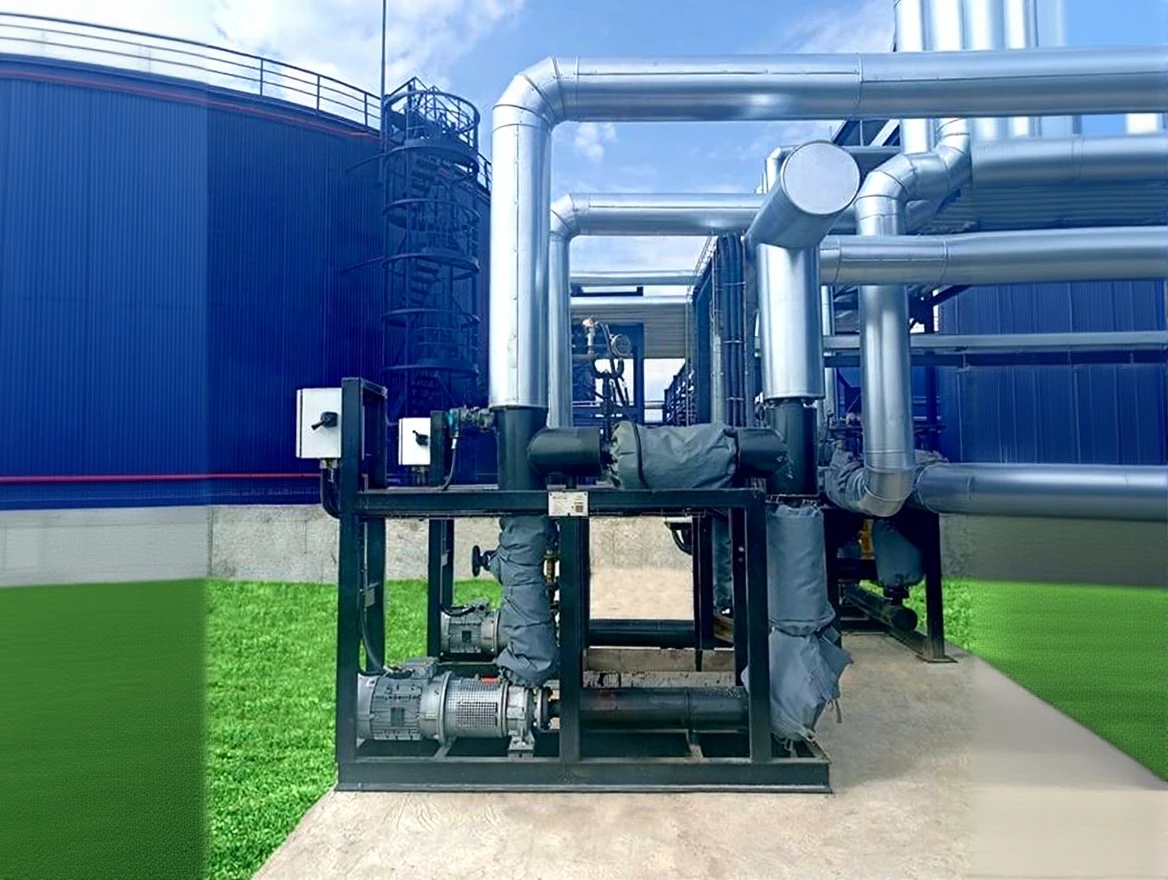

The station consists of a pump unit, a pipe filter (mesh filter), shut-off and control valves, measuring devices, and a control cab. All equipment is compactly mounted on a frame with safety protections. Removable thermal insulation is provided.

Pump Unit
The pump unit is a centrifugal pump mounted on the station’s base plate. The unit is powered by a 3-phase asynchronous motor. The pump capacity is controlled by a frequency converter.

A filter is used to filter the pumped product.

Measuring Devices

The unit is equipped with pressure gauges and pressure and temperature transducers. These devices are used in process control.
Control Valve

The control valve is used to automatically control the temperature of the heat transfer fluid according to the process conditions.

Control Panel
Monitoring and control modes of the pumping station are carried out using indicators, buttons, and switches located on the front panel of the local control cab. Remote control mode is provided based on digital interfaces.

OPS Quality Standards
