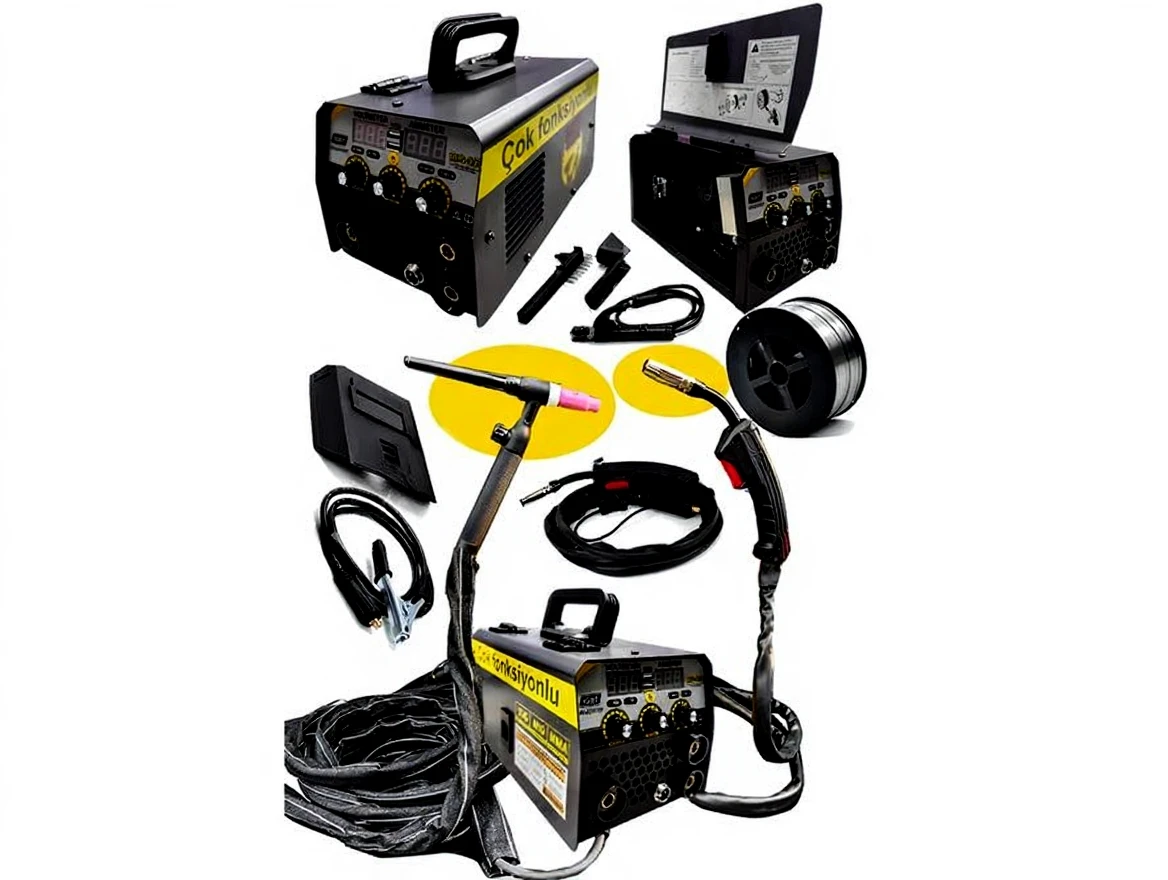

Çok Fonksiyonlu Gazsız Gaz Altı Kaynak Makinesi

Can be used for welding with 3 functional features tig mig and mma.

Tig (Argon) Welding: Argon Welding (TIG Welding) Tungsten inert gas welding is an welding process using electricity to melt and join metal parts. TIG (Argon) welding is suitable for a wide range of metal thicknesses. It is suitable even for very thin materials that are difficult (or impossible) to be joined with other welding techniques.

MIG welding: Metal inert gas (MIG) welding is a sub-type of gas metal arc welding (GMAW). In this welding process, base materials are joined together with a welding current. The filler metal is continuously fed from the welding gun. While the electric arc melts the electrode wire, it is melted together with the base metals in the welding pool. At the same time, the shielding gas moves along the welding gun to keep the welding away from atmospheric pollution.

MMA welding: Shielded Metal Arc Welding (SMAW), MMA, is a manual arc welding method in which the heat required for welding is generated by the arc formed between the coated flux-covered electrode and the workpiece. The tip of the electrode, the welding pool, the arc, and the areas of the workpiece close to the weld are protected by the gases produced by the burning and decomposition of the coating material from the harmful effects of the atmosphere.

It works with 1 kg wire 0.8 mm 0.9 mm 1 mm wires are compatible, we also have wires in stock in our store the machine works gasless runs wire from winding torch.

220 volt bag-type gasless welding machine 200 ampere Features 1 phase 230v-50/60 Hz grid voltage and works with generators, tolerates voltage fluctuations up to 15%.

Thanks to the Inverter technology, energy efficiency is higher compared to conventional machines. It offers excellent welding characteristics with steel, aluminum and various wire types. It has positive (+) and negative (-) polarization.

Welding voltage, wire feeding speed (current), soft start, pre-Gas, post-Gas, burn-Back settings and 2/4 trigger option are controlled from the front panel. Welding parameters can be easily monitored on large digital displays. There are free wire feeding and gas test buttons.

Technical Features

Type: Bag-type Gasless Gas Shielded Welding Machine
Power: 8.21 (20%) kva
Voltage: 220-230 volt 50Hz
Current range: 30-999 Amps
Min. Generator Power: 7kva
MMA Electrode Diameter: [ PHONE HIDDEN ]
Protection Degree: IP23
Product weight: 4 kg
Product size: 300 x 150 x 180 mm
Protection class: p21
Wire feeding system: Welding wire diameter [ PHONE HIDDEN ]mm, Standard wire feed reel size [ PHONE HIDDEN ]mm
Wire feed reel diameter: 1x30mm
Wire feed speed: 1 – 18m/min
Torch trigger control: 2 / 4
Welding thickness: 1 ~ 5mm
Wire reel capacity: 1kg
Cooling System: Fan cooling
Color: Blue
Parts: 1 machine box, 1 body, Extra parts

Functions

• Ø300, ø270 and ø200 mm reels, barrel packaging (accessory required) and spool gun can be used with ø100 mm reels.

• It is compact and easy to carry into the workshop and field.

• It is fan-cooled and thermally protected against overheating.

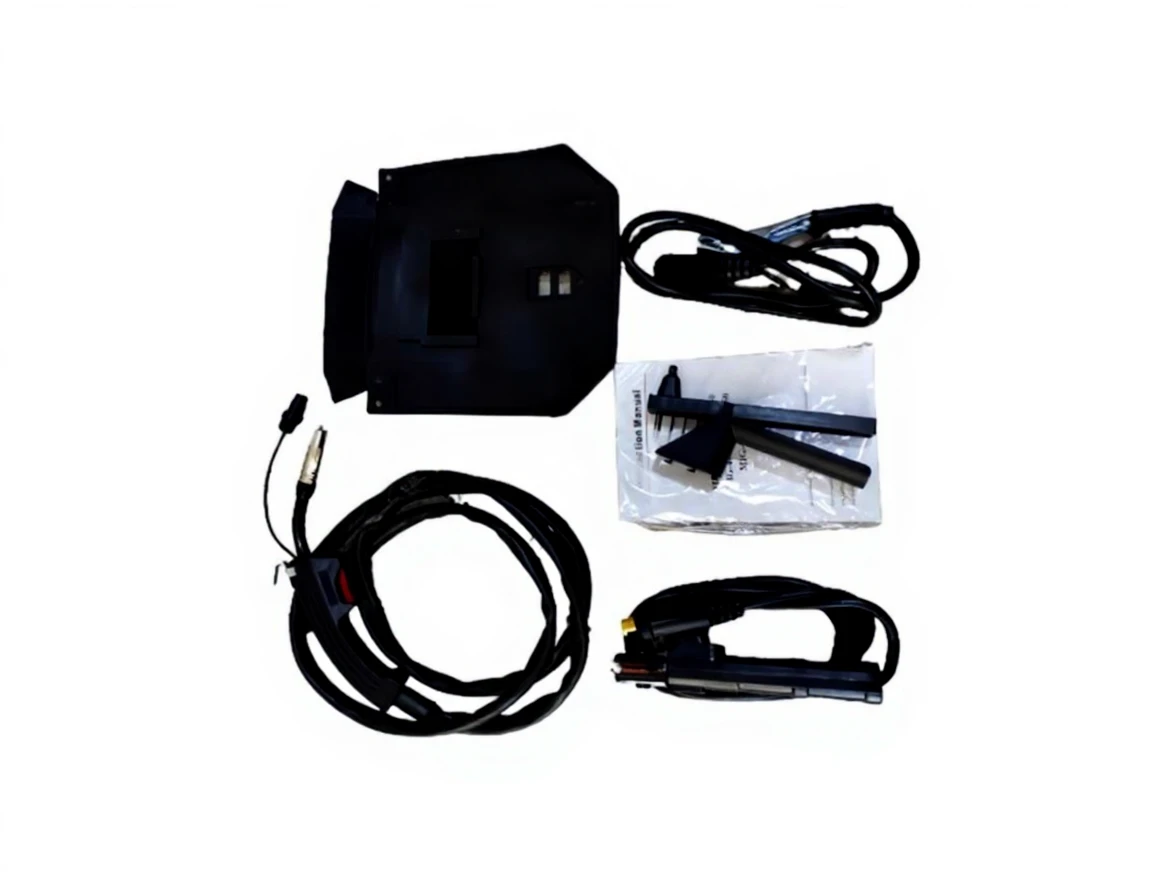

• Standard accessories come with the machine.

• There are free wire feeding and gas test buttons.

• 3D cooling system

• It can be used as gasless gas shielded or normal electrode welding

• 1 kg wire capacity

• Next generation gasless gas shielded welding machine has mig-Tig-Mma welding machine welding machine arc/mig/tig modes, user-friendly interface, integrated, easy, welding machine function switching buttons and current and voltage control buttons

• Smart digital display makes your work easier.

• 3 potential settings hot start works even at low current values by providing a high current value at the beginning of welding, ensuring easy electrode ignition

• Arc force provides a more stable arc, preventing the electrode from sticking to the workpiece and cutting off the arc
