Open Rail Rotary Head Marble and Granite Cutting Machine

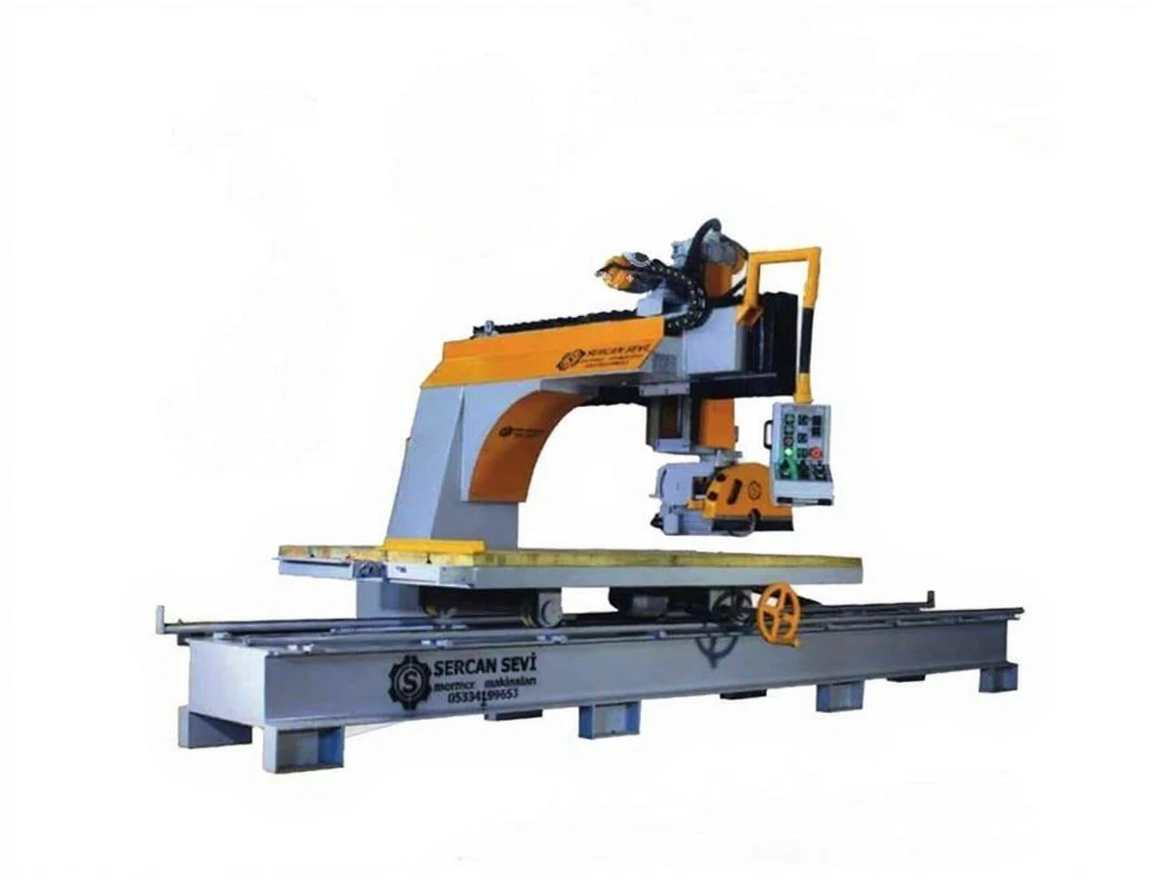

SRCN 1500 Open Rail – Rotary Head Marble and Granite Cutting Machine

It is our economical model and is one of the most preferred machines by our customers in terms of both price and performance. It is an ideal solution for small and medium-sized businesses with its durable structure, easy use and low maintenance costs. It can be produced in different sizes and features according to your needs.

Our SRCN 1500 model; It has the features of side cutting, 45° angle cutting and head cutting. The head cutting unit can rotate automatically between 0-90° and can be tilted automatically between 0-45°.

Thanks to the reducer system, wagon movements can be controlled both manually and automatically. With the wagon movement system, the saw section (head lengthening) works automatically and with speed control in forward and reverse directions.

Our machine has an open rail system. This system provides easy maintenance and intervention and provides the operator with a wider field of view.

Table dimensions and width vary between 1500–2700 mm, and cutting capacity varies between 1500–3500 mm. Durability and long life are aimed by using NPU profiles in the chassis sections. With the application of bellows in forward and reverse slide systems, moving parts are protected against external factors.

Saws with diameters between 350 and 500 mm can be mounted on our machine. The main engine power is 7.5–9 kW and is double speed. All motion systems are controlled from the user panel via keys.

Features:

• Saw Diameter:350–450mm

• Rail Length:5300mm

• Table Length:3200mm

• Table Width:1500mm

• Marble Cutting Length:3400mm

• Marble Cutting Width:1500mm

• Engine Power:7.5–9 kW (Double Speed)
