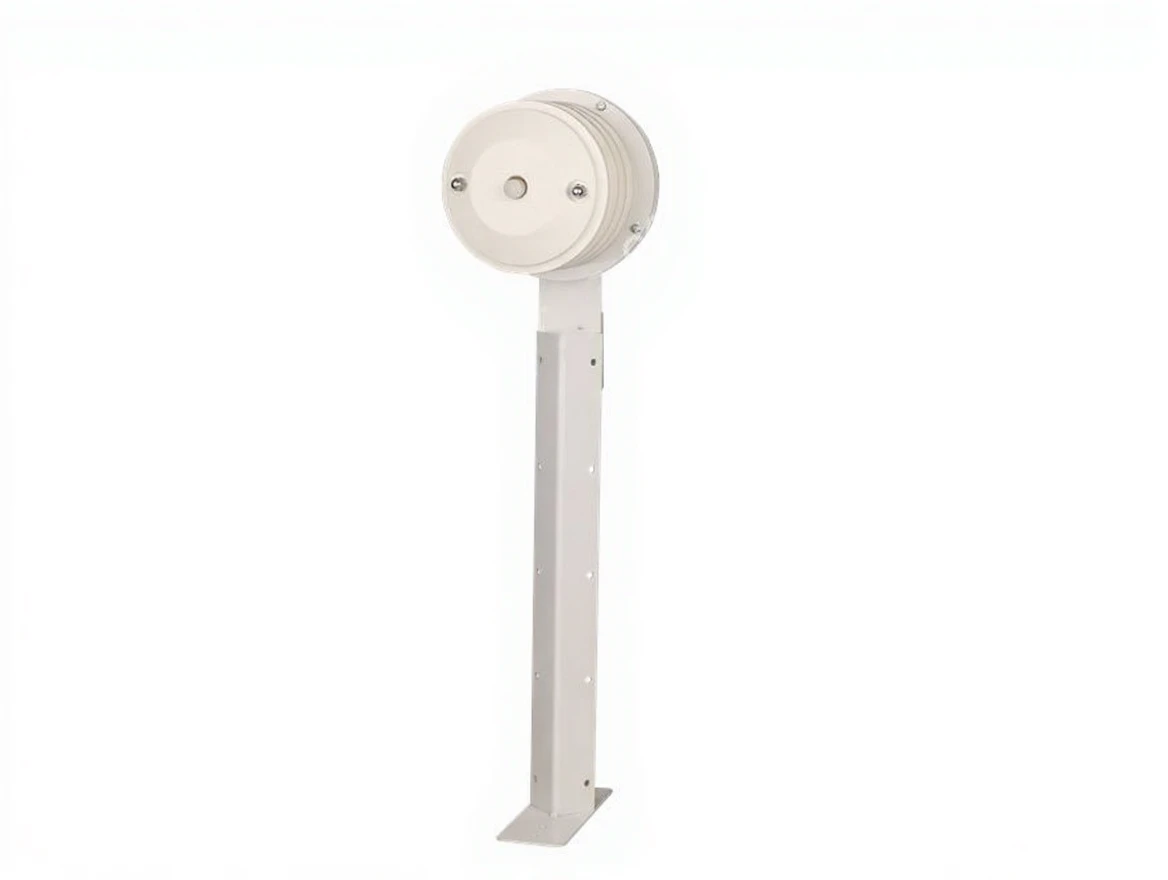

Outdoor Humidity and Temperature Station
| Brand | Endüstriyel |
|---|---|
| Model Type |
EE-WS-01 |
• Thanks to its mechanical structure, it is resistant to adverse weather conditions.
• It can be used in any system requiring outdoor temperature and humidity measurement.
• In Silo Temperature Control Systems; it allows to interpret whether the silo ventilation system should be activated/deactivated. For example; in cases where the probability of rain is high, by informing the operator or Automatic Control Mechanism in SCADA/PLC systems, it prevents humid air from being given into the silo. Thus, it ensures the protection of the product in the silo against biological deterioration.
• It can be connected to PLC – SCADA system
• The device provides ease of connection for easy installation
• On the device;
• 1 feeding unit (24V DC)
• 2 RS-485 (IN/OUT) input and output unit
• Addressing the device requires interference inside the device box.
• Up to 7 devices can be addressed at most.
Technical Specifications
Product Code: EE-WS-01
Operating Voltage 24V DC
Communication Type RS-485 (2 IN/OUT)
Communication Protection Element Optocoupler
Communication Protocol Modbus-RTU
Operating Temperature –20 °C / 85 °C (Outdoor)
Temperature Sensor Measurement Range –40 °C / 125 °C
Temperature Sensor Measurement Tolerance +/-0.3 °C
Humidity Sensor Measurement Range %0 – %100
Humidity Sensor Measurement Tolerance +/-2
Mounting Type Vertical Surface Mount
