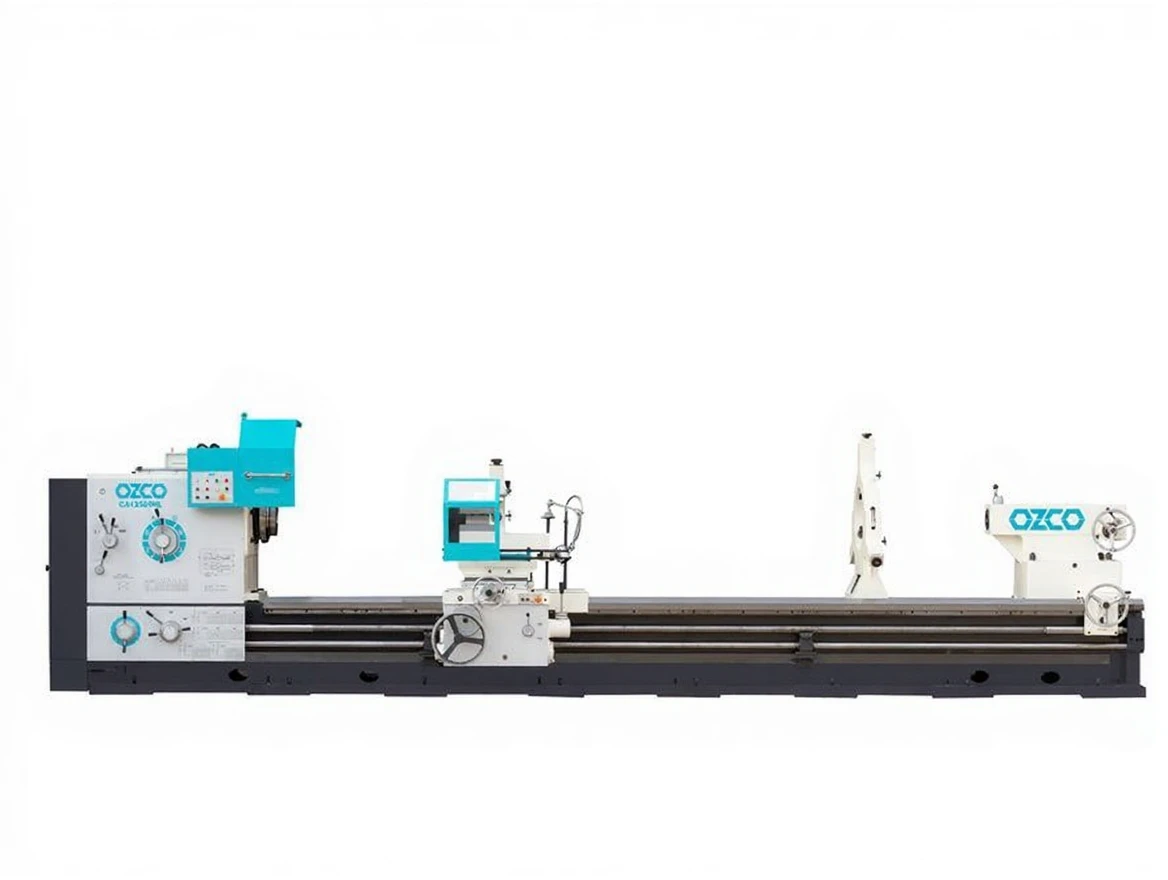

Ozco CA16060HL Heavy Duty Lathe Machine
| Brand | Ozco |
|---|---|
| Model Type |
CA16060HL |
Description
| Motor Power | 22 kW, 400 V |
|---|---|
| Table Diameter | 1600 mm |
| Carriage Diameter | 1250 mm |
| Table Width | 755 mm |
| Distance Between Centers | 6000 mm |
| Maximum Load Capacity | 6000 kg |
| Speed | 3.15-315 (forward) / 3.5-291 (reverse) rpm |
| Gears | 21 (forward) / 12 (reverse) |
| Spindle Nose | A2-15 |
| Spindle Diameter | 130 mm |
| Transversal Support Movement | 580 mm |
| Cross Support Movement | 300 mm |
| Quill Taper | MK6 |
| Quill Diameter | 160 mm |
| Quill Movement | 300 mm |
| Linear Feed | [ PHONE HIDDEN ] steps) mm/rev |
| Transversal Feed | [ PHONE HIDDEN ] steps) mm/rev |
| Metric Leadscrew and Pitch | 1-120 (44 steps) mm |
| Imperial Leadscrew and Pitch | [ PHONE HIDDEN ] steps) |
| Module Leadscrew and Pitch | [ PHONE HIDDEN ] steps) |
| Diametral Leadscrew and Pitch | [ PHONE HIDDEN ] steps) |
| Tool Post Size (max.) | 45×45 mm |
| Machine Dimension | 9100x2150x2150 mm |
| Weight | 17,400 kg |
- Turcite-B coated carriage
- Hardened and ground guideways
- Powerful 755 mm width bed
- Guideways with HRC48 hardness
- Compliant with CE standards
- Mechanical clutch system
- Heavy, monoblock casting
- Joystick for easy movement
- Lighting system
- Cooling unit
- Chuck guard and toolpost cover
