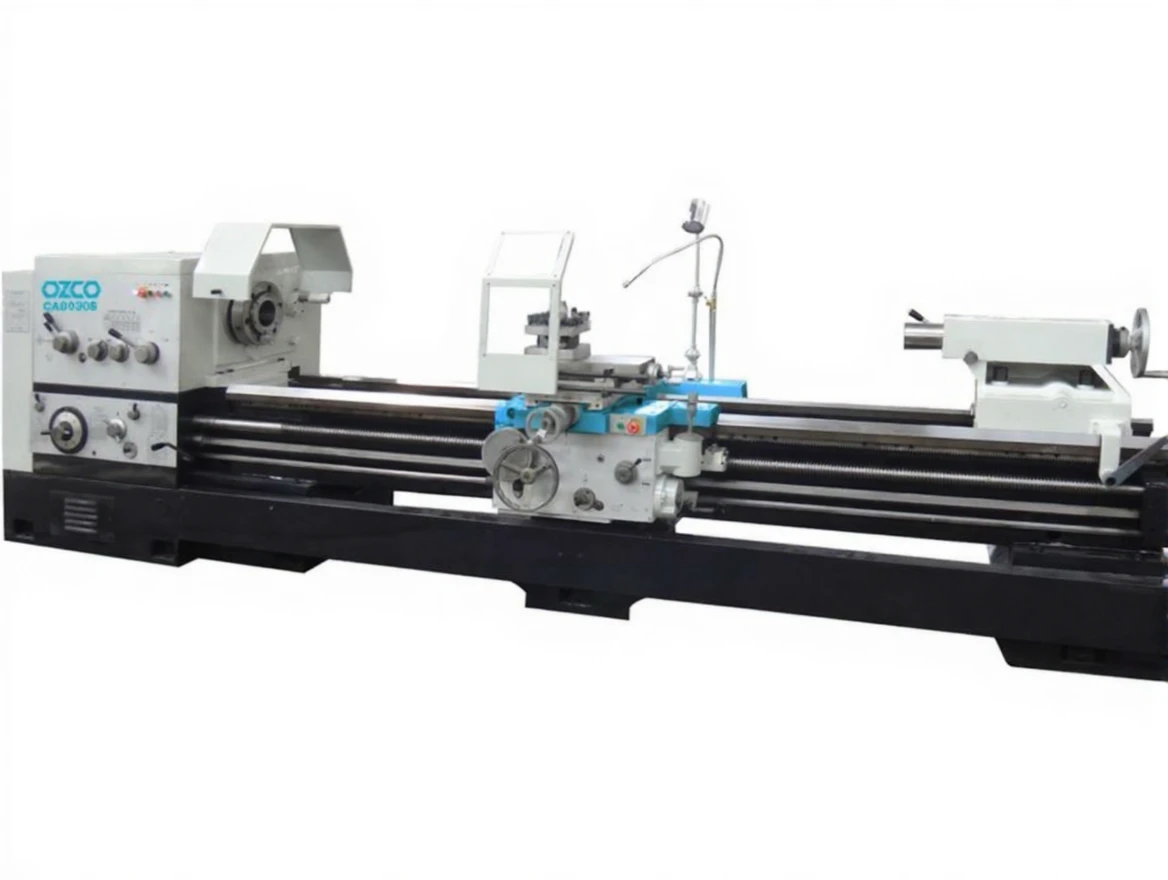

Ozco CA8030S Universal Diameter Lathe Machine
| Brand | Ozco |
|---|---|
| Model Type |
CA8030S |
Description
| Motor Power | 11 kW, 400 V |
|---|---|
| Table Diameter | 800 mm |
| Bridge Diameter | 1000 mm |
| Carriage Diameter | 520 mm |
| Table Width | 550 mm |
| Distance Between Centers | 3000 mm |
| Maximum Load Capacity | 1500 kg |
| Speed | 6-8000 rpm |
| Gear | 18 |
| Spindle Nose Taper | MK6 |
| Spindle End | C11 |
| Spindle Diameter | 100 / 140 mm on L models |
| Cross Support Movement | 440 mm |
| Transversal Support Movement | 200 mm |
| Traveling Tailstock Taper | MK5 |
| Traveling Tailstock Diameter | 100 mm |
| Traveling Tailstock Movement | 250 mm |
| Linear Feeds | 0.1-24.32;64 mm/rev |
| Transversal Feeds | [ PHONE HIDDEN ] mm/rev |
| Metric Thread Pitch | 1-240 mm |
| Inch Thread Pitch | 1-14 |
| Module Thread Pitch | 0.5-120 mm |
| Diametral Thread Pitch | 1-28 |
| Tool Holder Size (max.) | 32×32 mm |
| Machine Dimensions (WxDxH) | 5230x1470x1620 |
| Weight | 5350 kg |
- Complies with CE norms
- Mechanical clamping system / clutch
- Heavy-duty, solid cast iron machine table
- Joystick for easy movement
- Lighting system
- Cooling unit
- Tool rest and tailstock guard
- Foot brake
