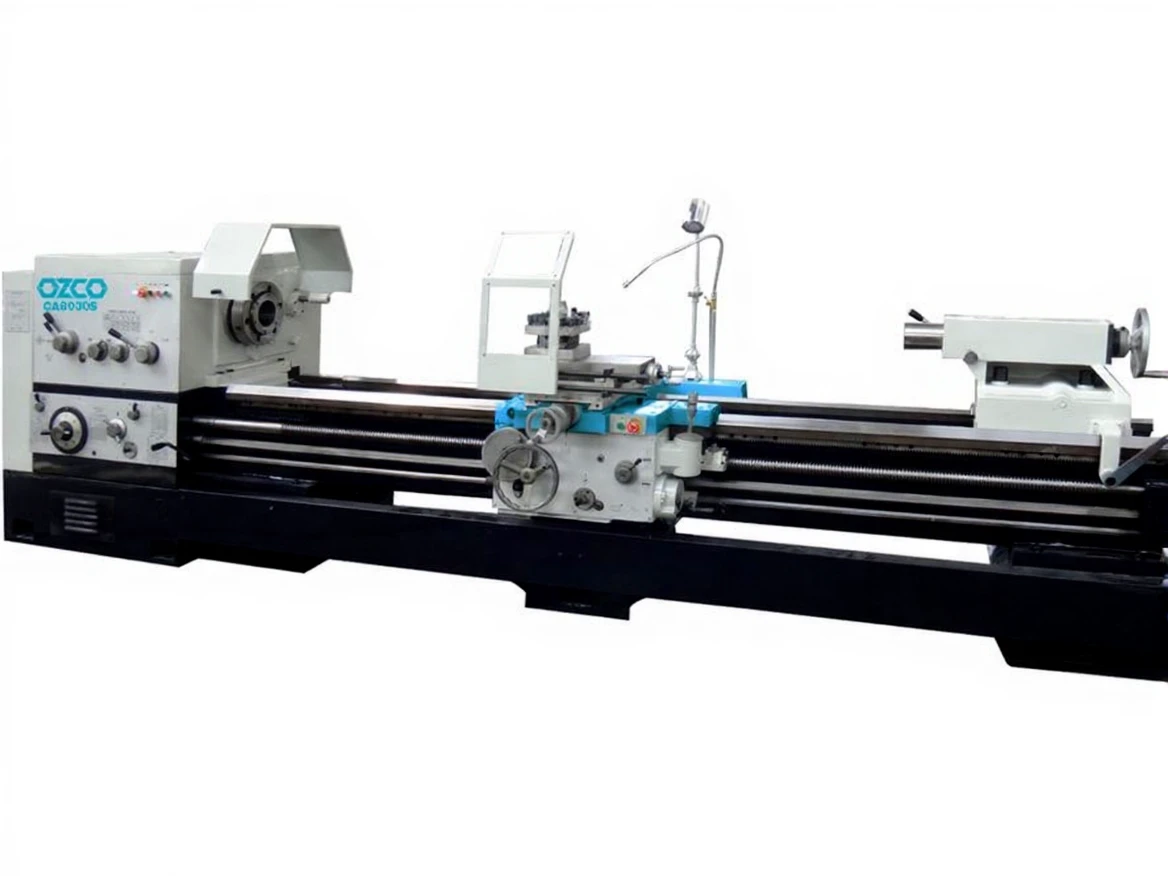

Ozco Ca8040s Universal Diameter Lathe Machine
| Brand | Ozco |
|---|---|
| Model Type |
CA8040S |
Description
| Motor Power | 11 kW, 400 V |
|---|---|
| Table Diameter | 800 mm |
| Bridge Diameter | 1000 mm |
| Carriage Diameter | 520 mm |
| Table Width | 550 mm |
| Distance Between Centers | 4000 mm |
| Maximum Load Capacity | 1500 kg |
| Speed | 6-800 rpm |
| Gears | 18 |
| Spindle Taper | MK6 |
| Spindle Nose | C11 |
| Spindle Diameter | 100 / 140 mm on L models |
| Longitudinal Support Movement | 440 mm |
| Transversal Support Movement | 200 mm |
| Roving Center Taper | MK5 |
| Roving Center Diameter | 100 mm |
| Roving Center Movement | 250 mm |
| Linear Feed | 0.1-24.32 ; 64 mm/rev |
| Cross Feed | [ PHONE HIDDEN ] mm/rev |
| Metric Pitch and Range | 1-240 mm |
| Inch Pitch and Range | 1-14 |
| Module Pitch and Range | 0.5-120 mm |
| Diametral Pitch and Range | 1-28 |
| Tool Size (max.) | 32×32 mm |
| Machine Size | 6230x1470x1620 mm |
| Weight | 5350 kg |
- Compliant with CE standards
- Mechanical clutch system
- Heavy-duty, single-piece cast iron machine table
- Joystick for easy movement
- Lighting system
- Cooling unit
- Tool holder and splash guard
- Foot brake
