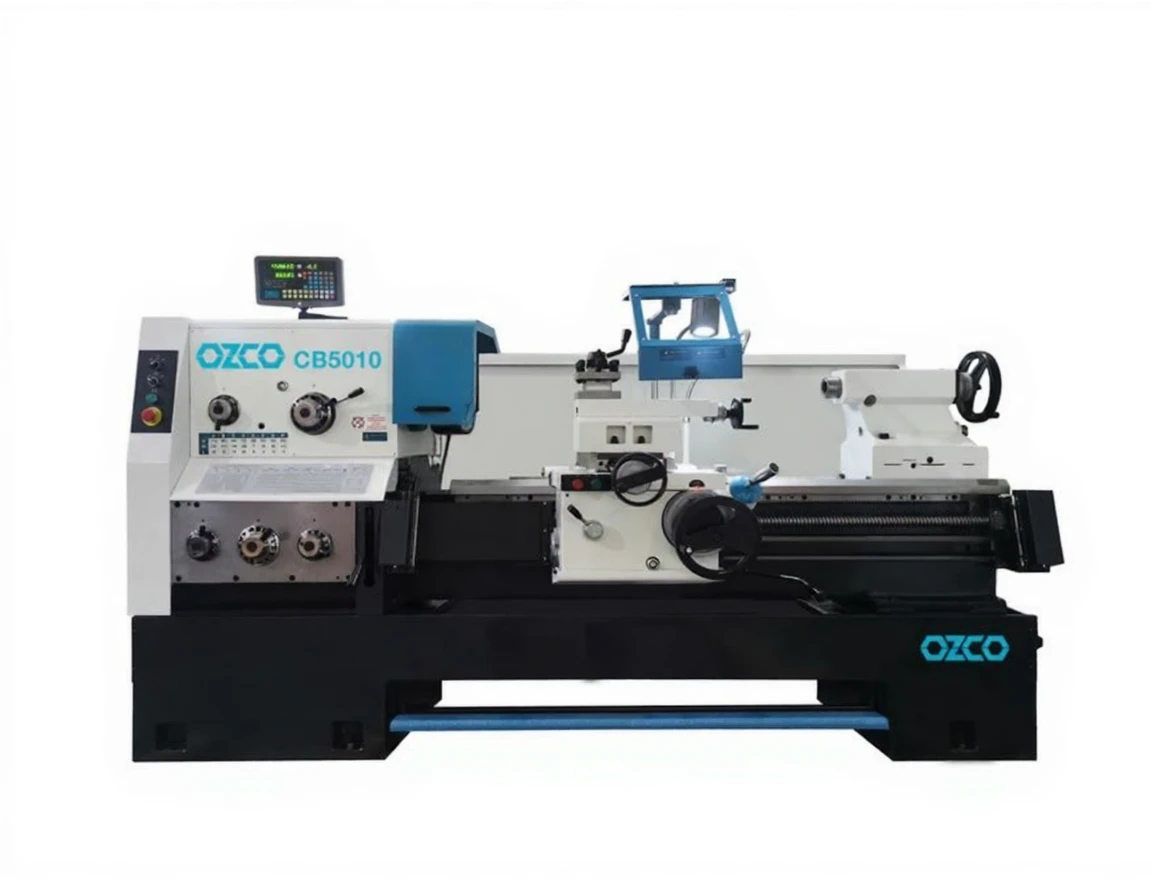

Ozco Cb5010 Universal Lathe Machine
| Brand | Ozco |
|---|---|
| Model Type |
CB5010 |
Description
| Motor Power | 7.5 kW, 400 V |
|---|---|
| Table Diameter | 500 mm |
| Bridge Diameter | 710 mm |
| Carriage Diameter | 300 mm |
| Table Width | 390 mm |
| Distance Between Centers | 1000 mm |
| Maximum Material Capacity | With Mirror 300 kg, With Mirror+Steady Rest 400 kg |
| Speed | 9-1600 rpm |
| Gear Steps | 24 |
| Spindle Taper | MK6 |
| Spindle Nose | D8 |
| Spindle Diameter | 82 mm |
| Longitudinal Support Movement | 340 mm |
| Transversal Support Movement | 150 mm |
| Steady Rest Taper | MK5 |
| Steady Rest Diameter | 75 mm |
| Steady Rest Movement | 150 mm |
| Longitudinal Feed | [ PHONE HIDDEN ] mm/rev |
| Transversal Feed | [ PHONE HIDDEN ] mm/rev |
| Metric Thread Pitches | [ PHONE HIDDEN ] types) mm |
| Imperial Thread Pitches | 72/1-8 TPI (46 types) |
| Module Thread Pitches | [ PHONE HIDDEN ] types) |
| Diametral Thread Pitches | 56-1/4 DP (45 types) |
| Tool Post Size | 25×25 mm |
| Machine Dimensions (WxDxH) | 2500x1150x1300 rpm |
| Packaging Dimensions | 2750x1120x1940 mm |
| Weight | 2100 kg |
| Gross Weight | 2540 kg |
Complies with CE standards
• Mechanical clutch system
• Siemens electrical system
• Safety chuck guard
• Joystick for easy movement
• Lighting system
• Cooling unit
• Foot brake
