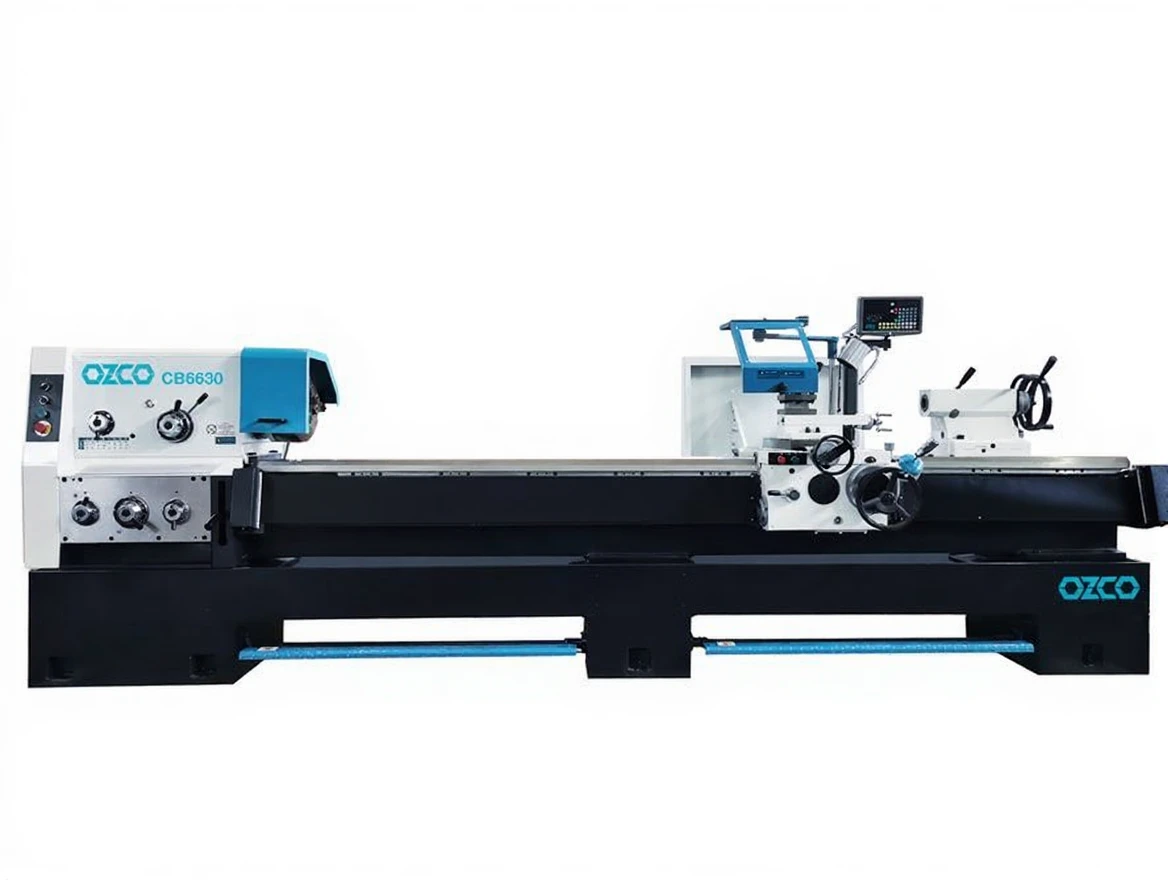

Ozco CB6630 Universal Lathe Machine
| Brand | Ozco |
|---|---|
| Model Type |
CB6630 |
Description
| Motor Power | 11 kW, 400 V |
|---|---|
| Over Bed Diameter | 660 mm |
| Bridge Width | 870 mm |
| Carriage Diameter | 430 mm |
| Bed Width | 390 mm |
| Center Distance | 240 |
| Distance Between Centers | 3000 mm |
| Maximum Material Capacity | With steady rest 350 kg, With steady rest + Follow rest 450 kg |
| Speed | 6-1120 rpm |
| Gears | 24 |
| Spindle Taper | 1:20 |
| Spindle Nose | D8 |
| Spindle Diameter | 105 mm |
| Longitudinal Support Movement | 360 mm |
| Cross Support Movement | 200 mm |
| Follow Rest Taper | MK5 |
| Follow Rest Diameter | 75 mm |
| Follow Rest Movement | 150 mm |
| Longitudinal Feed | [ PHONE HIDDEN ] mm/rev |
| Cross Feed | [ PHONE HIDDEN ] mm/rev |
| Metric Thread and Range | 1-224 (46 types) mm |
| Inch Thread and Range | 28/1-8 TPI (42 types) |
| Module Thread Range | [ PHONE HIDDEN ] types) |
| Diametral Thread Range | 56-1/4 DP (45 types) |
| Tool Post Size | 25×25 mm |
| Machine Dimensions (LxWxH) | 4500x1250x1400 mm |
| Packaging Dimensions | 4770x1120x1940 mm |
| Net Weight | 3400 kg |
| Gross Weight | 4200 kg |
• Compliant with CE standards
• Mechanical clutch system
• Schneider electrical system
• Safety switch mirror shield
• Joystick for easy movement
• Hardened and ground precision slides
• Special design lubrication system
• Foot brake
