Ozco CB8030 Universal Lathe Machine
| Brand | Ozco |
|---|---|
| Model Type |
CB8030 |

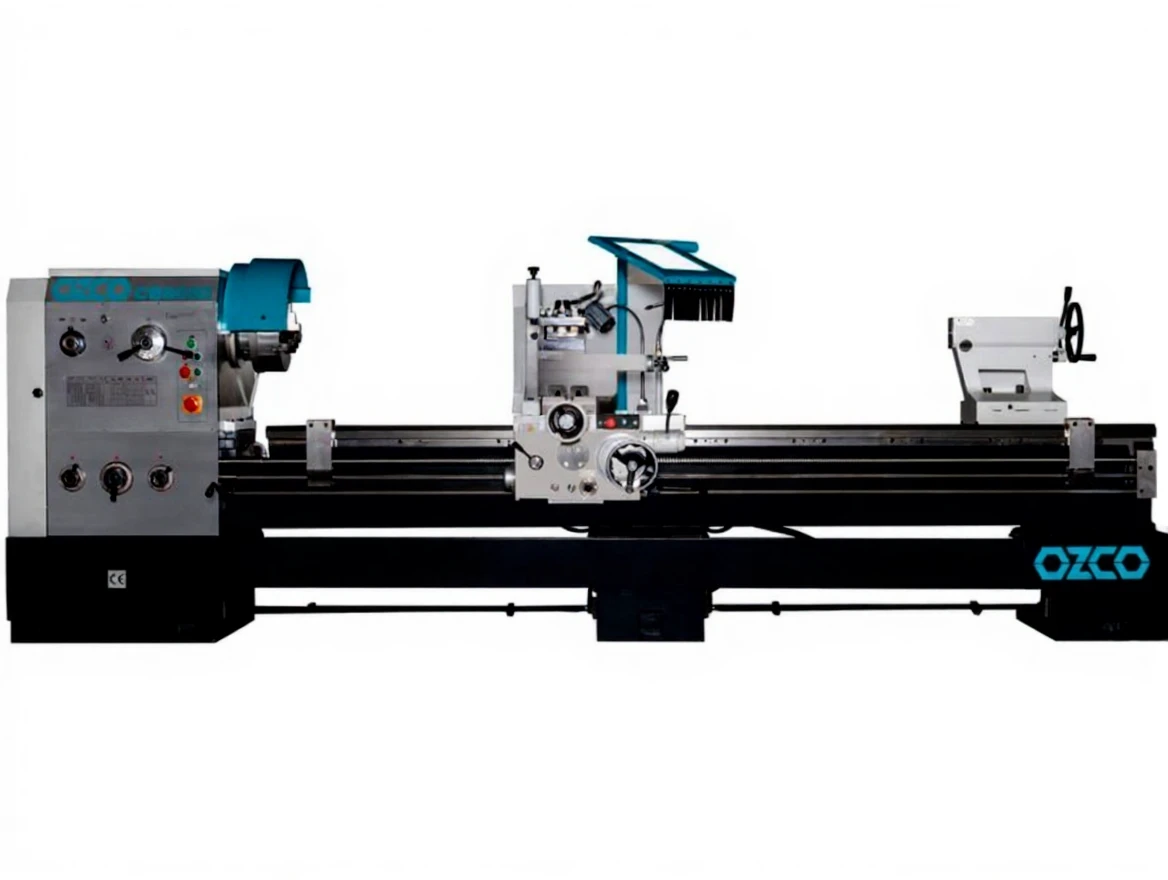

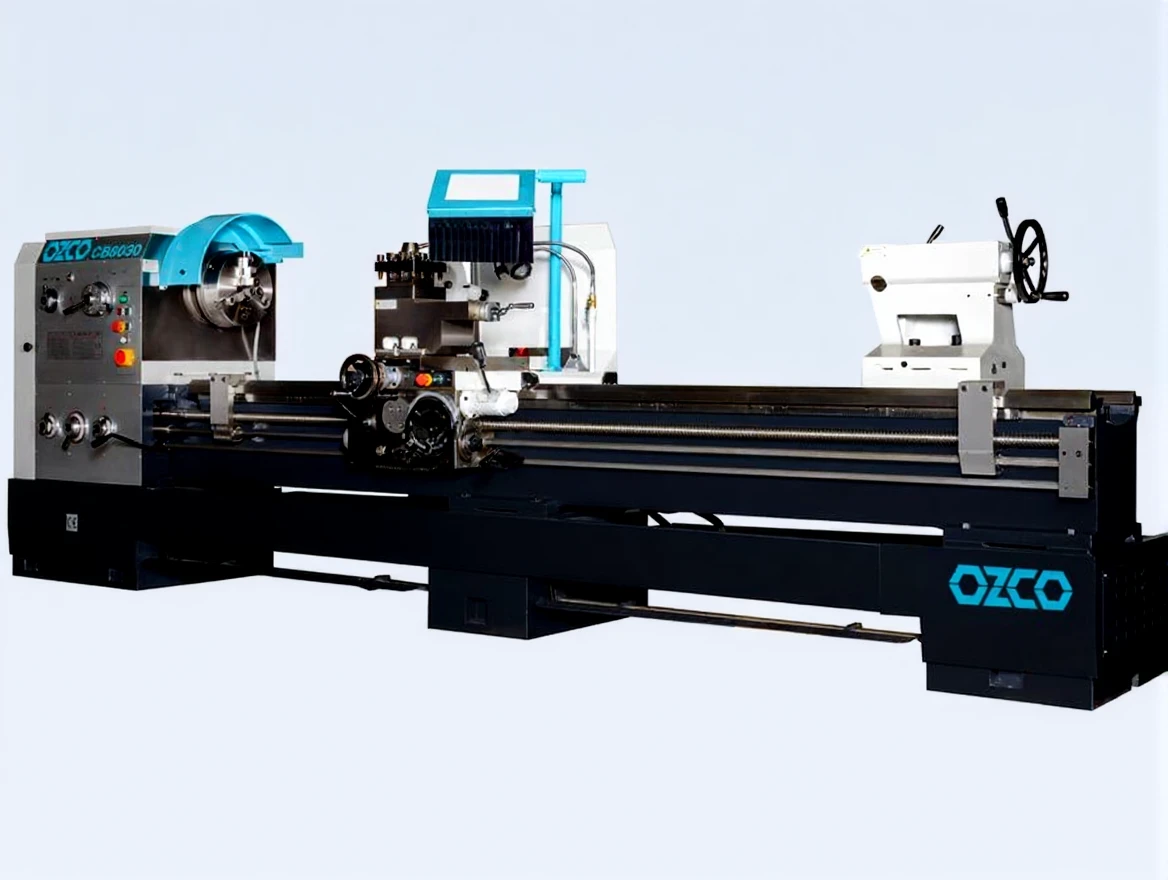

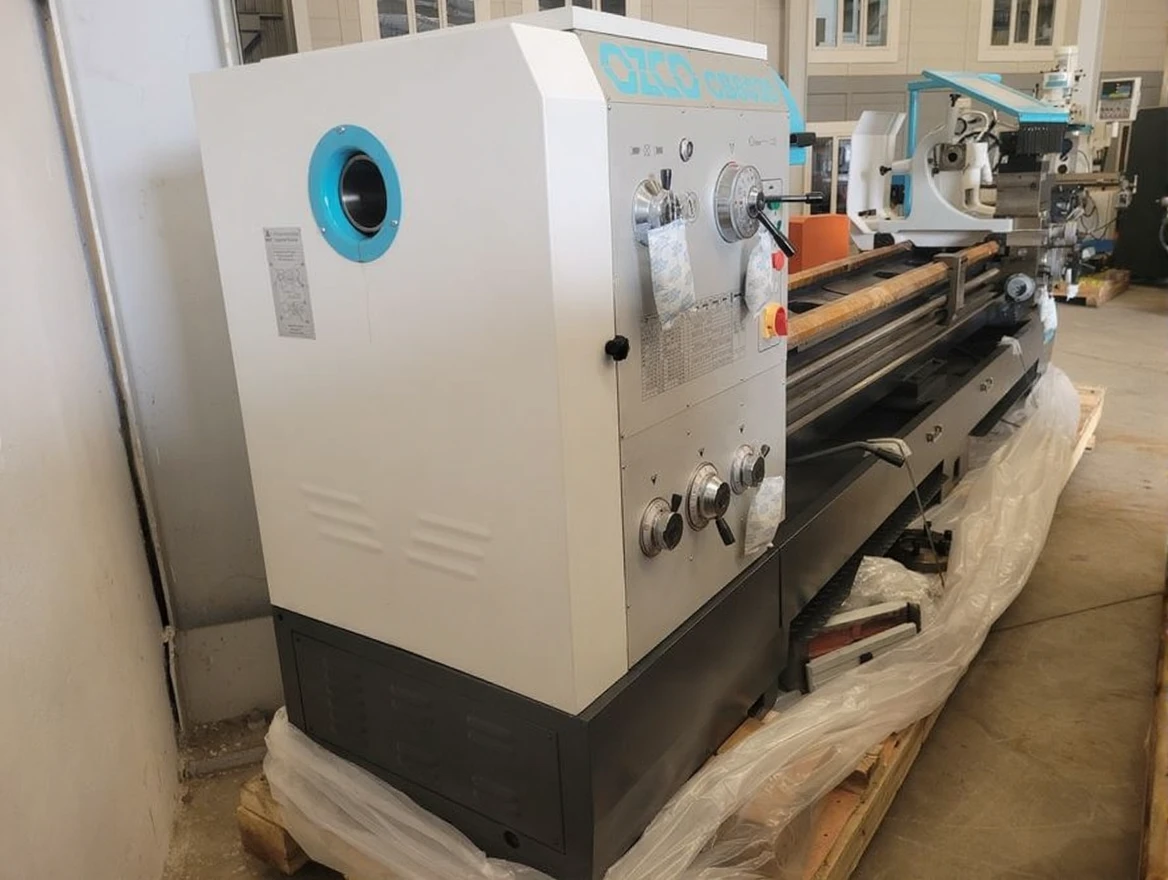

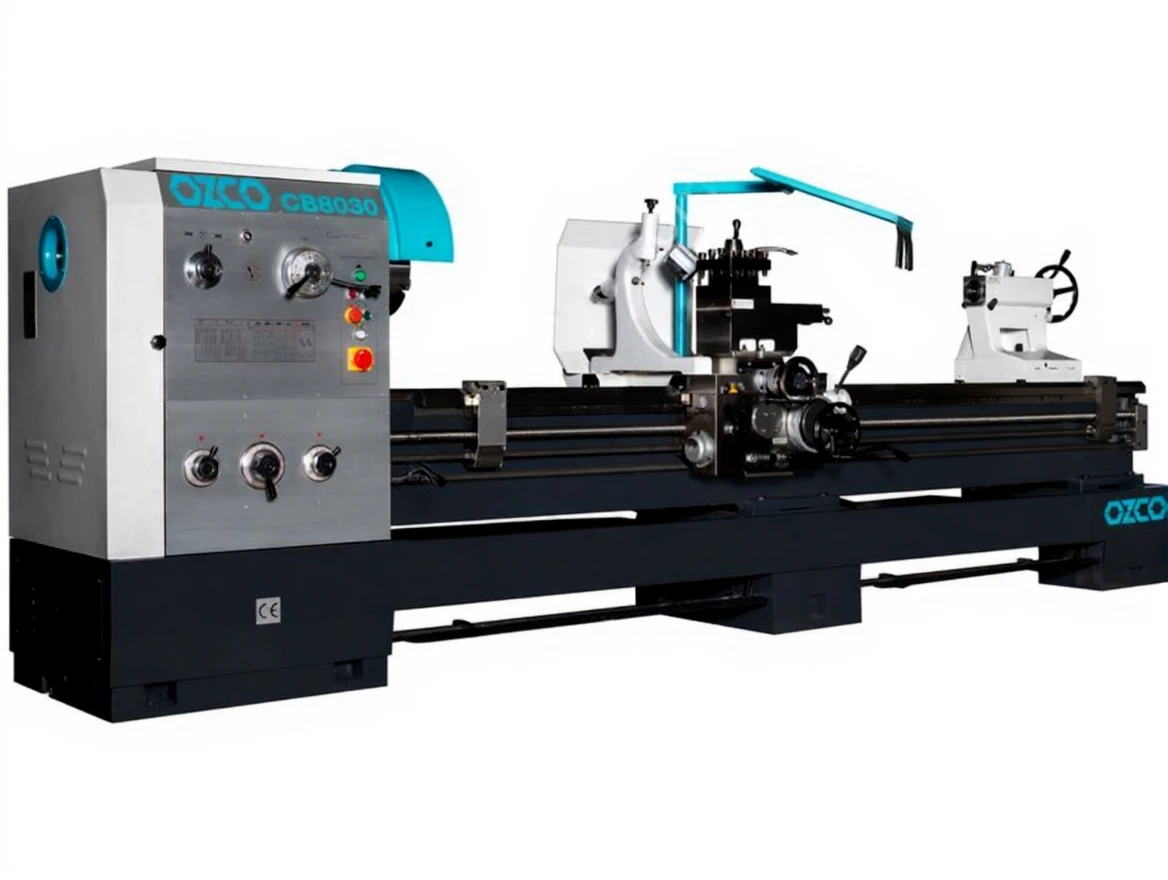

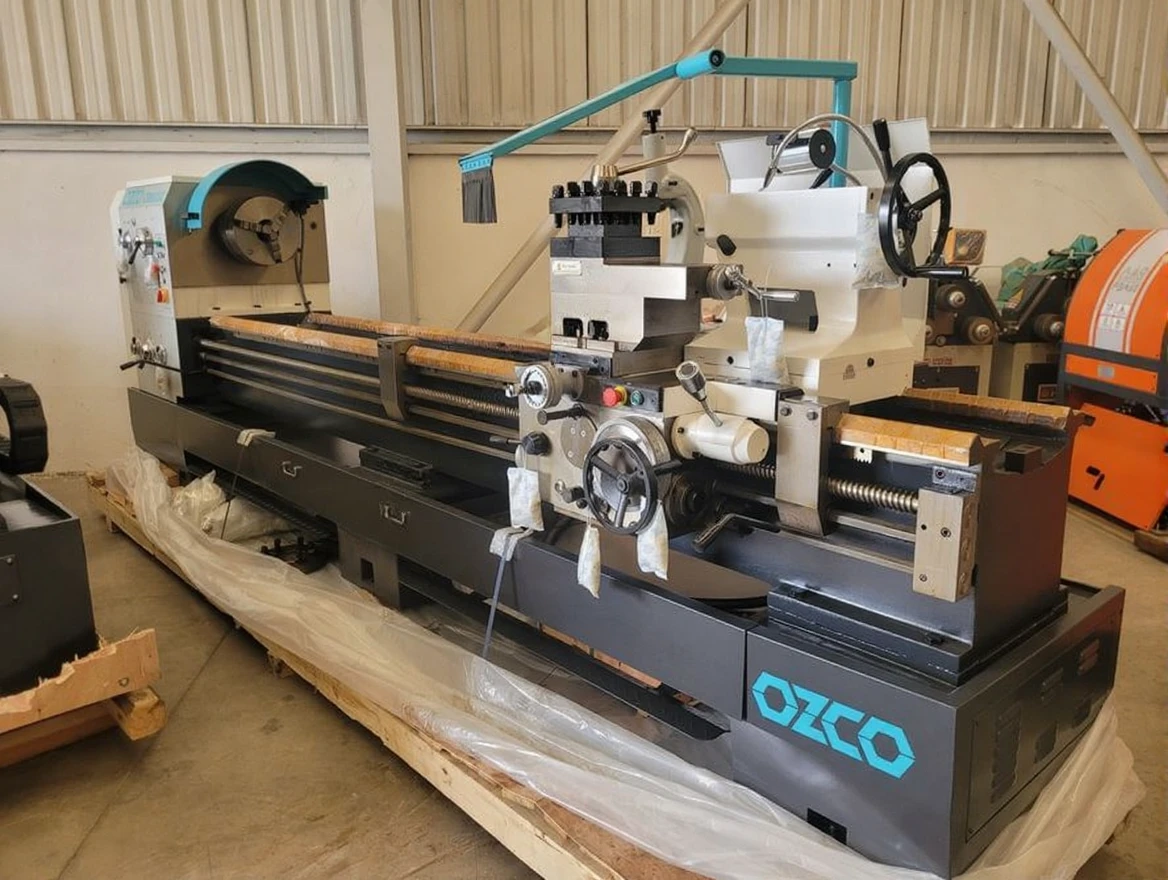

OZCO CB8030 Universal Lathe
OZCO CB8030 Universal Lathe Capacity
It has a bench top of 800 mm, a support top of 560 mm, and a bridge gap machining capacity of 1000 mm. The spindle bore is 105 mm, the distance between centers is 3000 mm
OZCO CB8030 Universal Lathe Shipment Scope

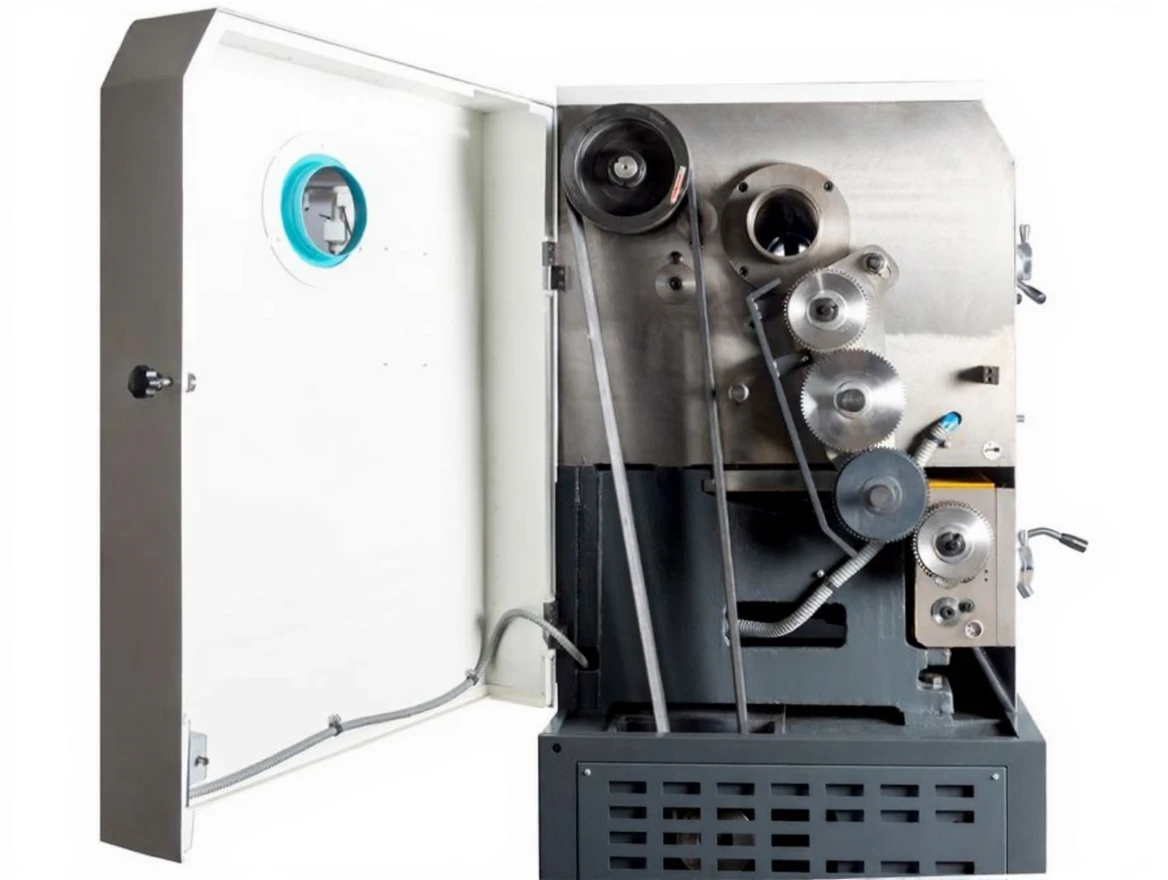

3-jaw chuck Ø 315 mm, 4-jaw chuck Ø 500 mm, Faceplate 500 mm, Fixed steady, Travelling steady, MK5 revolving center, MK5 dead center, Threading dial, 4-way tool post, Halogen lamp, Change gears, Foot brake, Chuck and tool post guard, Cooling system, Toolbox.
OZCO CB8030 Universal Lathe General Features

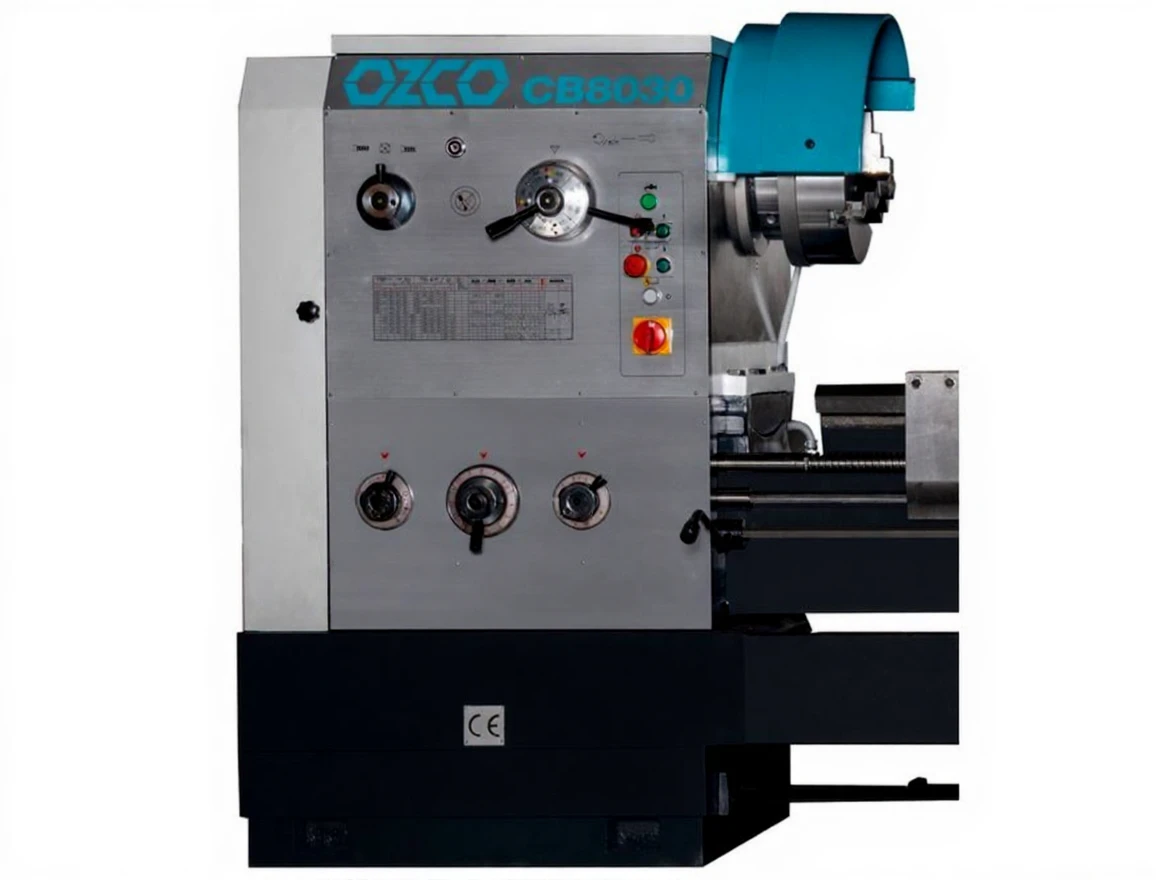

Compliant with CE standards, Mechanical clutch system, Emergency stop button, Safety chuck guard, Joystick for easy movement, SIEMENS electrical system, Cooling system and foot brake.
Technical Specifications OZCO CB8030 Universal Lathe
Motor Power 7.5 kW, 400 V

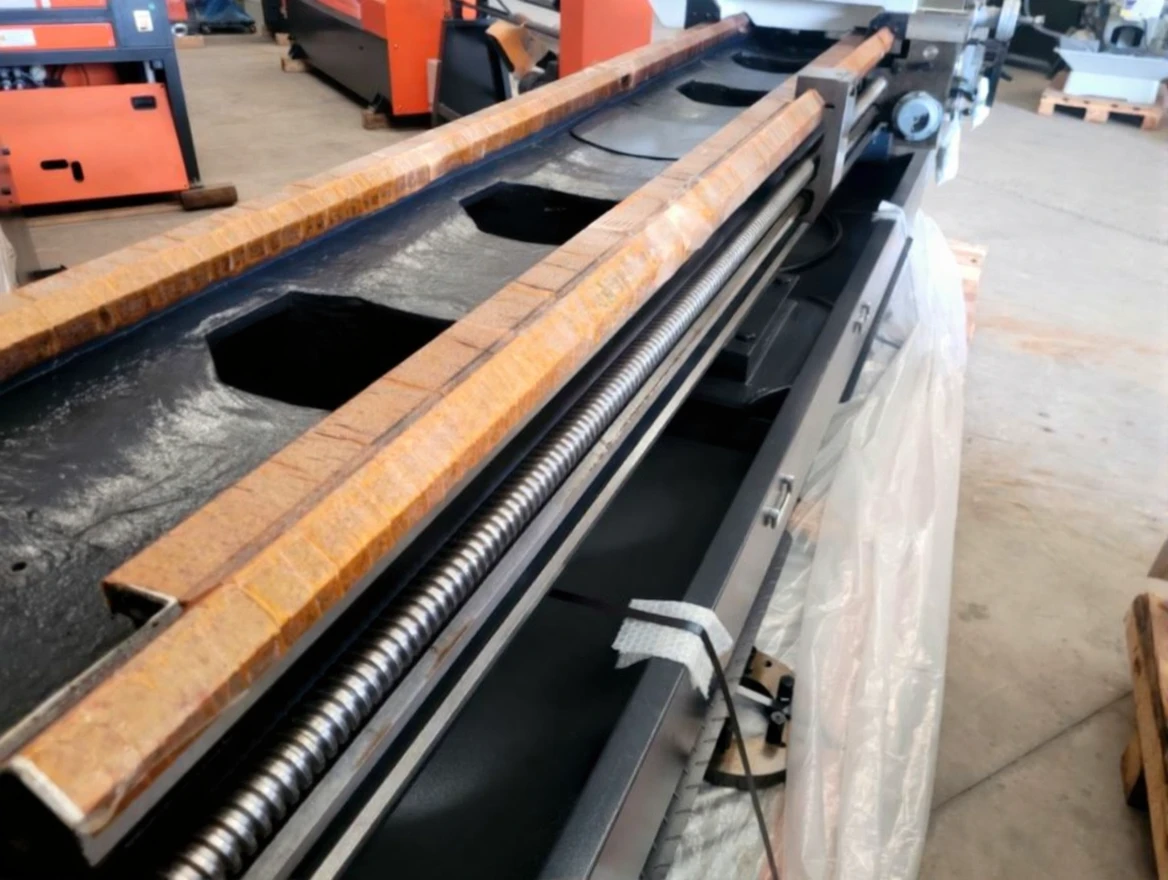

Bench Top Diameter 800 mm
Carriage Top Diameter 560 mm
Bench Width 510 mm
Distance Between Centers 3000 mm
Speed 30-1400 rpm
Gears 12
Spindle Taper MK-7
Spindle Nose D1-8
Spindle Bore Diameter 105 mm
Cross Slide Travel 320 mm
Compound Slide Travel 145 mm
Travelling Steady Taper MK5
Travelling Steady Diameter 75 mm
Travelling Steady Travel 150 mm
Longitudinal Feed [ PHONE HIDDEN ] mm/rev
Cross Feed [ PHONE HIDDEN ] mm/rev
Metric Thread Pitch 1-14mm (22 items)
Inch Thread Pitch 20-2 TPI (20 items)
Module Thread Pitch 0.5-7 (18 items)
Diametral Pitch 56-4 DP (24 items)

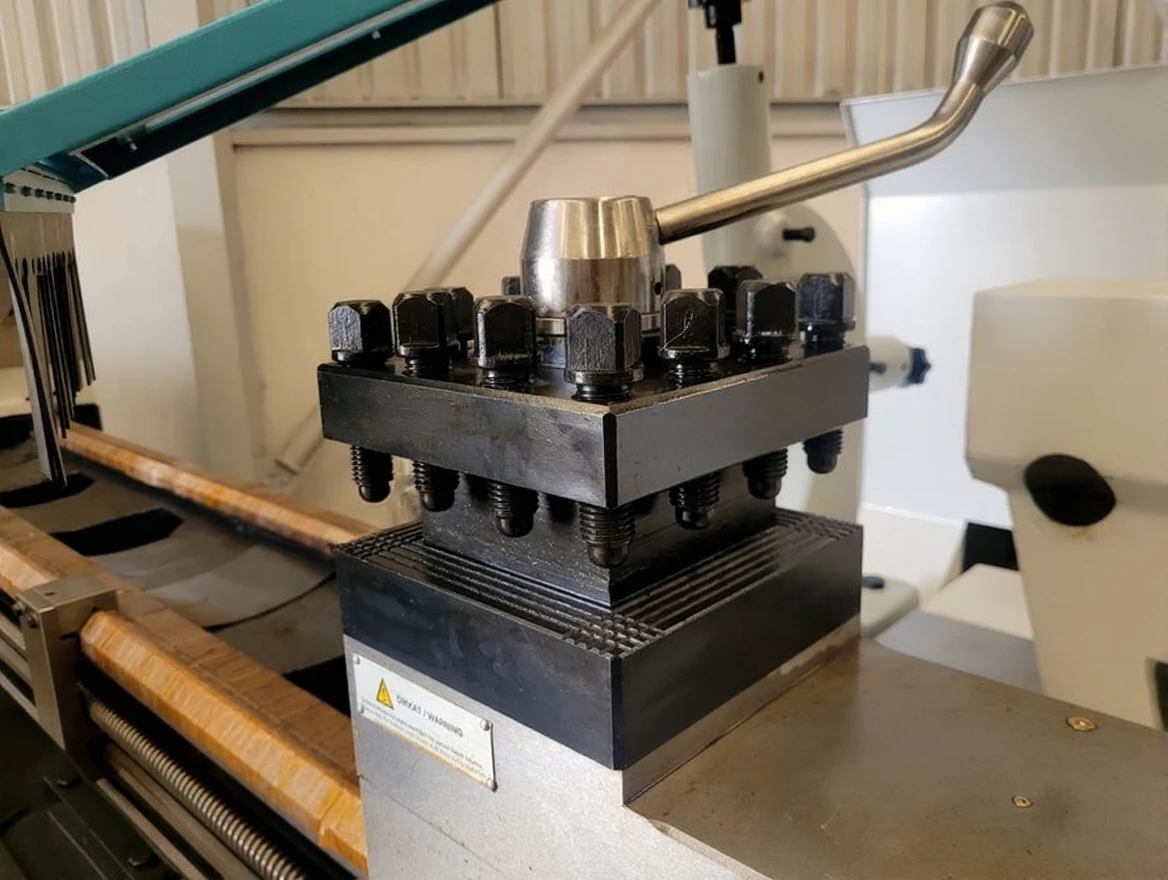

Tool Post Size 25×25 mm
Machine Dimensions (WxDxH) 4370x1350x1500 mm
Weight 3750 kg
