Ozco Cr3290 Dk Universal CNC Turning Center
| Brand | Ozco |
|---|---|
| Model Type |
Ozco 3290 DK |

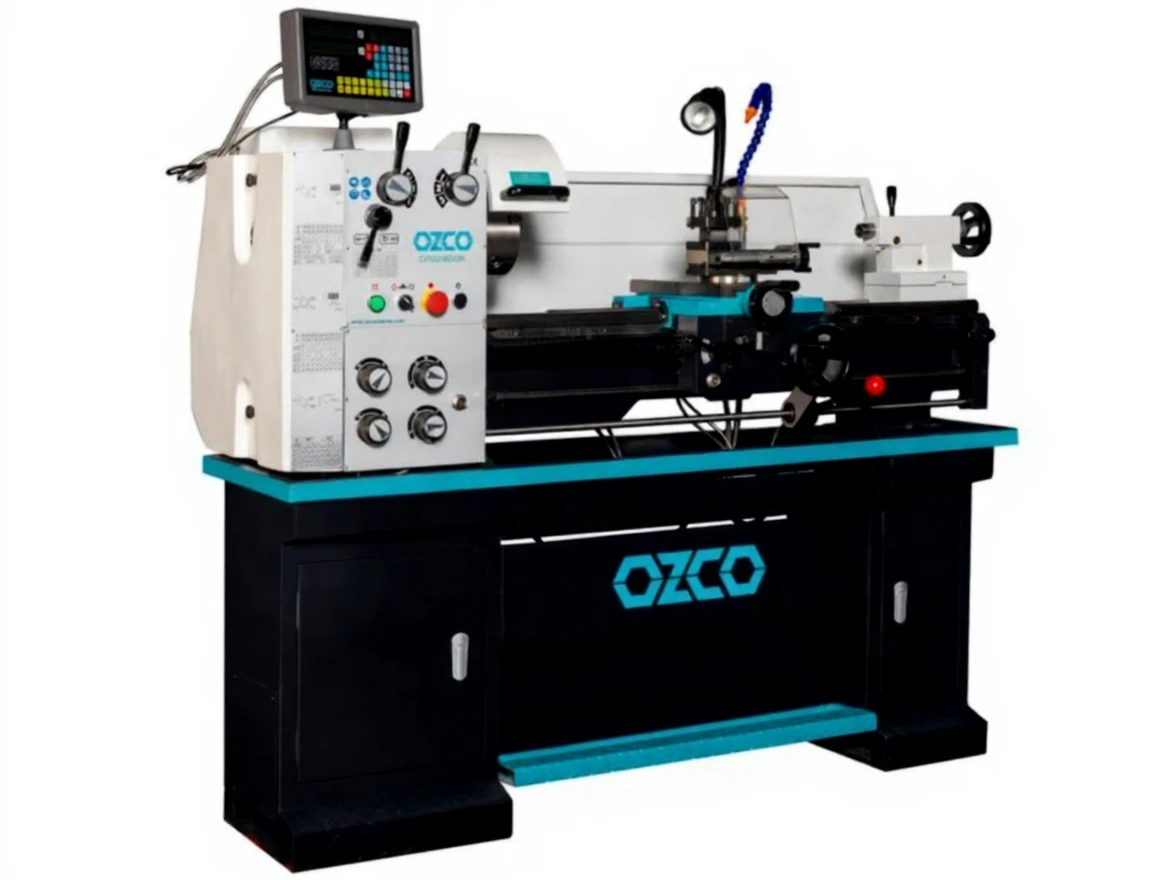

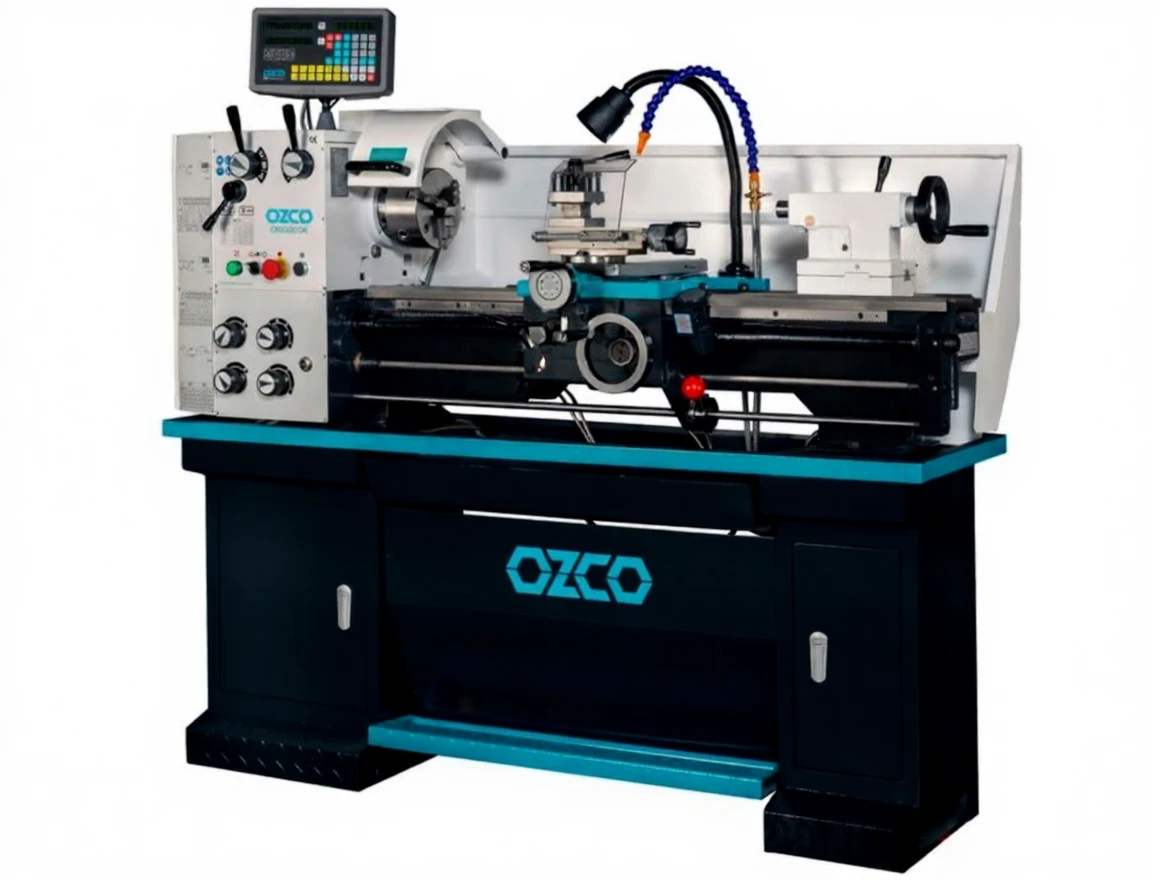

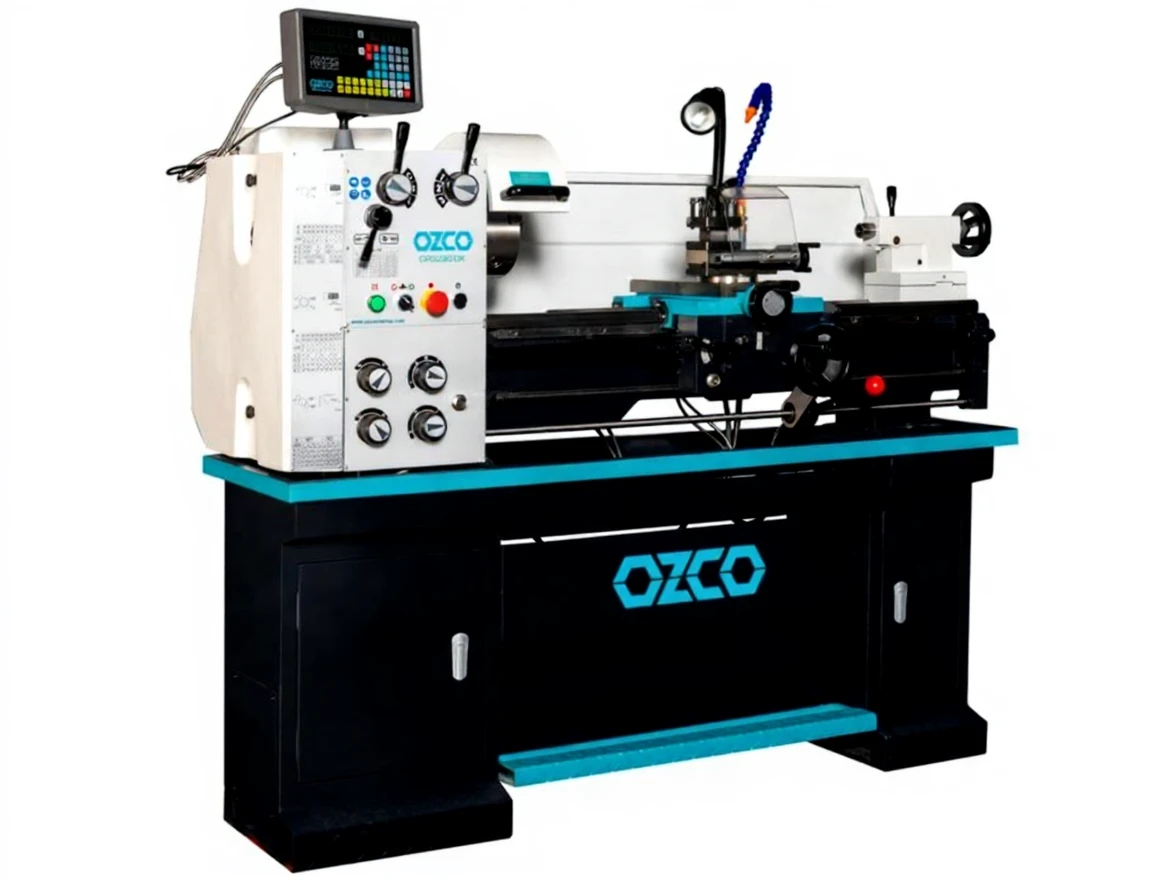

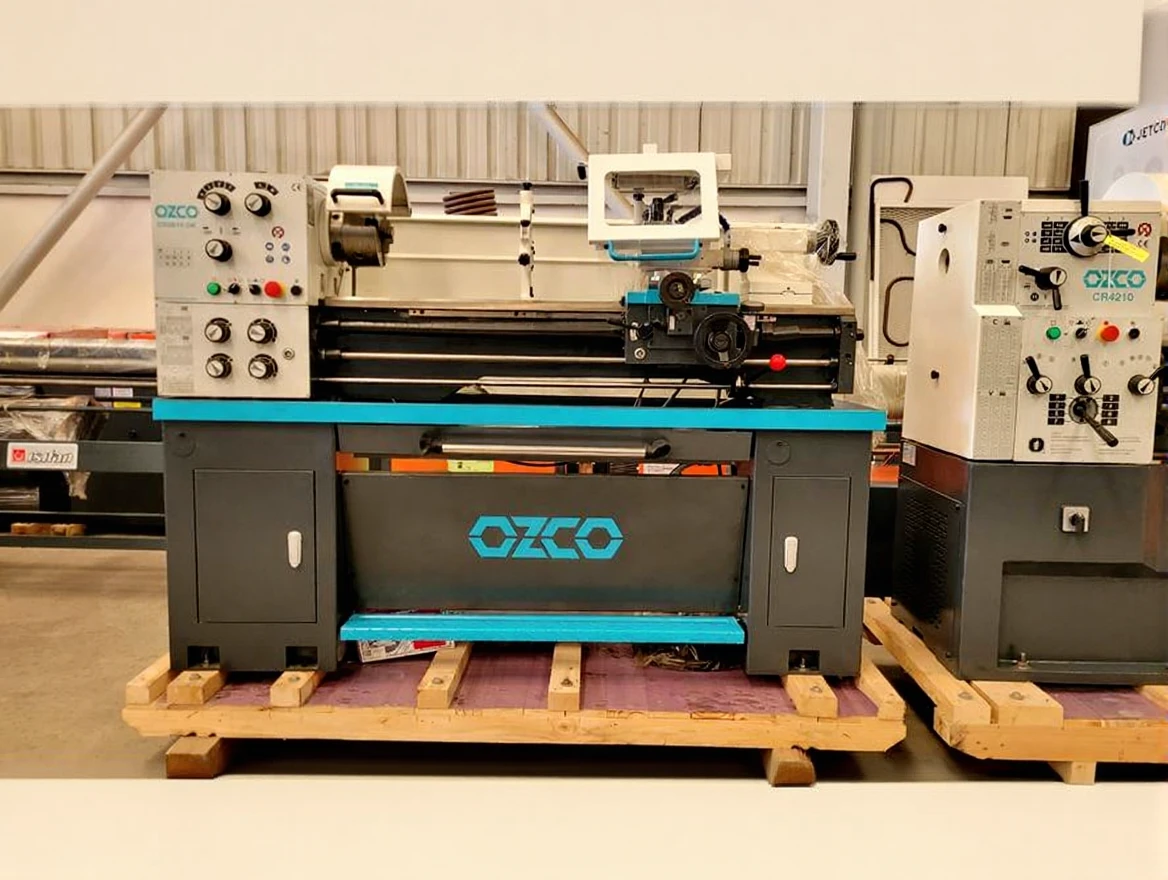

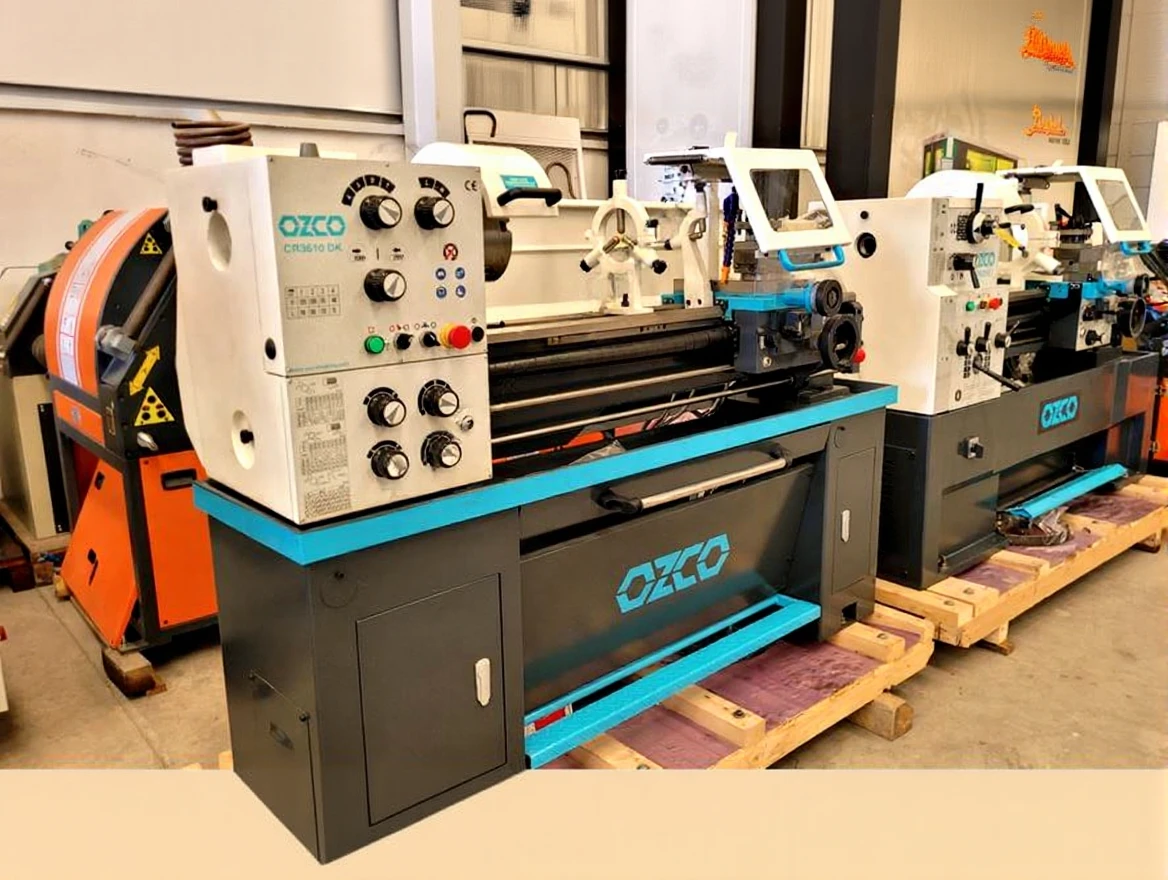

OZCO CR3290 DK Universal Lathe Machine
OZCO CR3290 DK Universal Lathe Capacity
It has a work capacity of 320mm on the bench, 190mm on the support, and 430mm in the bridge gap. It has a spindle bore of 38mm and a distance between centers of 920mm.

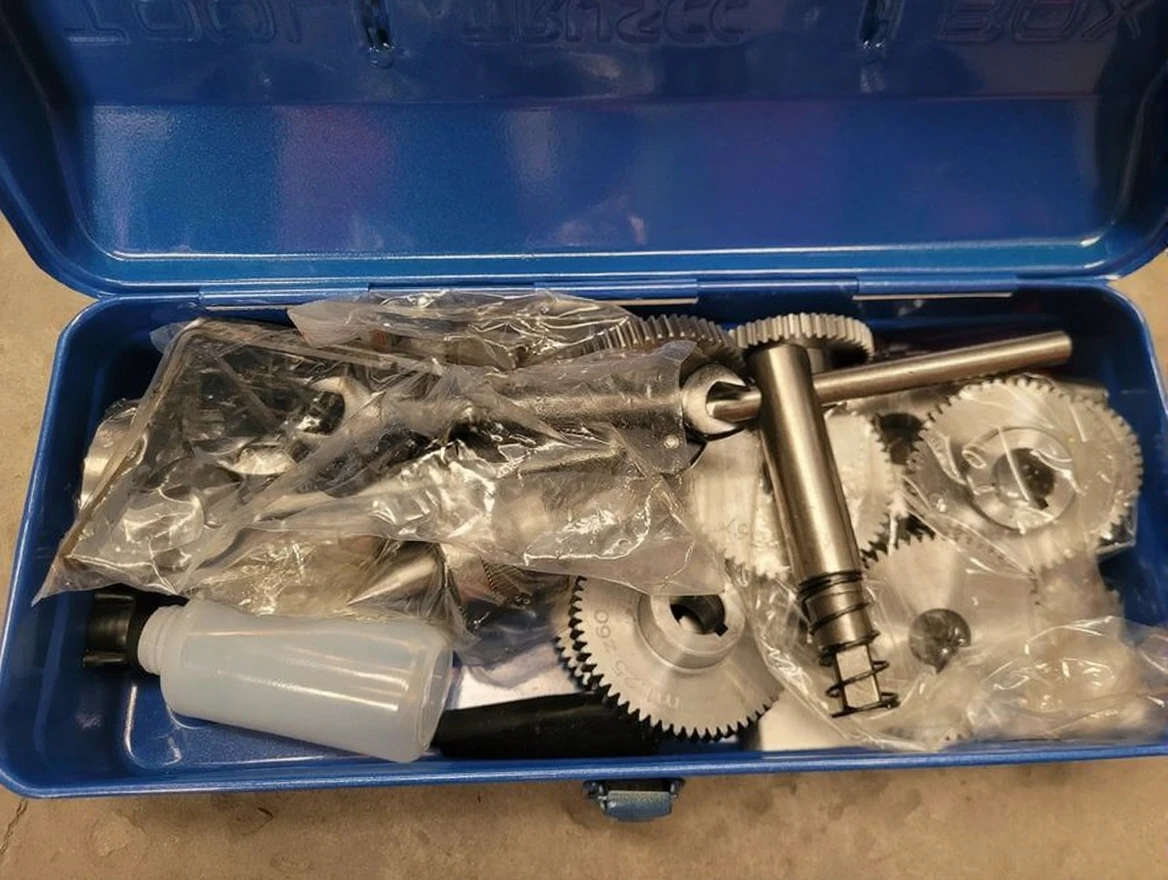

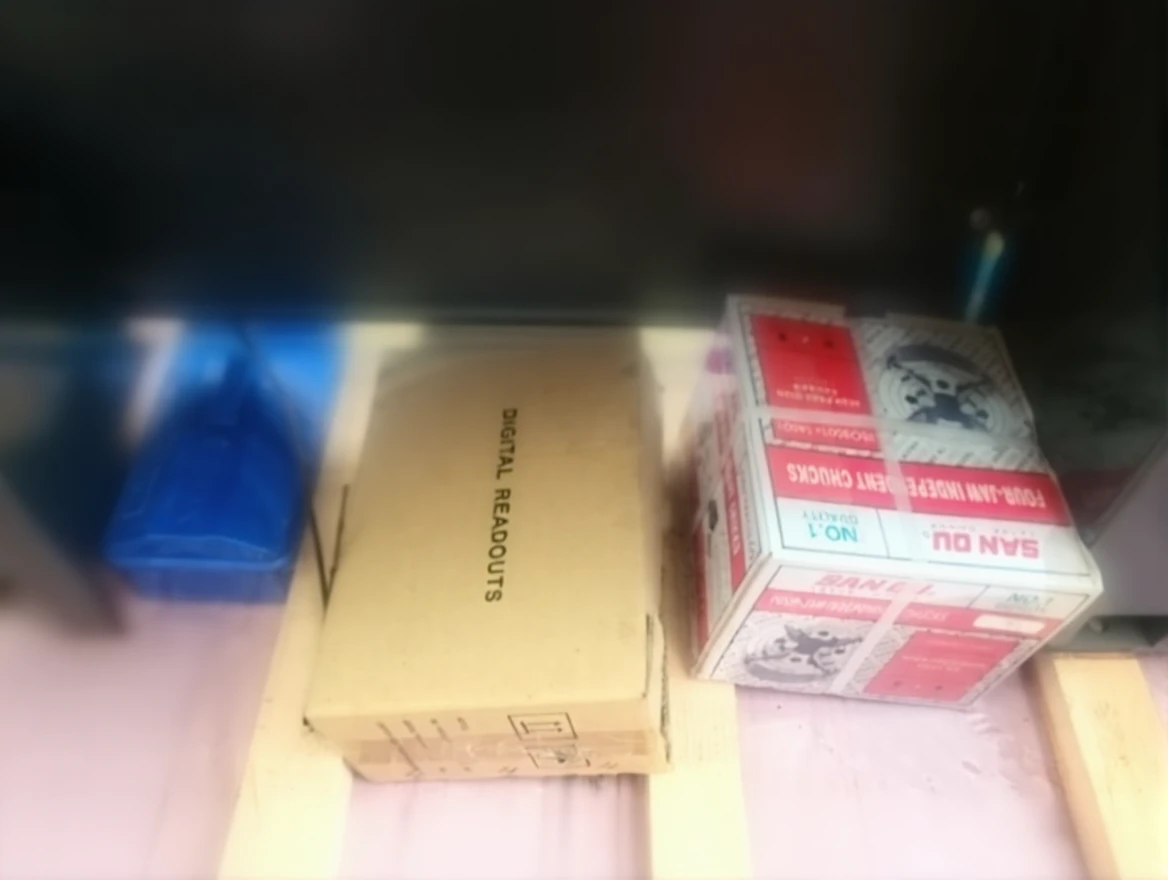

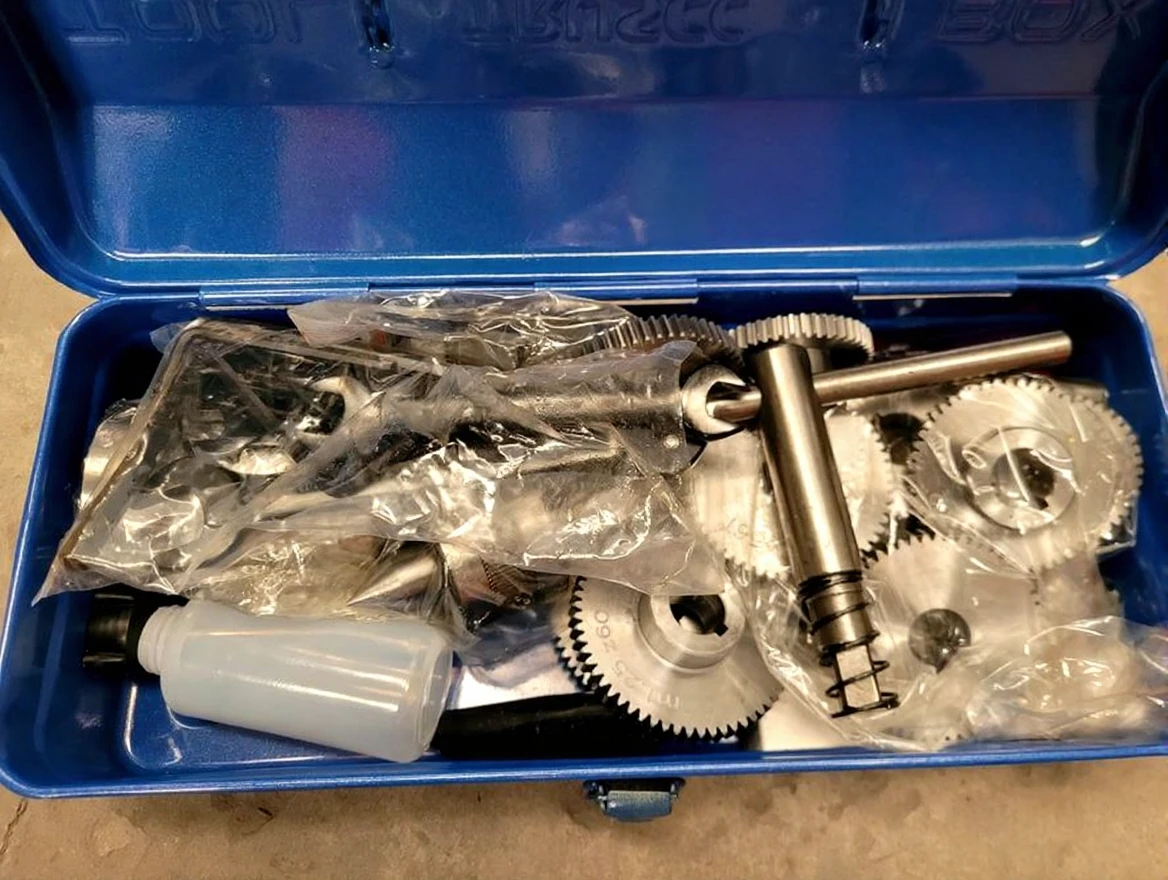

OZCO CR3290 DK Universal Lathe Shipping Scope
OZCO CR3290 DK Universal Lathe General Features
Technical Specifications OZCO CR3290 DK Universal Lathe

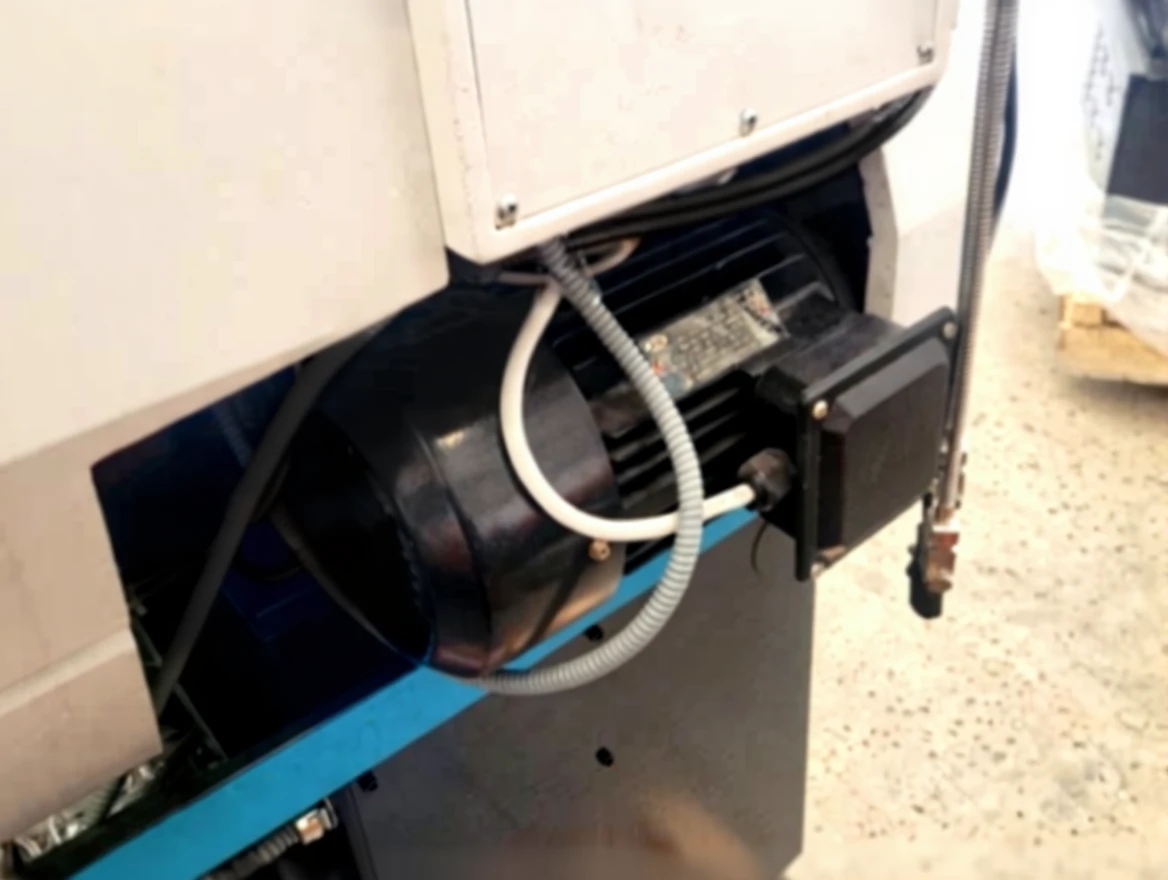

Motor Power 1.5 kW, 400 V
Bench Diameter 320 mm
Bridge Diameter 430 mm
Carriage Diameter 190 mm
Bench Width 181 mm
Distance Between Centers 920 mm
Speed 65-1800 rpm
Gears 18
Spindle Taper MK5
Spindle Nose D1-4
Spindle Bore 38 mm
Cross Support Movement 85 mm
Transverse Support Movement 162 mm
Traveling Center Taper MK3
Traveling Center Movement 100 mm
Linear Feed [ PHONE HIDDEN ] mm/rev
Transverse Feed [ PHONE HIDDEN ] mm/rev
Metric Thread and Pitch 0.4-7 mm
Inch Thread and Pitch 4-56 mm
Tool Holder Size 16×16 mm
Machine Dimensions (WxDxH) 1985x750x1320 rpm
Weight 410 kg
