Ozco Cr3610 Universal Lathe Machine

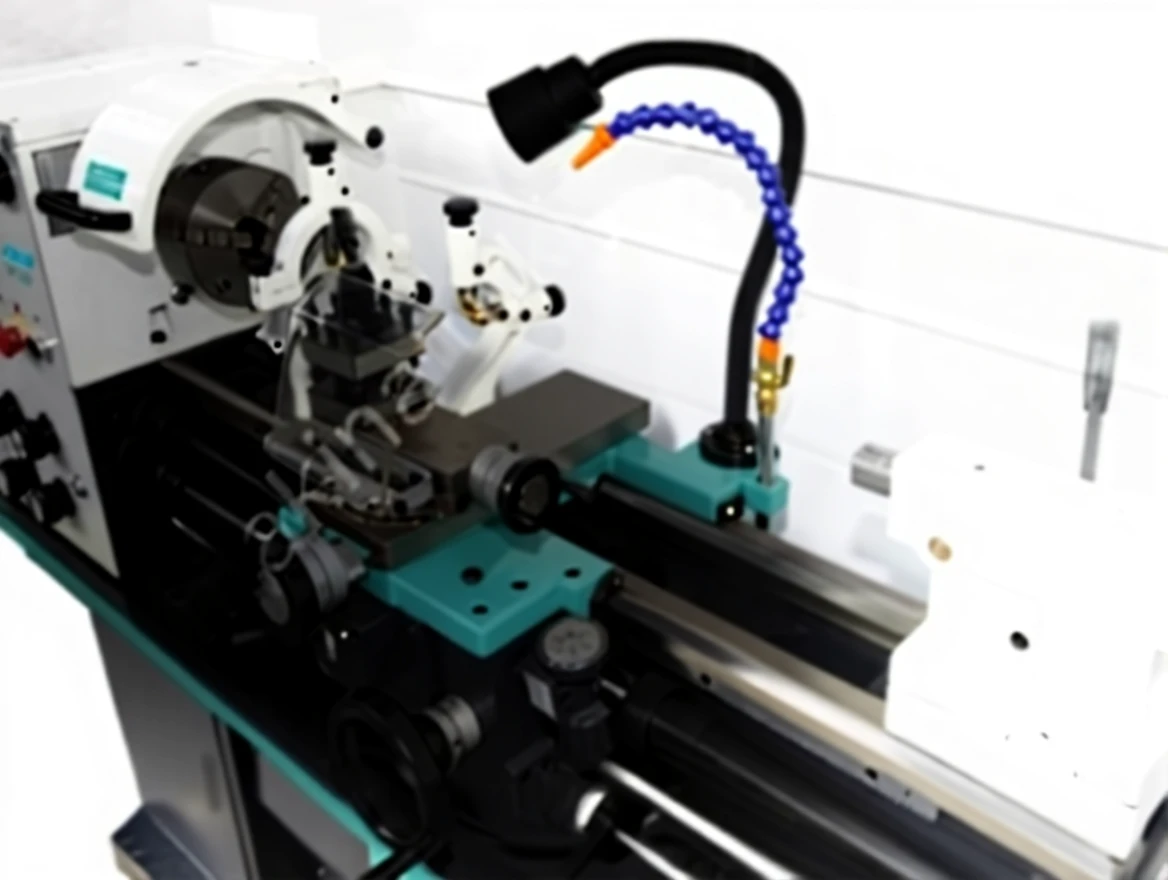

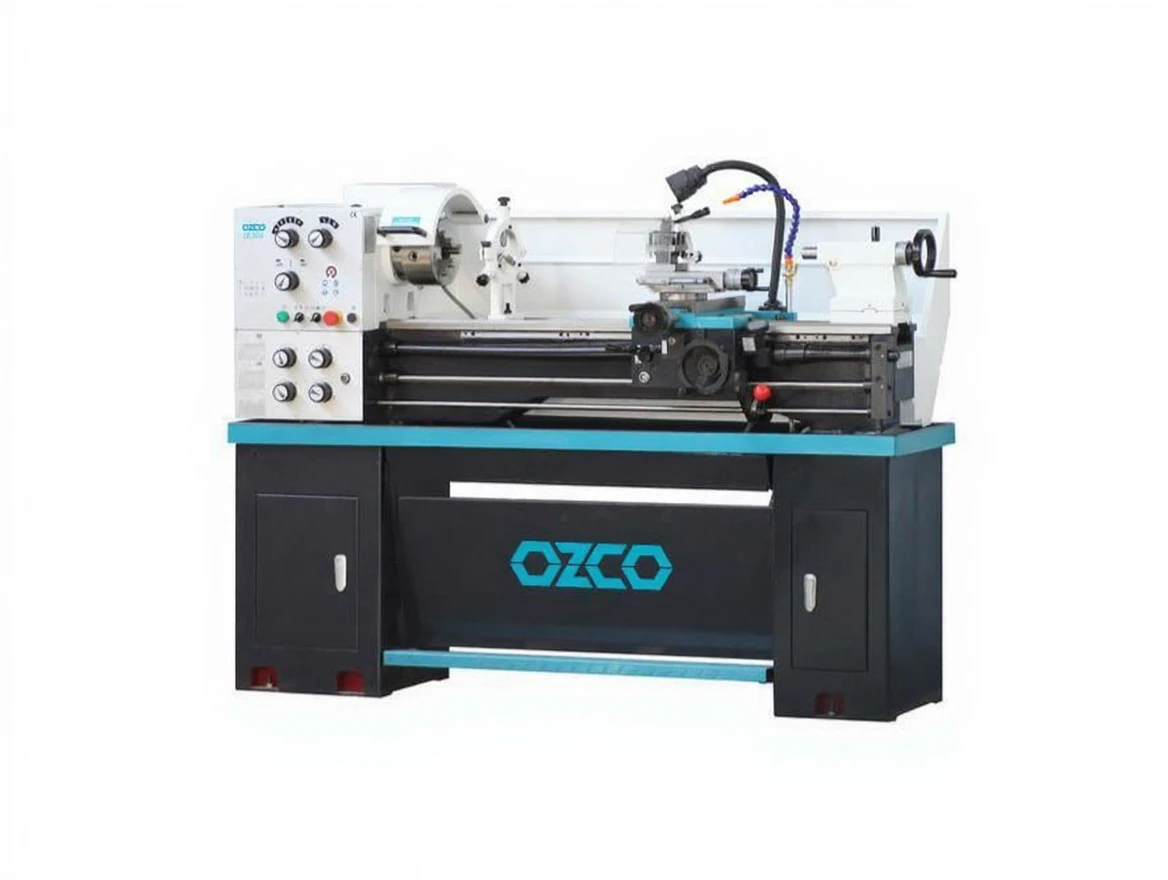

OZCO CR3610 Universal Lathe Machine

OZCO CR3610 Universal Lathe Capacity

It has a turning capacity of 360mm on the bench, 223mm on the support, and 502mm in the bridge gap. The spindle bore is 52mm, and the distance between the tips is 1000mm.

OZCO CR3610 Universal Lathe Shipping Scope

OZCO CR3610 Universal Lathe General Features

Technical Specifications OZCO CR3610 Universal Lathe

Motor Power        1.5 kW, 400 V

Bench Diameter   360 mm

Bridge Diameter    502 mm

Carriage Diameter   223 mm

Bench Width   187 mm

Distance Between Tips     1000 mm

Speed       70-2000 rev/min

Gears   8

Spindle Taper    MK6

Spindle Nose    D2-5

Spindle Diameter   52 mm

Cross Support Movement    130 mm

Angular Support Movement   160 mm

Traveling Center Taper         MK3

Traveling Center Movement      120 mm

Linear Feed         [ PHONE HIDDEN ] mm/rev

Cross Feed     [ PHONE HIDDEN ] mm/rev

Metric Thread Pitch       0.4-7 mm

Inch Thread Pitch     4-56 mm

Tool Post Size     16×16 mm

Machine Dimensions (LxWxH)    1930x725x1350 rev/min

Weight   610 kg
