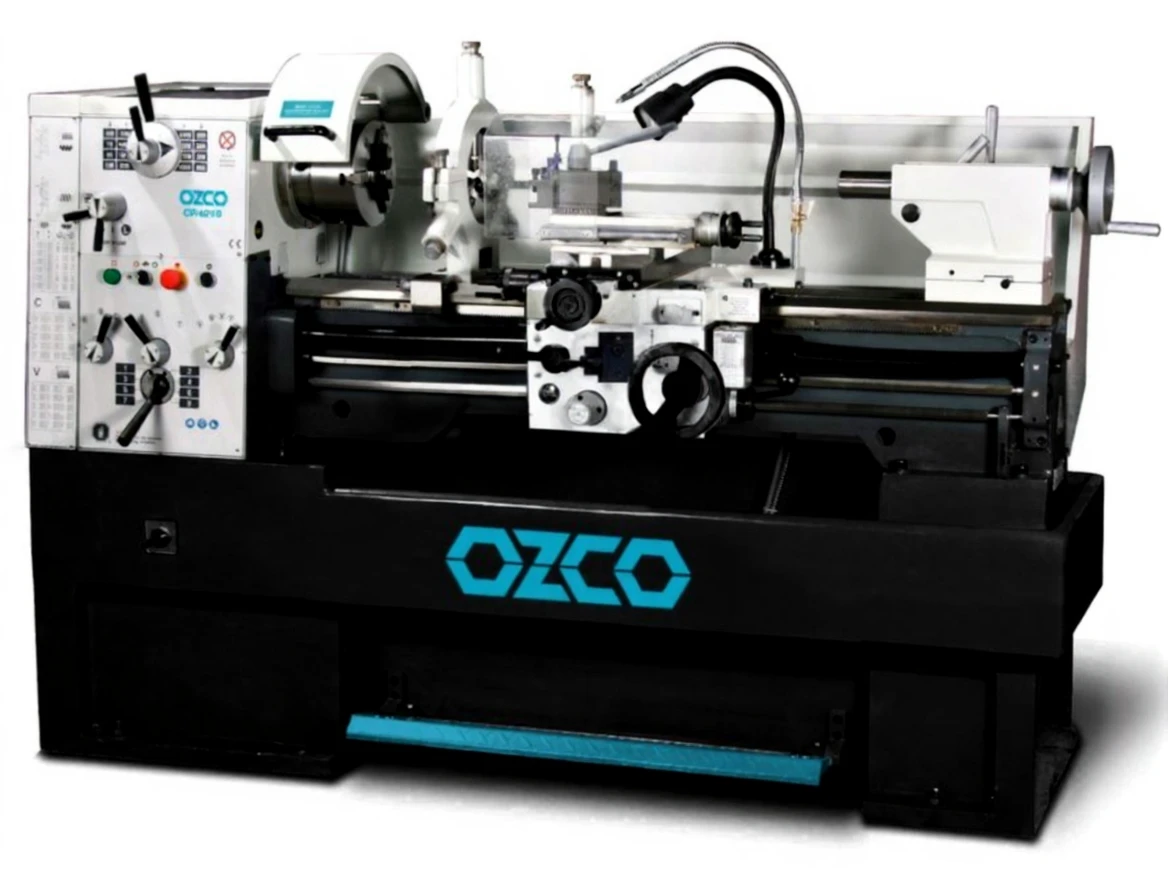

Ozco Cr4210 Universal Lathe Machine
| Brand | Ozco |
|---|---|
| Model Type |
CR4210 |
Description
| Motor Power | 4.5 kW, 400 V |
|---|---|
| Top Diameter on the Table | 420 mm |
| Top Diameter on the Bridge | 590 mm |
| Top Diameter on the Carriage | 250 mm |
| Table Width | 250 mm |
| Distance Between Centers | 1000 mm |
| Speed | 45-1800 rpm |
| Gears | 18 |
| Spindle Taper | MK6 |
| Spindle Nose | D2-6 |
| Spindle Diameter | 52 mm |
| Cross Support Movement | 140 mm |
| Diagonal Support Movement | 230 mm |
| Quill Taper | MK4 |
| Quill Movement | 120 mm |
| Longitudinal Feed | 0.05-1.7 mm/rev |
| Cross Feed | [ PHONE HIDDEN ] mm/rev |
| Metric Thread Pitch Range | 0.2-14 mm |
| Imperial Thread Pitch Range | 2-72 mm |
| Tool Post Size | 20×20 mm |
| Machine Dimensions (LxWxH) | 2025x915x1375 mm |
| Weight | 1160 kg |
- Compliant with CE standards
- Safety switch mirror guard
- Heavy, solid cast iron machine base
- Emergency stop button
- Hardened and ground ways
- Siemens electrical system
- Foot brake
- Mirror and tool post guard
- Cooling system
