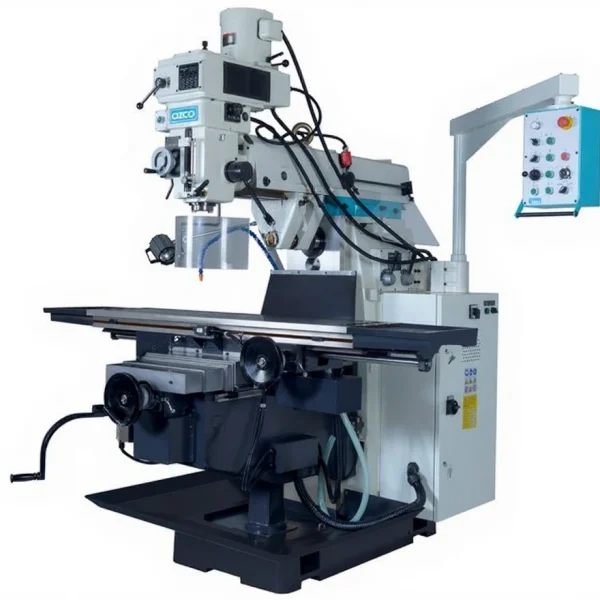

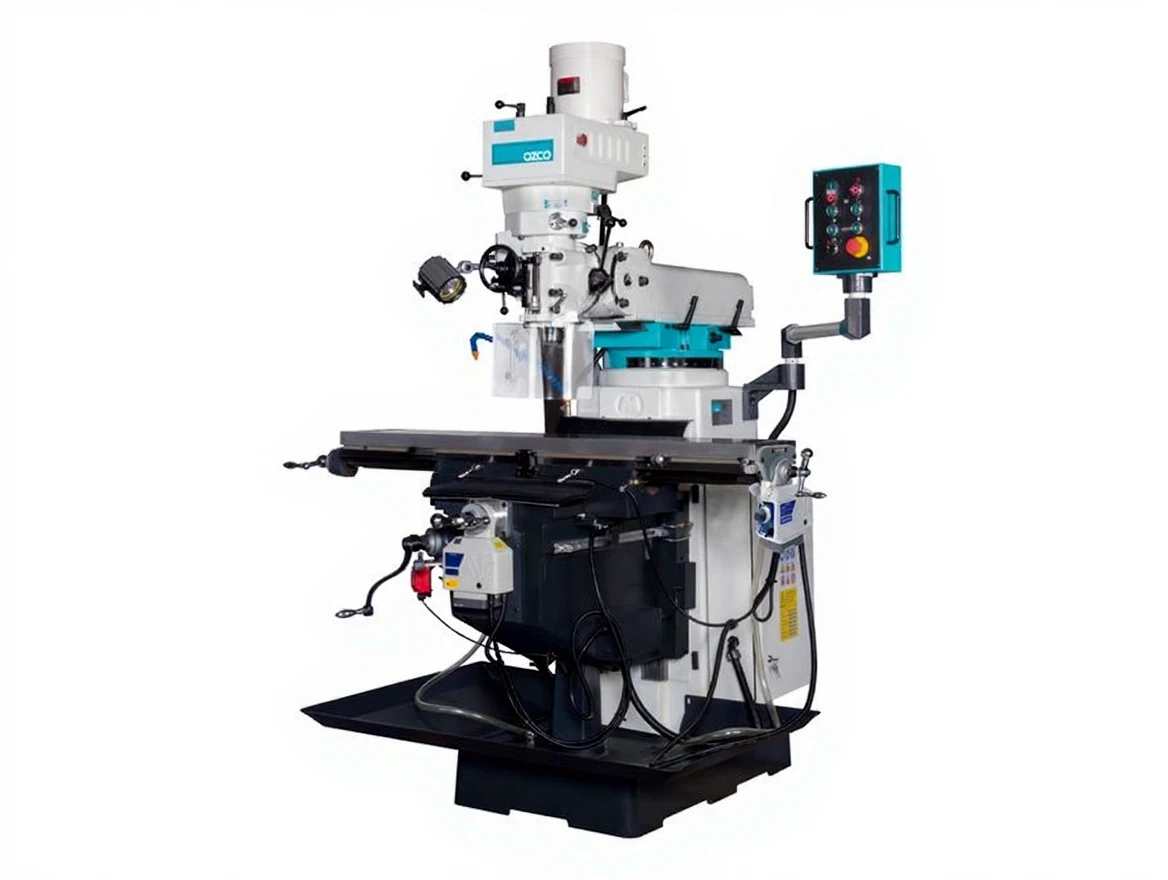

Ozco F4 Pro Mold Milling Machine

Brand Ozco
Model Type

F4 Pro

Category:
Description

OZCO F4 Pro Mold Cutter Milling

OZCO F4 Pro Mold Cutter Milling Capacity
X axis travel 825 mm, Y axis travel 400 mm, Z axis travel 406 mm, and the spindle diameter is 105 mm.


OZCO F4 Mold Cutter Milling Shipment Scope
Mold clamping set, Vise, 15-piece ISO 40 collet set, and Tool kit included.


OZCO F4 Mold Cutter Milling General Features
High-quality Meehanite casting, Adjustable safety glass shield, Schneider electrical system, X axis electric motor-automatic, Y axis electric motor-automatic, Z axis rapid motor-automatic, Turcite-B coated guideways, Cooling system, Lighting, Chip tray, Compliant with CE standards.


Technical Specifications F4 Mold Cutter Milling

Motor Power 3.75 kW, 400 V

Cooling Pump Power 1/8 Hp (100 W)

Table Dimensions 1370×254 mm

X Axis Travel 825 mm

Y Axis Travel 400 mm

Z Axis Travel 406 mm

T Slot Dimensions 3×16 mm

Spindle Taper ISO 40

Spindle Speed 70-3600 rpm

Speeds 16

Spindle Diameter 105 mm

Spindle Travel 127 mm

Spindle Feed [ PHONE HIDDEN ] mm/rev

Head Swivel Angle + – 90°

Spindle-Table Distance 40-446 mm

Spindle-Column Distance 200-680 mm

RAM Travel 480 mm

Machine Dimensions (WxDxH) 1750x1500x2200 mm

Net Weight 1300 Kg
