Ozco F7 Pro Universal Mold Cutter Mill
| Brand | Ozco |
|---|---|
| Model Type |
FR7 PRO |
Description

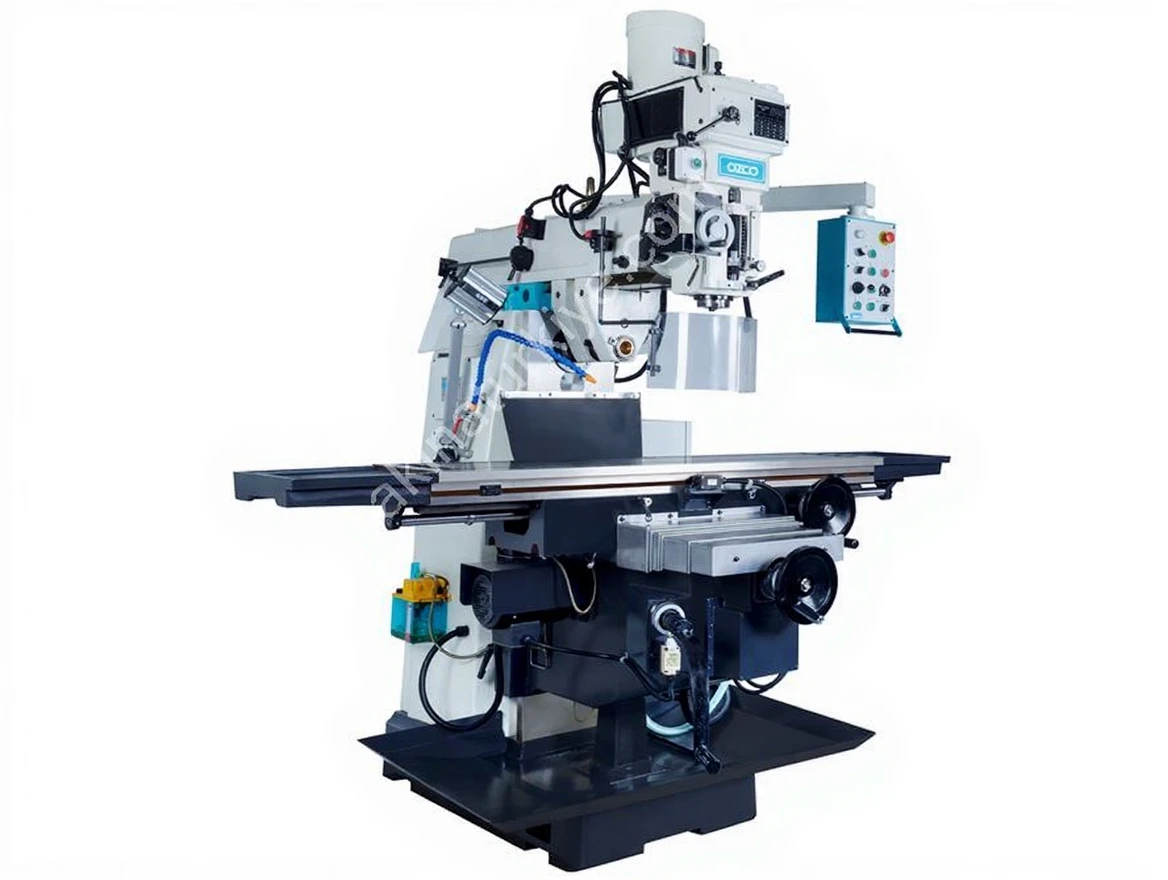

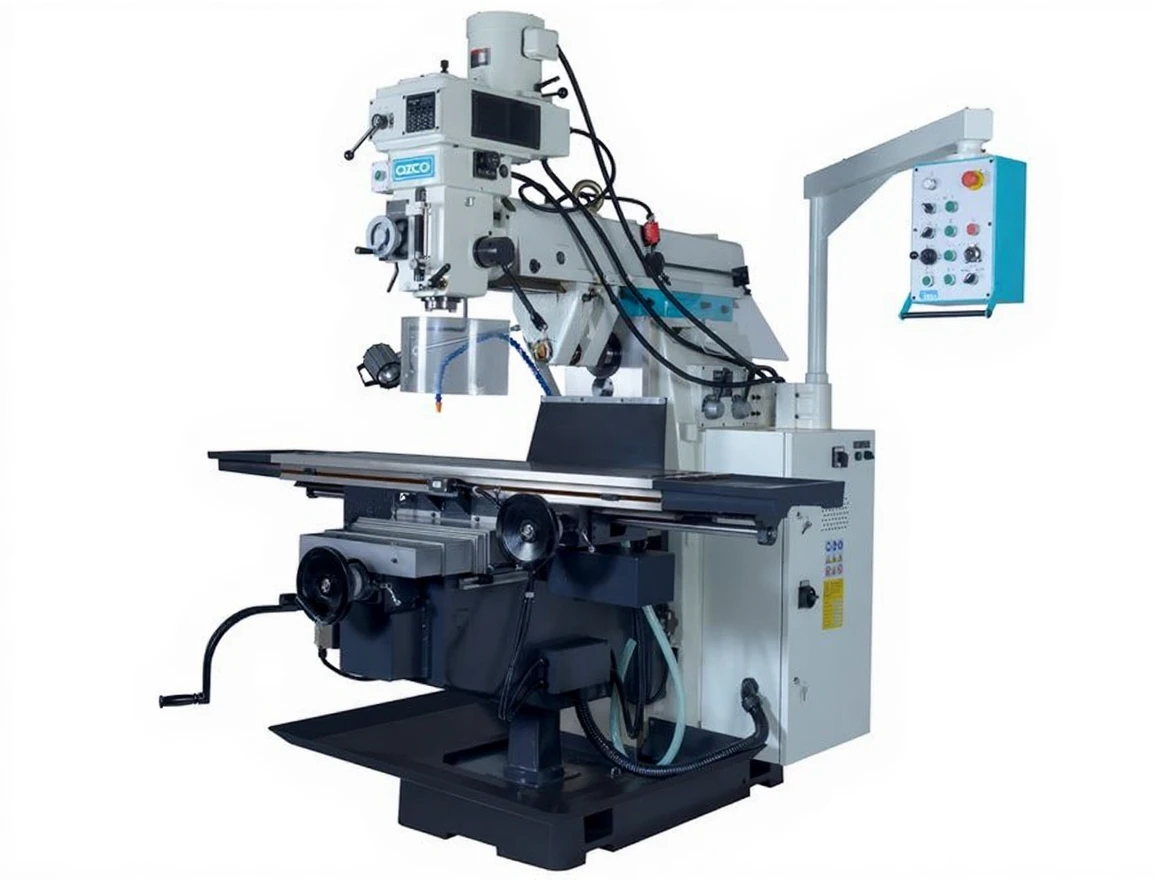

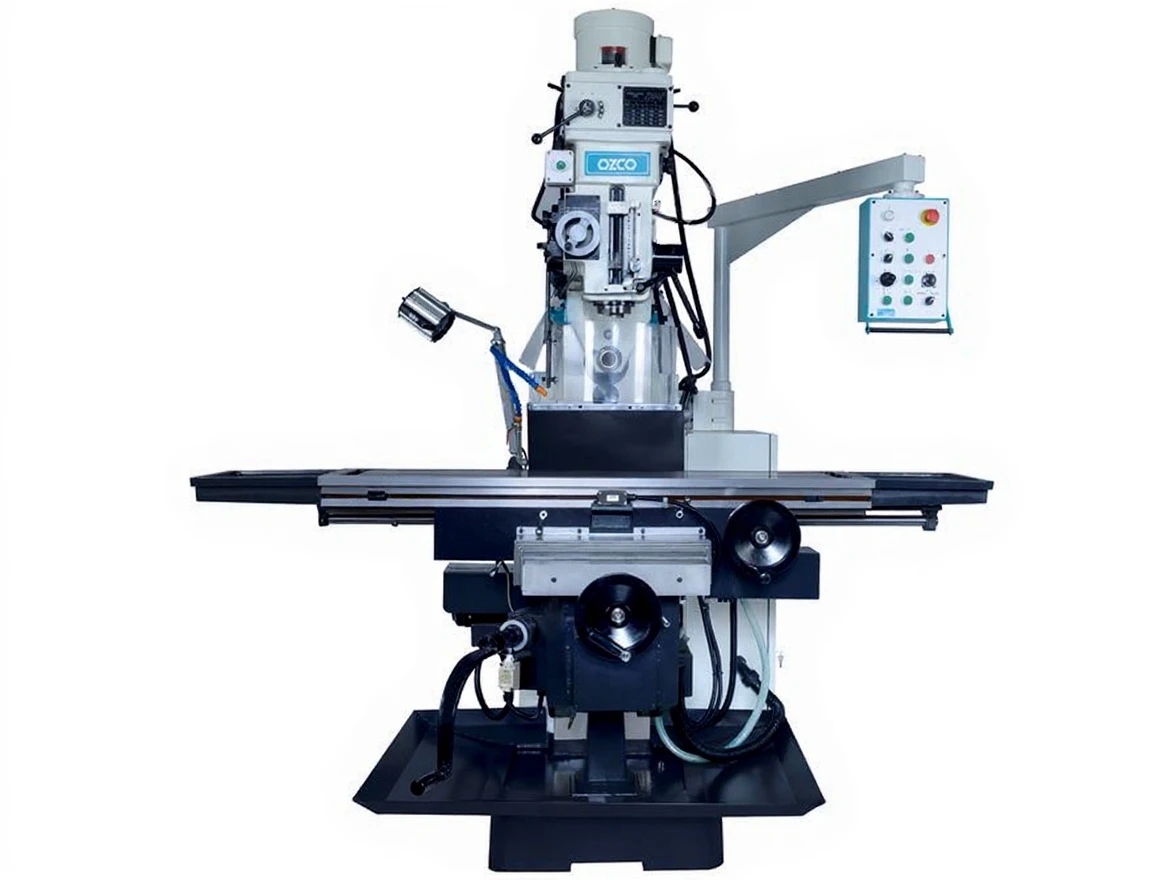

OZCO FR7 Pro Universal Mold Milling Machine
OZCO FR7 Pro Universal Mold Milling Machine Capacity
X-axis movement 1120 mm, Y-axis movement 500 mm, Z-axis movement 440 mm.
OZCO FR7 Pro Universal Mold Milling Machine Shipping Scope
15 pieces of ISO 40 spindle tool, Mold clamping set, Vise, Toolbox
OZCO FR7 Pro Universal Mold Milling Machine General Features
X and Y axes ball screw-Japanese origin, Yaskawa brand servo motors, automatic, Z axis rapid motor-automatic, Height-adjustable safety switch shield, Schneider electric system, Turcite-B coated slides, Lighting, Cooling system, Chip tank, In compliance with CE standards, MADE IN TAIWAN
Technical Specifications FR7 Pro Universal Mold Milling Machine
Motor Power Vertical: 3.75 kW, Horizontal: 3.75 kW, 400 V w
Table Dimensions 1470×300 mm
Table Load Capacity (max.) 400 kg.
X Axis Movement 1120 mm
Y Axis Movement 500 mm
Z Axis Movement 440 mm
T Slot Dimensions 3×18 mm
Spindle Connection Vertical: ISO40, Horizontal: ISO40
Spindle Speed Vertical: 62-3000 rpm, Horizontal: 60-1440 rpm
Stage Vertical: 16, Horizontal: 9
Quill Travel 140 mm
Head Rotation Angle +- 45°
Spindle-Table Distance Vertical: 85-505 mm, Horizontal: 25-395 mm
Table Feed X,Y: 750 W servo motor, Z:750 W rapid motor
Machine Dimensions(WxDxH) 2070x2050x2600 rpm
Net Weight 2600 kg
