Ozco Fm20vld Desktop Router
| Brand | Ozco |
|---|---|
| Model Type |
FM20VLD |
Description

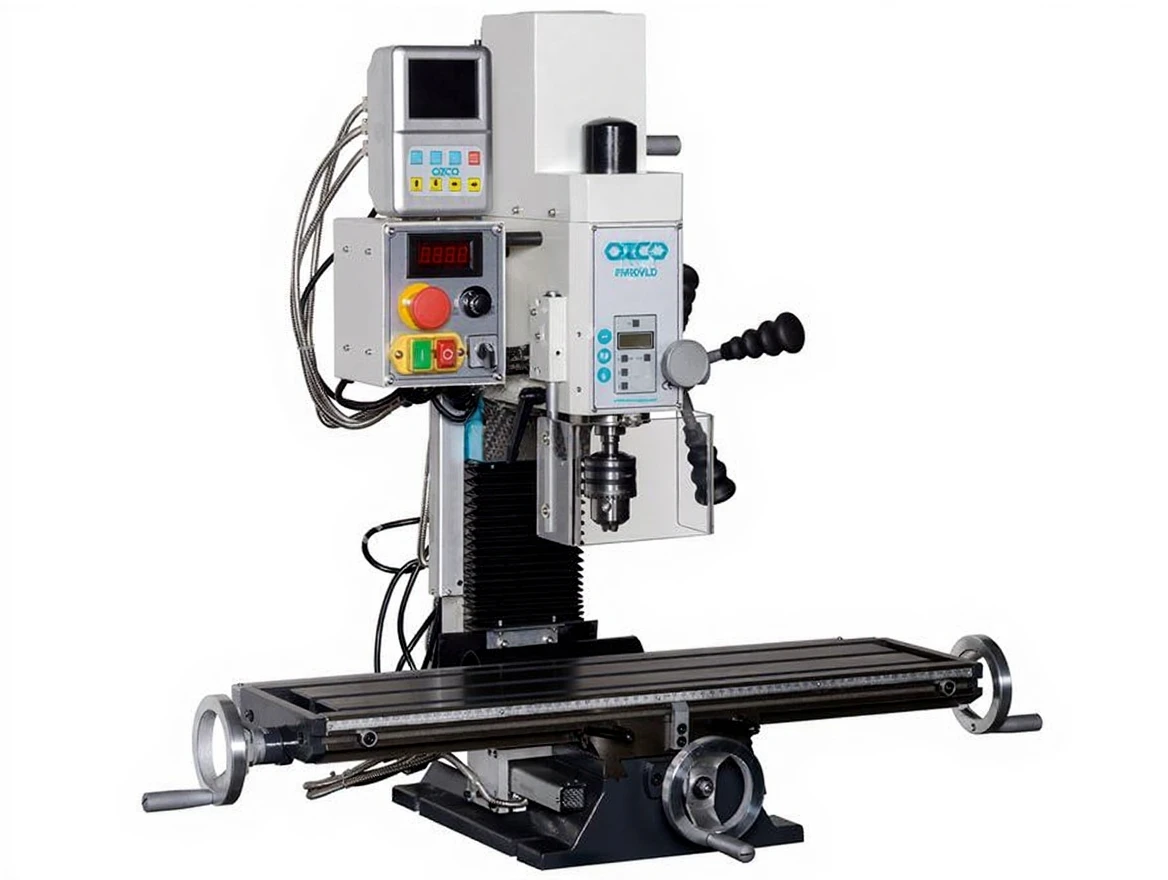

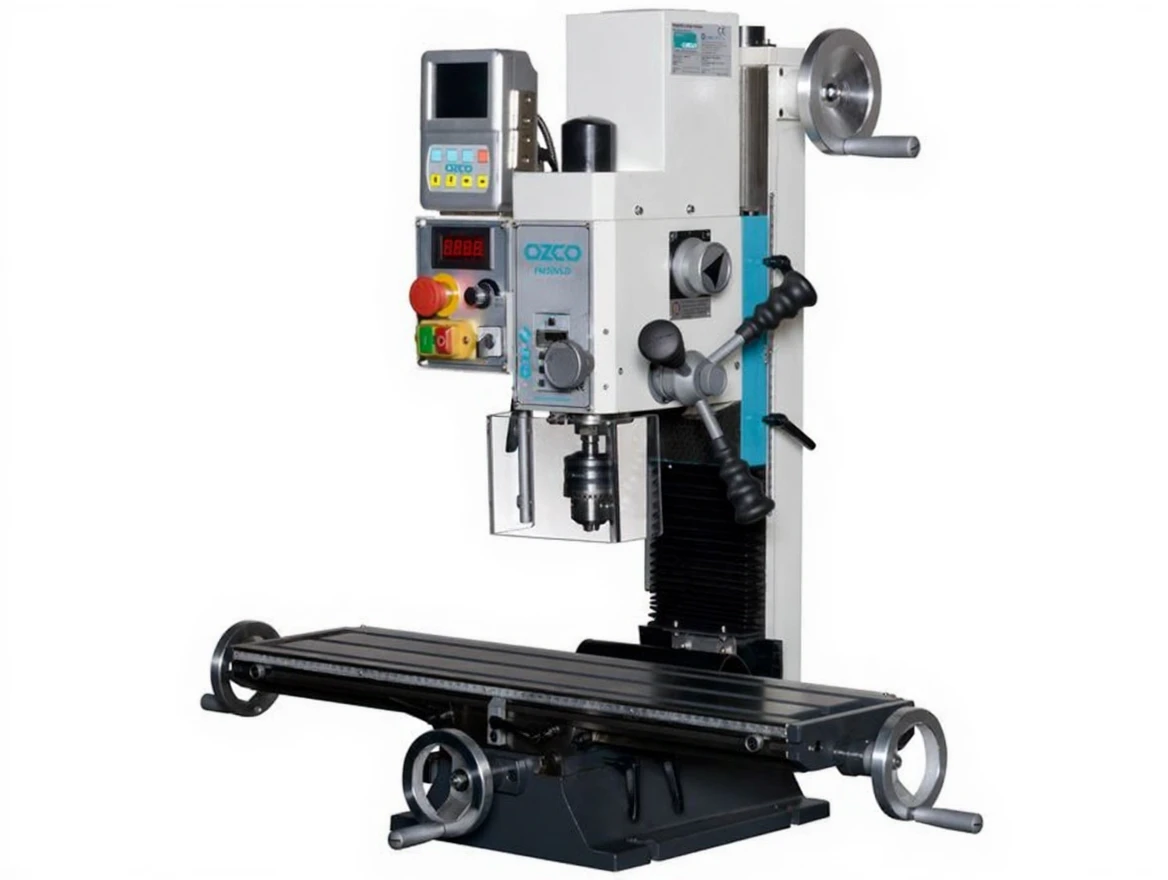

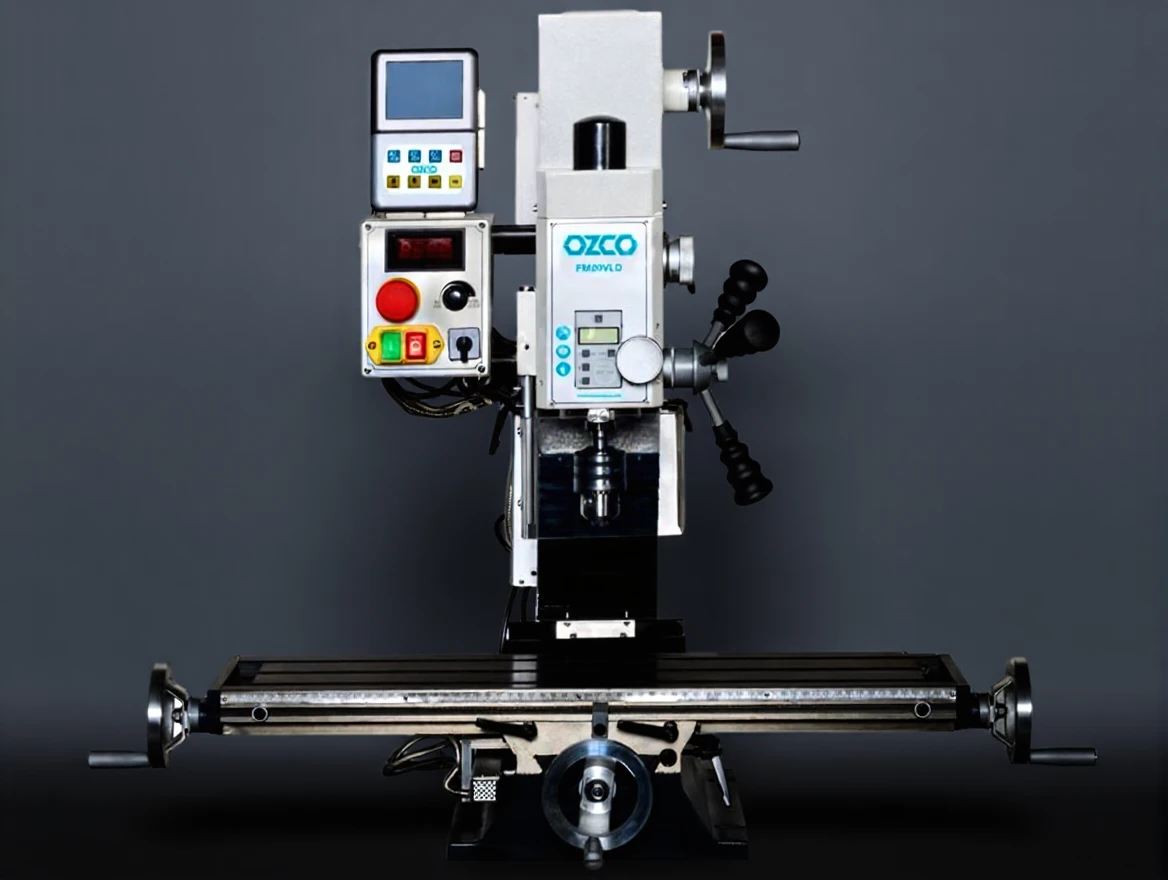

OZCO FM20VLD Benchtop Milling Machine
OZCO FM20VLD Benchtop Milling Machine Capacity
X-axis travel 480 mm, Y-axis travel 175 mm, Z-axis travel is 270 mm.
OZCO FM20VLD Benchtop Milling Machine Shipment Scope
MK2 / M10 chuck, Tool kit
OZCO FM20VLD Benchtop Milling Machine General Properties
3 Axis digital readout, Right/Left rotation feature, Vario speed adjustment(stepless), digital speed indicator, Height-adjustable safety, Switchable visor, Digital depth indicator, Head angle up to 345°, Compliant with CE standards
Technical Specifications OZCO FM20VLD Benchtop Milling Machine
Motor Power 750 W, 220 V
Drilling Capacity 16 mm
Finger Milling Capacity 20 mm
Face Milling Capacity 63 mm
Table Dimensions 700×180 mm
X-axis Travel 480 mm
Y-axis Travel 175 mm
Z-axis Travel 270 mm
T Slot Dimensions 3×12 mm
Spindle Taper MK2
Spindle Speed 50-2550 rpm
Gear 2 / Variable
Quill Travel 50 mm
Head Tilt Angle 345°
Spindle-Column Distance 185 mm
Machine Dimensions (WxDxH) 950x560x930 rpm
Net Weight 115 kg
