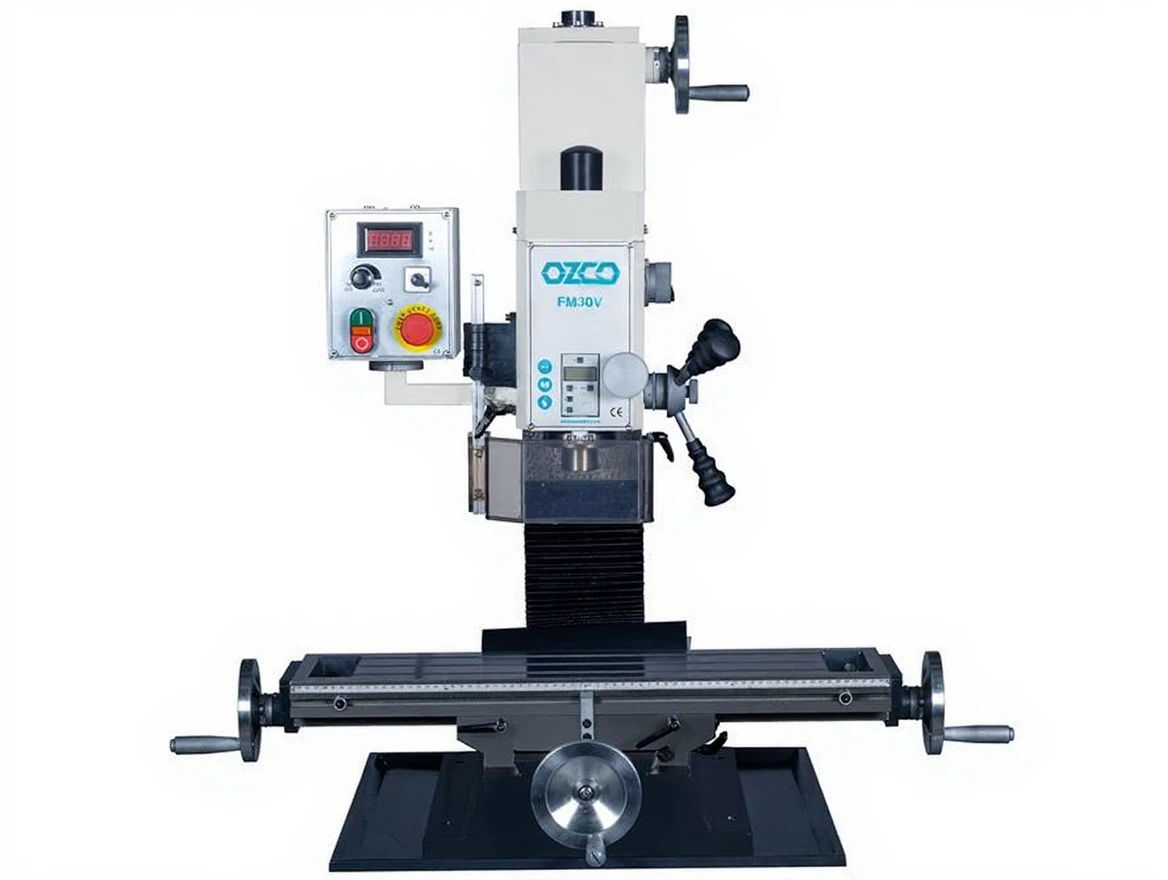

Ozco Fm30v Desktop Milling Machine
| Brand | Ozco |
|---|---|
| Model Type |
FM30V |
Description
| Motor Power | 1.1 kW, 230 V |
|---|---|
| Drilling Capacity | 32 mm |
| Finger Milling Capacity | 25 mm |
| Surface Milling Capacity | 80 mm |
| Table Dimensions | 700×210 mm |
| X Axis Movement | 425 mm |
| Y Axis Movement | 220 mm |
| Z Axis Movement | 360 mm |
| T Slot Size | 3×14 mm |
| Spindle Taper | MK3 |
| Spindle Speed | 50-2250 rpm |
| Gear | 2 / Variable |
| Quill Movement | 70 mm |
| Head Swivel Angle | ±45° |
| Spindle-Column Distance | 90 mm |
| Machine Dimensions (WxDxH) | 1000x800x1200 mm |
| Net Weight | 230 kg |
- Right/Left rotation feature
- Variable speed adjustment (stepless), digital speed display
- Height adjustable safety switchable shield
- Digital depth gauge
- Head angle up to ±45˚
- Complies with CE standards
