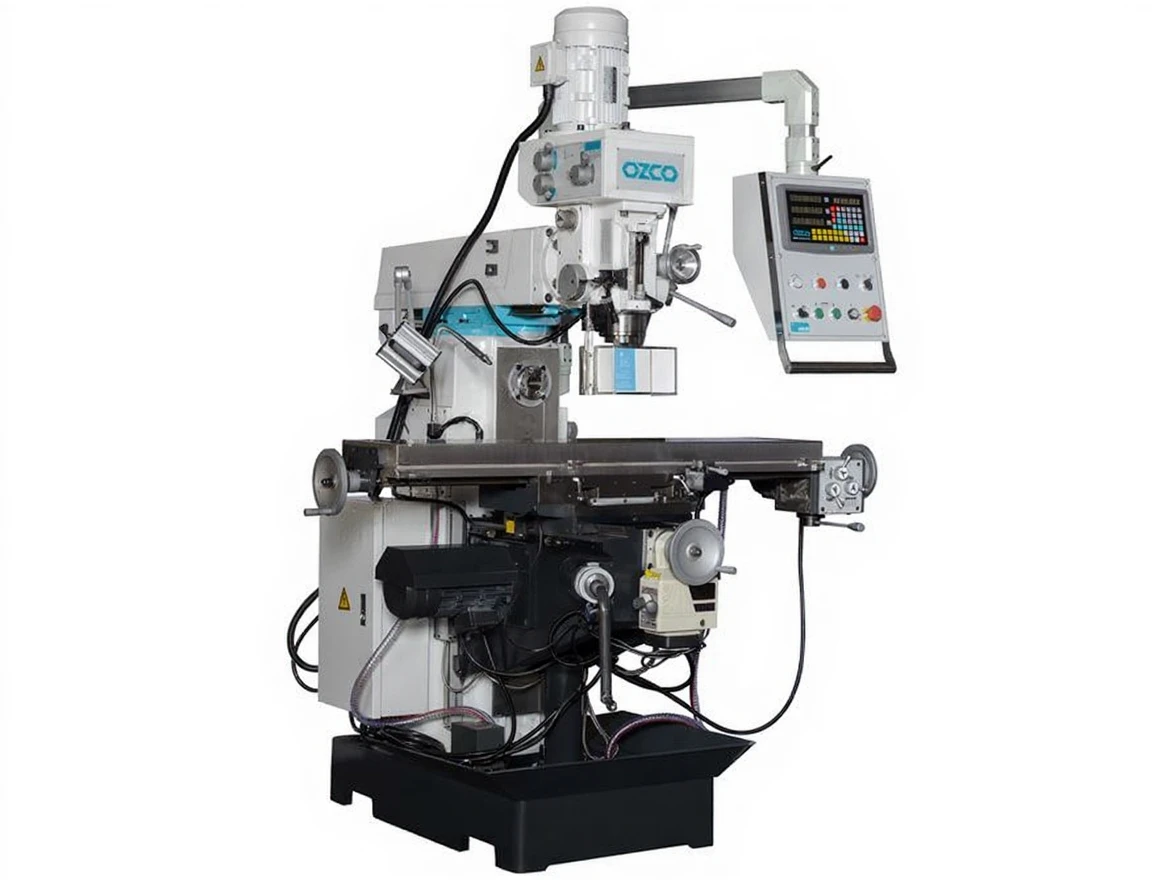

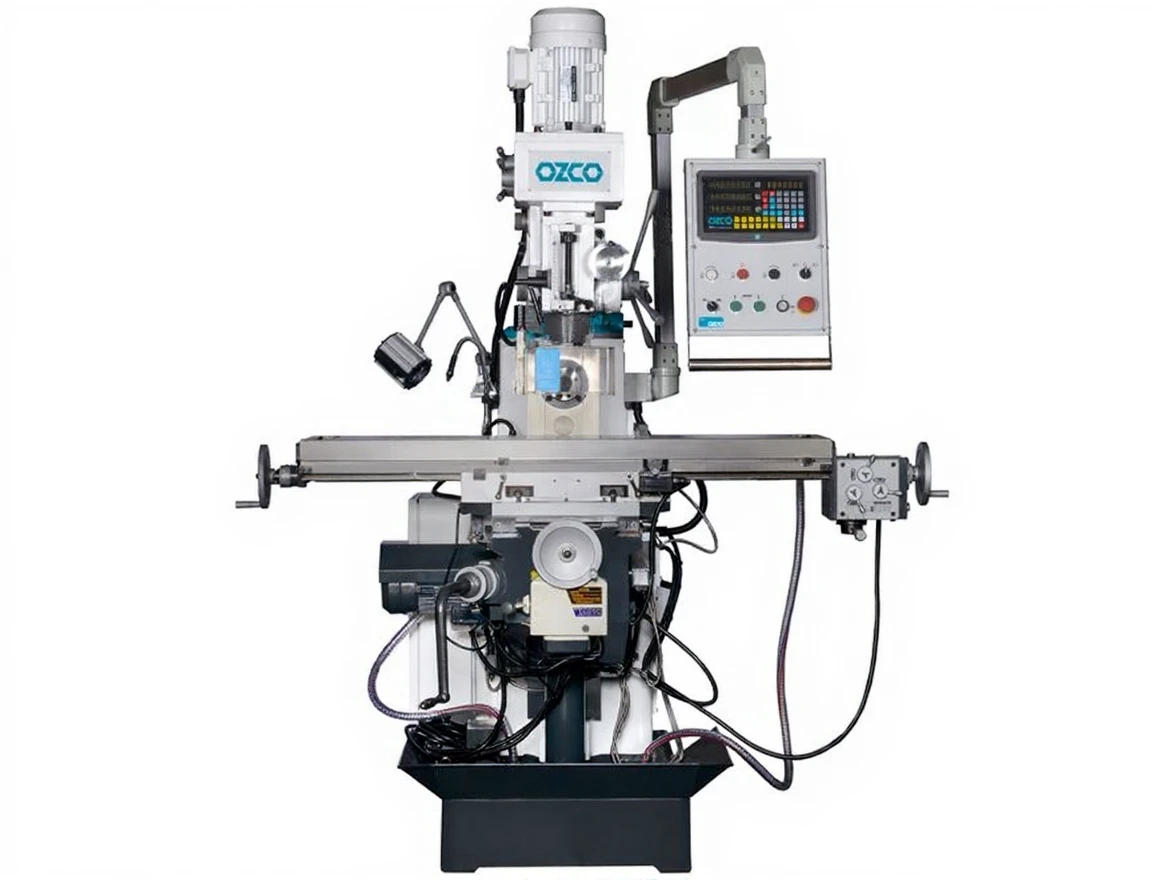

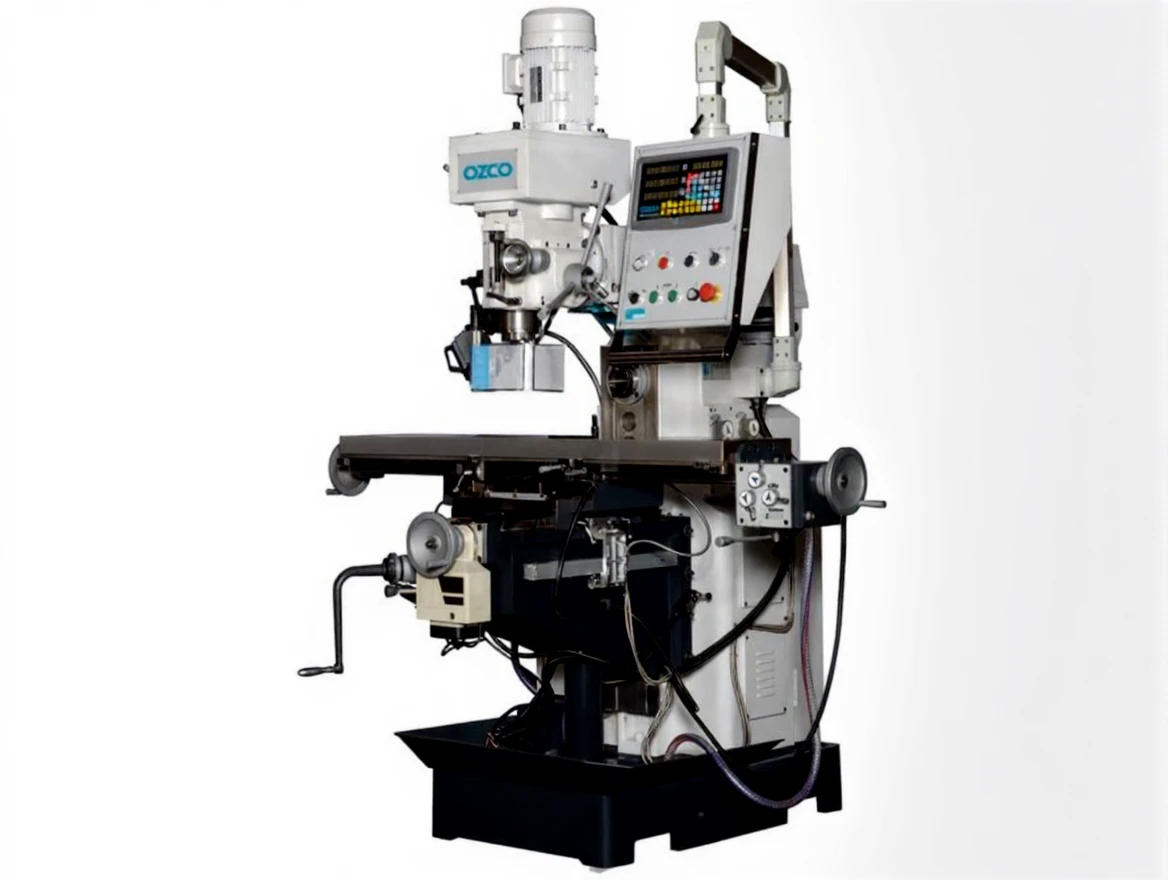

Ozco Fr3 Universal Pattern Milling Machine
| Brand | Ozco |
|---|---|
| Model Type |
FR3 |
Description
OZCO FR3 Universal Mold Router
OZCO FR3 Universal Mold Router Capacity
X-axis travel 750 mm, Y-axis travel 270 mm, Z-axis travel 360 mm, and the quill diameter is 90 mm.
OZCO FR3 Universal Mold Router Shipping Coverage
Mold clamping set, Vise, 11-piece ISO 40 collet set, Toolbox
OZCO FR3 Universal Mold Router General Features
3-axis automatic, 3-axis digital coordinate reader, Control panel, Height-adjustable safety switch guard, Cooling system, Lighting, Chip collection tank, CE compliant.
Technical Specifications FR3 Universal Mold Router
Motor Power Vertical: 2.2 kW, Horizontal: 2.2 kW, 400 V
Operating Type Vertical: Geared, Horizontal: Geared
Coolant Pump Power 90 W
Table Dimensions 1270×280 mm
X-axis Travel 750 mm
Y-axis Travel 270 mm
Z-axis Travel 360 mm
T Slot Dimensions 3×16 mm
Spindle Connection Vertical: ISO40, Horizontal: ISO40
Spindle Speed Vertical: 90-2000 rpm, Horizontal: 40-1300 rpm
Speeds Vertical: 8, Horizontal: 12
Quill Diameter 90 mm
Quill Travel 120 mm
Head Swivel Angle right/left: +- 90°
Spindle-Table Distance 115-545 mm
Spindle-Column Distance 210 mm
Machine Dimensions(WxDxH) 1600x1500x2150 mm
Net Weight 1350 Kg
