Ozco Fr4 Universal Pattern Milling Machine Table
| Brand | Ozco |
|---|---|
| Model Type |
FR4 |
Description

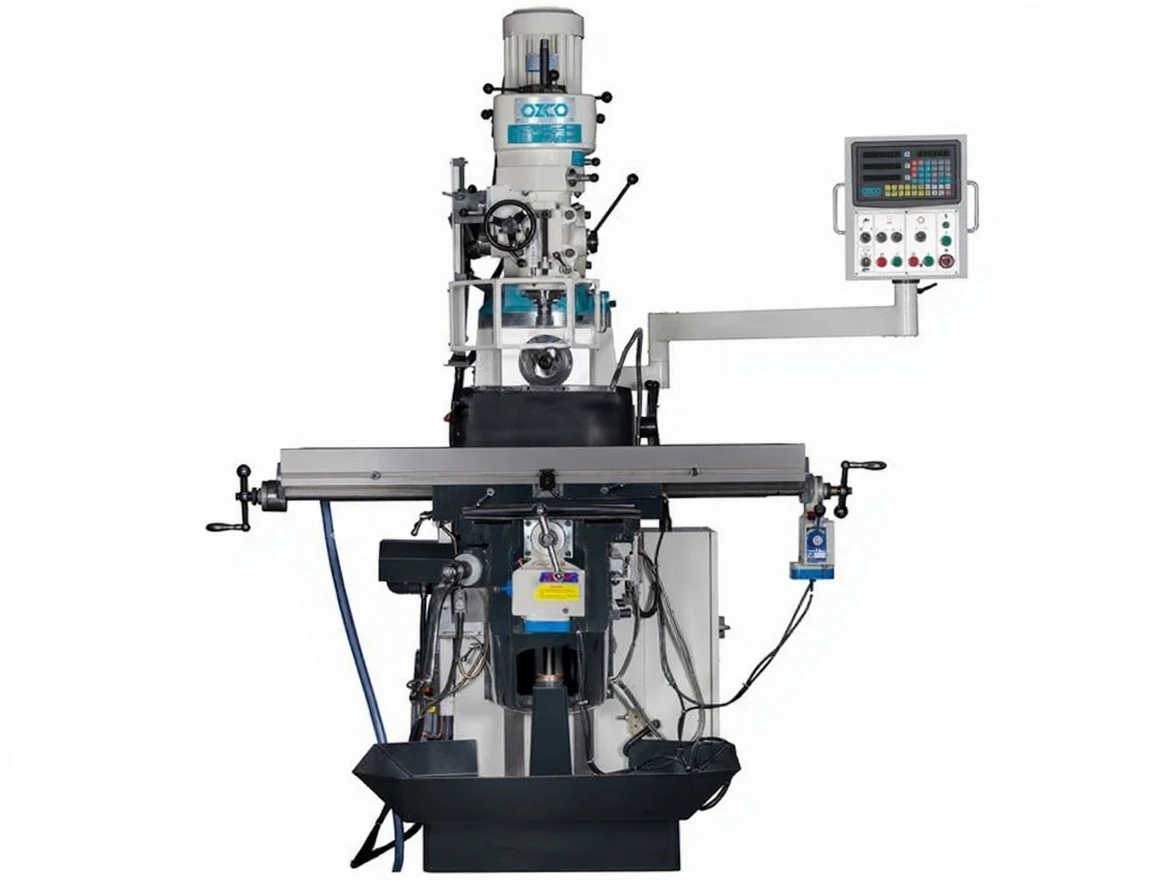

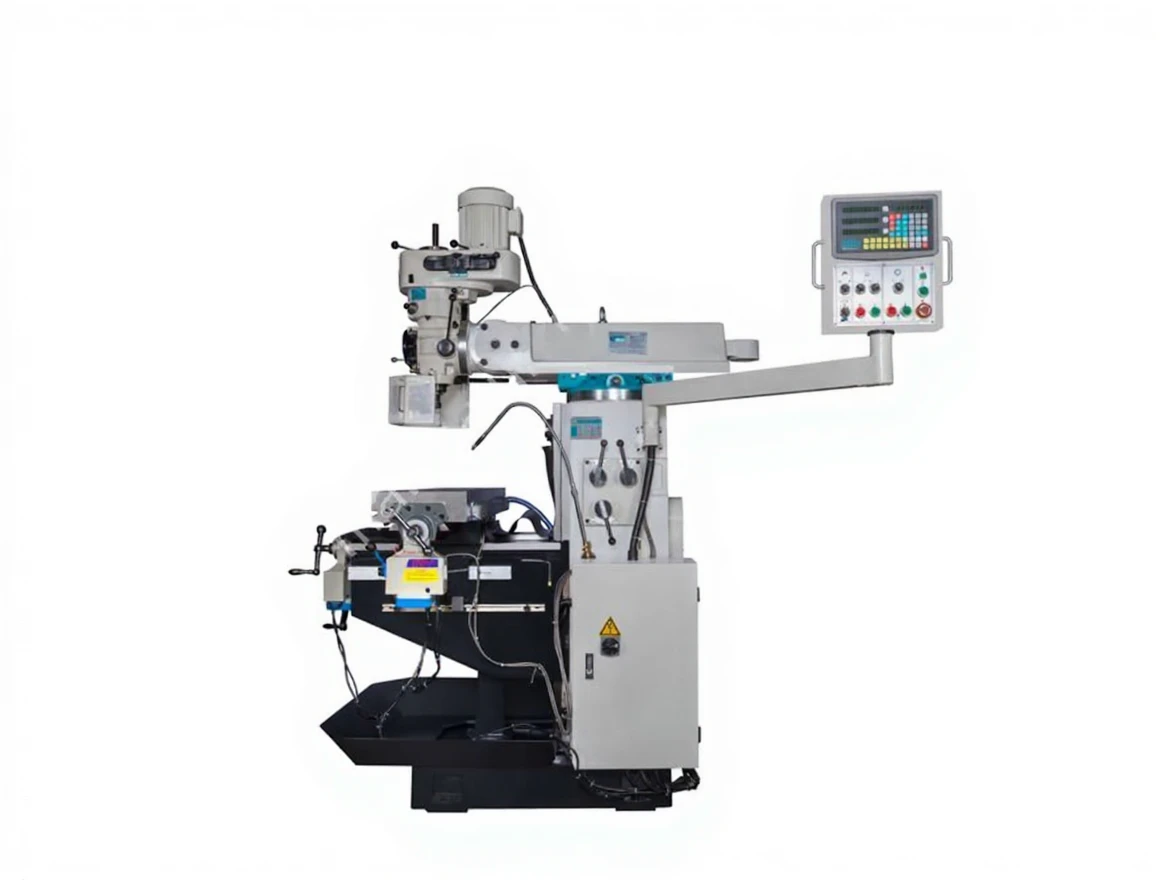

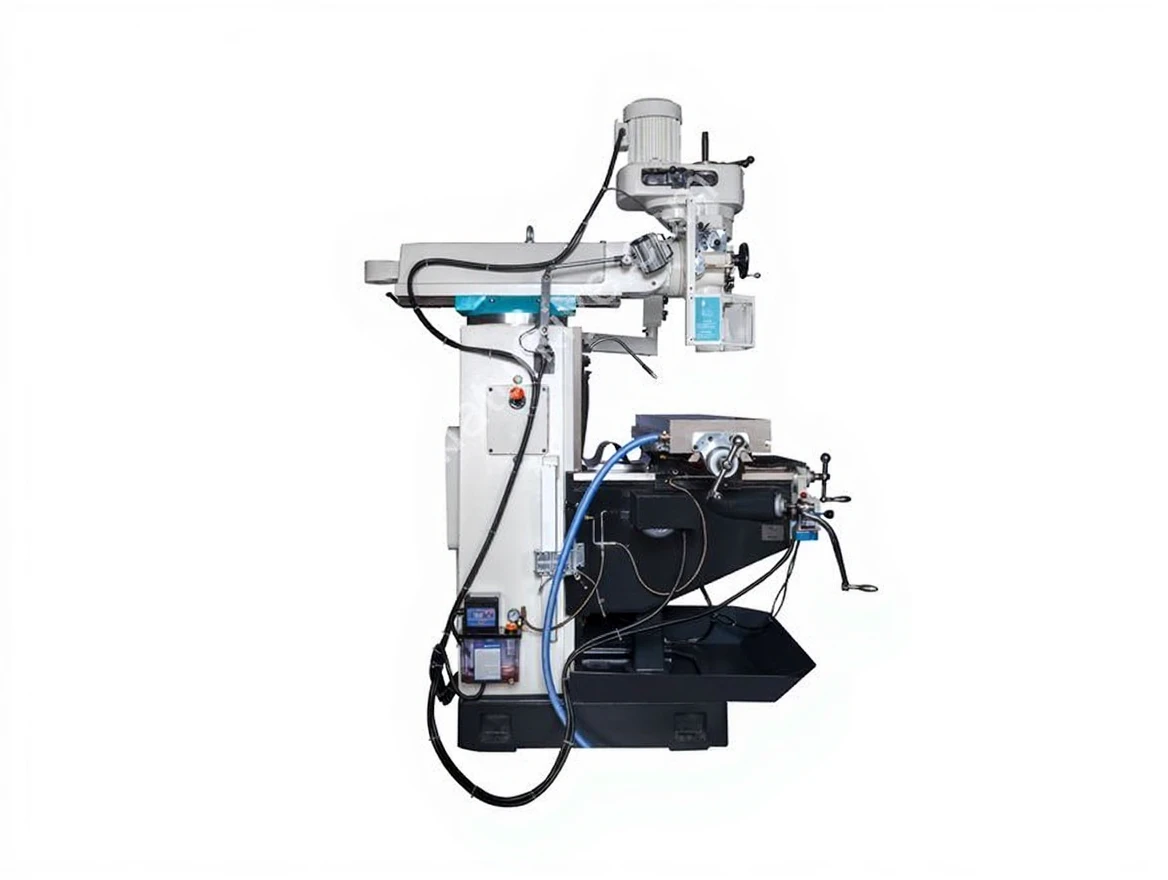

OZCO FR4 Universal Mold Milling Machine
OZCO FR4 Universal Mold Milling Machine Capacity
X-axis movement 880 mm, Y-axis movement 420 mm, Z-axis movement 435 mm, and the quill diameter is 105 mm.
OZCO FR4 Universal Mold Milling Machine Shipping Scope
Mold clamping set, Clamp, 11-piece ISO 40 spindle set, Tool kit
OZCO FR4 Universal Mold Milling Machine General Features
3-axis automatic, 3-axis digital coordinate reader, Control panel, Taiwan-made strong milling head, Automatic spindle feed, Height adjustable safety switch guard, Cooling system, Lighting, Chip reservoir, CE compliant.
Technical Specifications FR4 Universal Mold Milling Machine
Motor Power Vertical: 3.75 kW, Horizontal: 2.2 kW, 400 V
Operation Type Vertical: Belt-driven, Horizontal: Gear-driven
Cooling Pump Power 90 W
Table Dimensions 1370×305 mm
X-axis Movement 880 mm
Y-axis Movement 420 mm
Z-axis Movement 435 mm
T Slot Dimensions 3×16 mm
Spindle Connection Vertical: ISO40, Horizontal: ISO40
Spindle Speed Vertical: 66-4500 rpm, Horizontal: 40-1290 rpm
Speeds Vertical: 16, Horizontal: 12
Quill Diameter 105 mm
Quill Movement 127 mm
Head Rotation Angle right/left: + – 90°, front/back: + – 45°
Spindle-Table Distance 0-380 mm
Spindle-Column Distance 210 mm
Machine Dimensions (WxDxH) 1700x1600x2250 mm
Net Weight 1500 Kg
