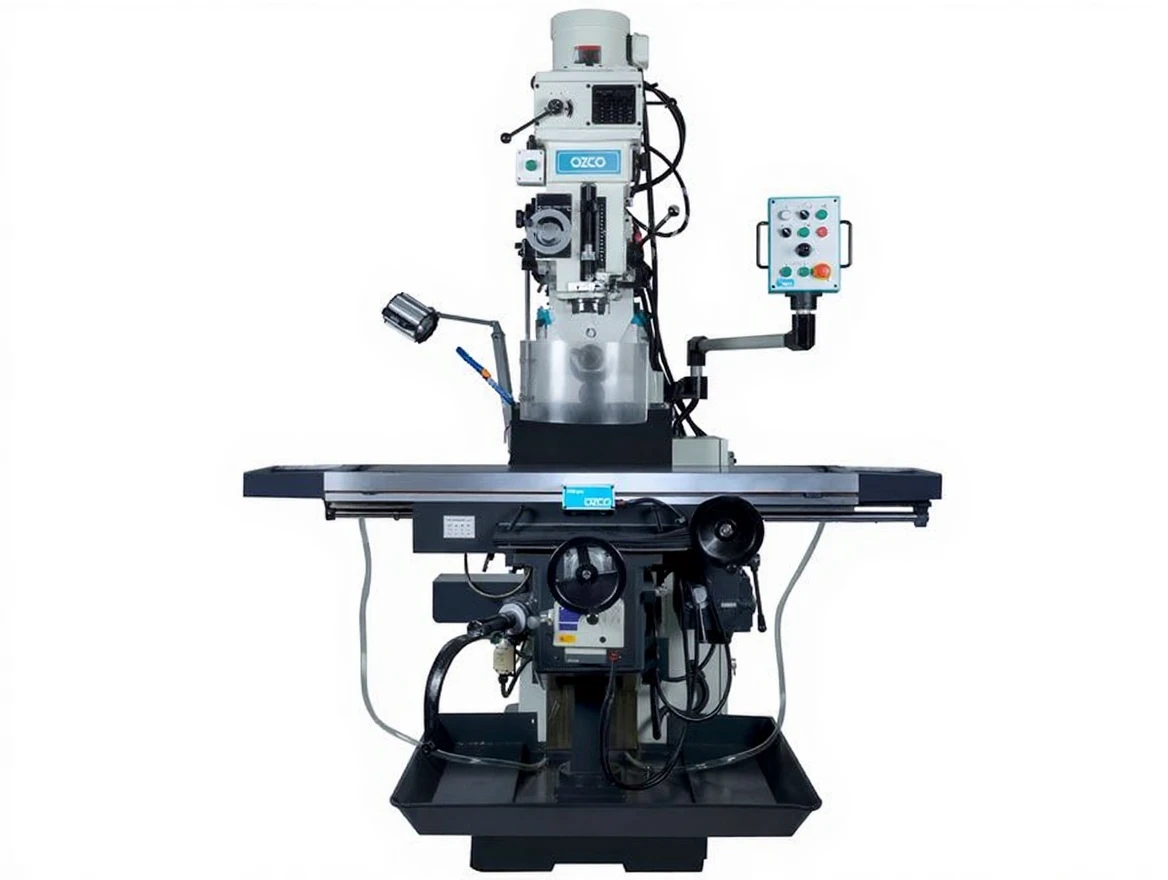

Ozco Fr5 Pro Servo Universal Mold Milling Machine
| Brand | Ozco |
|---|---|
| Model Type |
FR5 Pro Servo |
Description
| Motor Power | Vertical: 5 Hp (3.75 kW), Horizontal: 5 Hp (3.75 kW) 400 V |
|---|---|
| Coolant Pump Power | 1/8 Hp (100) w |
| Table Dimensions | 1470×300 mm |
| Table Load Capacity (max.) | 300 kg |
| X-Axis Movement | 1130 mm |
| Y-Axis Movement | 400 mm |
| Z-Axis Movement | 450 mm |
| T Slot Size | 3×16 mm |
| Spindle Connection | Vertical: ISO 40, Horizontal: 40 |
| Spindle Speed | Vertical: 75-3600, Horizontal: 65-1500 rpm |
| Gear | Vertical: 16, Horizontal: 9 |
| Quill Diameter | 110 mm |
| Quill Stroke | 140 mm |
| Quill Feed | [ PHONE HIDDEN ] mm/rev |
| Head Swivel Angle | ±90° |
| Spindle-Table Distance | 95-545 mm |
| Spindle-Column Distance | 190-690 mm |
| Table Feed | X: 3/4 Hp, Y, Z: 1/2 Hp |
| RAM Movement | 500 mm |
| Machine Dimensions (WxDxH) | 1750x1620x2350 rpm |
| Net Weight | 2350 kg |
- X-axis with ball screw drive, automatic
- Y-axis motorized with electric motor-automatic
- Z-axis with rapid motor-automatic
- Height adjustable safety switch guard
- Schneider electrical system
- Turcite-B coated guides
- Lighting
- Cooling system
- Chip tray
- Compliant with CE norms
