Ozco Fr5 Servo Mold Cutter Mill
| Brand | Ozco |
|---|---|
| Model Type |
FR5 Servo |
Description

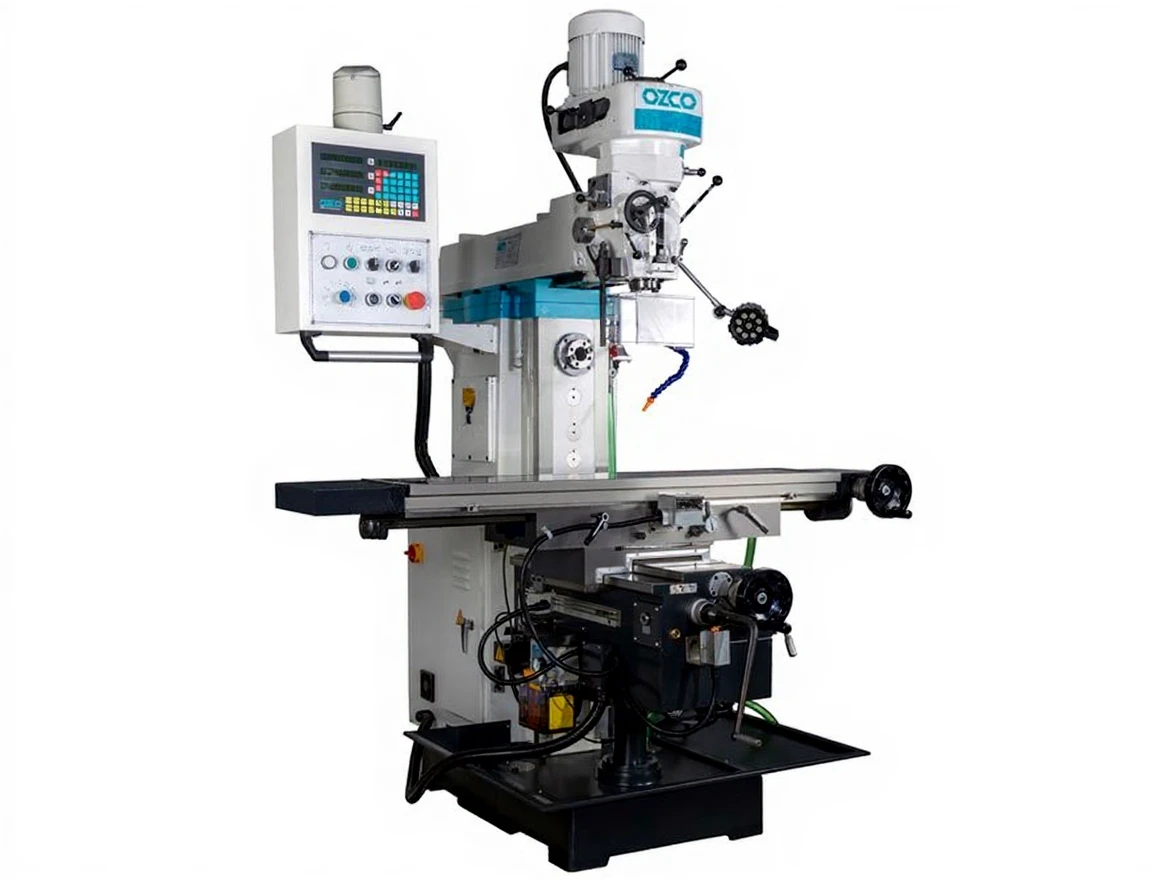

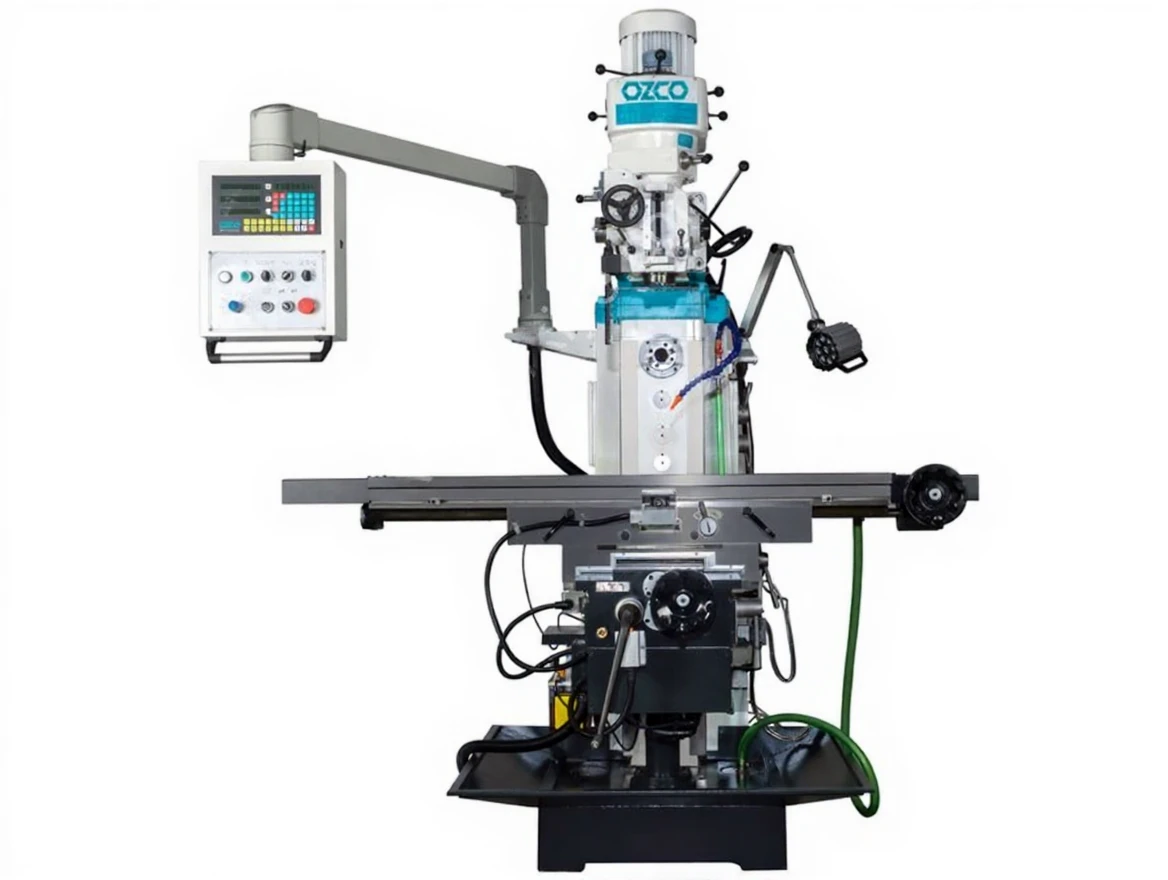

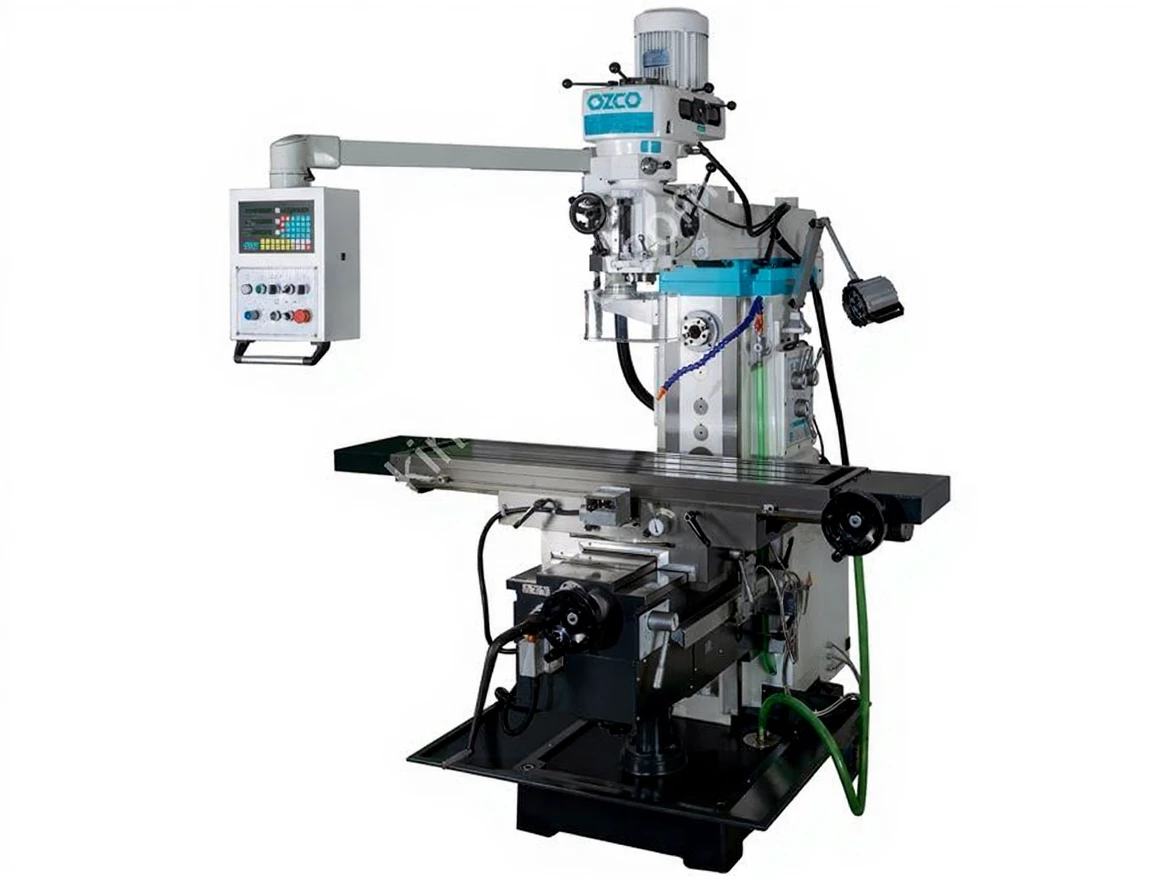

OZCO FR5 Servo Universal Mold Milling Machine
OZCO FR5 Servo Universal Mold Milling Machine
X-axis movement 1000 mm, Y-axis movement 360 mm, Z-axis movement 400 mm, and the quill diameter is 105 mm.
Included in the Shipment Scope of OZCO FR5 Servo Universal Mold Milling Machine
Mold clamping set, Vise, 8-piece ISO 40 cutter set, Toolbox
General Features of OZCO FR5 Servo Universal Mold Milling Machine
3-axis automatic, 3-axis digital coordinate reader, Taiwan-made powerful milling head, Height-adjustable safety switchable guard, Control panel, Automatic lubrication, Cooling system, Lighting, Chip hopper, compliant with CE standards.
Technical Specifications of FR5 Servo Universal Mold Milling Machine
Motor Power Vertical: 3.75 kW, Horizontal: 3.0 kW, 400 V
Coolant Pump Power 90 W
Table Dimensions 1370×320 mm
Table Load Capacity 300 Kg
X-Axis Movement 1000 mm
Y-Axis Movement 360 mm
Z-Axis Movement 400 mm
T Slot Dimensions 3×14 mm
Spindle Connection Vertical: ISO40, Horizontal: ISO40
Spindle Speed Vertical:65-4660 rpm, Horizontal:35-1500 rpm
Gears Vertical:16, Horizontal:12
Quill Diameter 105 mm
Quill Travel 127 mm
Head Swivel Angle + – 90°
Spindle-Table Distance Vertical: 200-600 mm, Horizontal: 35-435 mm
Spindle-Column Distance 200 mm
Table Feed X,Y: 30-830 mm/min , Z:23-625 mm/min
Rapid Feedrate X,Y: 1335 mm/min, Z: 1000 mm/min
Table Feed Motor 10 N.m (Servo)
RAM Travel 450 mm
Machine Dimensions(WxDxH) 1820x1680x2350 mm
Net Weight 1800 Kg
