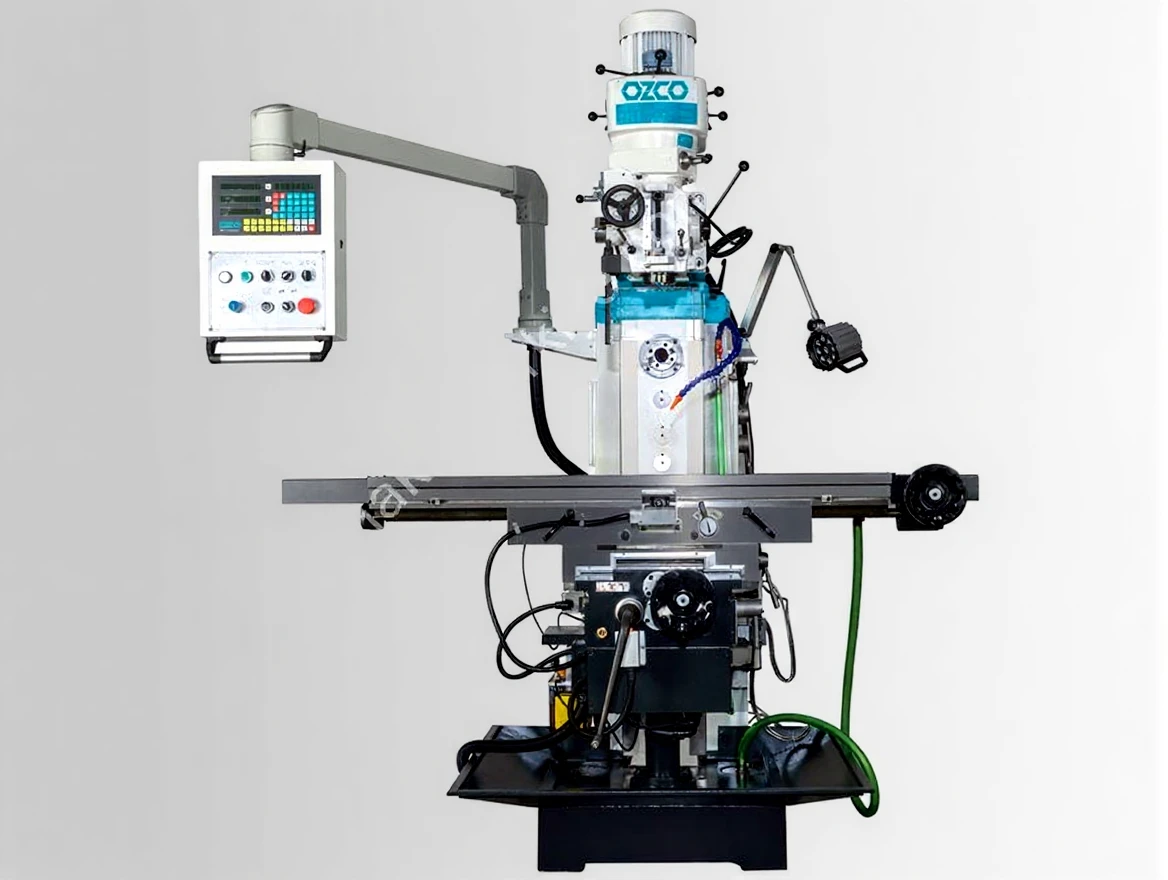

Ozco Fr5 Servo Universal Mold Maker Milling Machine
| Brand | Ozco |
|---|---|
| Model Type |
FR5 Servo |
Description
| Motor Power | Vertical: 3.75 kW, Horizontal: 3.0 kW, 400 V |
|---|---|
| Coolant Pump Power | 90 W |
| Table Dimensions | 1370×320 mm |
| Table Load Capacity (max.) | 300 kg |
| X-Axis Travel | 1000 mm |
| Y-Axis Travel | 360 mm |
| Z-Axis Travel | 400 mm |
| T Slot Size | 3×14 mm |
| Spindle Connection | Vertical: ISO40, Horizontal: ISO40 |
| Spindle Speed | Vertical: 65-4660, Horizontal: 35-1500 rpm |
| Gear | Vertical: 16, Horizontal: 12 |
| Quill Diameter | 105 mm |
| Quill Travel | 127 mm |
| Quill Feed | [ PHONE HIDDEN ] mm/rev |
| Spindle-Table Distance | Vertical: 200-600, Horizontal: 35-435 mm |
| Head Rotation Angle | ±90° |
| Spindle-Column Distance | 200 mm |
| Table Feed | X,Y: 30-830 mm/min, Z:23-625 mm/min |
| Table Rapid Feed | X,Y: 1335 mm/min, Z: 1000 mm/min |
| Table Feed Motor | 10 N.m (Servo) |
| RAM Travel | 450 mm |
| Machine Dimensions (WxDxH) | 1820x1680x2350 mm |
| Net Weight | 1800 kg |
- 3-axis automatic
- 3-axis digital readout
- Taiwan manufacture strong milling head
- Height adjustable safety switch guard
- Control panel
- Automatic lubrication
- Cooling system
- Lighting
- Chip tray
- Compliant with CE standards
