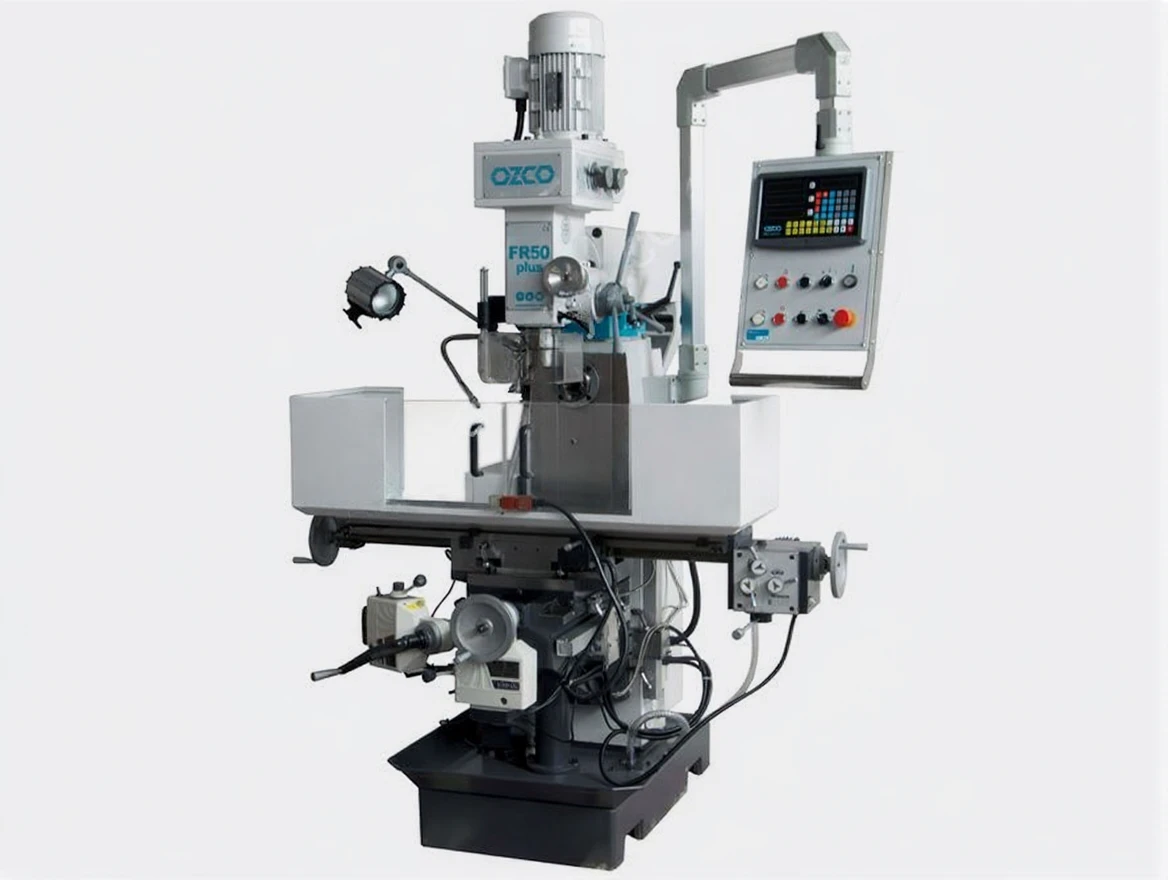

Ozco FR50 Plus Universal Moulder Milling Machine Table
| Brand | Ozco |
|---|---|
| Model Type |
FR50 Plus |
Description
OZCO FR50 Plus Universal Mold Milling Machine
OZCO FR50 Plus Universal Mold Milling Machine Capacity
X-axis movement is 580 mm, Y-axis movement is 230 mm, Z-axis movement is 340 mm.
OZCO FR50 Plus Universal Mold Milling Machine Shipping Content
Mold clamping set, Vise, 11-piece collet set and Toolbox are included.
OZCO FR50 Plus Universal Mold Milling Machine General Features
X-axis transmission-automatic, Y-axis electric motor-automatic, Z-axis electric motor-automatic, Adjustable height safety switch guard, Safety switch table protection system, 3-axis digital coordinate reader, Control panel, Cooling system, Illumination, Compliant with CE standards.
Technical Specifications FR50 Plus Universal Mold Milling Machine
Motor Power Vertical: 1.5 kW, Horizontal: 1.5 kW, 400 V
Cooling Pump Power 40 kW
Table Dimensions 1000×240 mm
X Axis Movement 580 mm
Y Axis Movement 230 mm
Z Axis Movement 340 mm
T Slot Dimensions 4×14 mm
Spindle Connection Vertical: ISO40, Horizontal: ISO40
Spindle Speed Vertical: 115-1750 rpm, Horizontal: 60-1350 rpm
Speeds Vertical: 8, Horizontal: 9
Quill Movement 120 mm
Head Rotation Angle + – 90°
Spindle-Table Distance 60-360 mm
Spindle-Column Distance 250-650 mm
Table Feed X:24-720 mm/min
Machine Dimensions(WxDxH) 1360x1150x2080 mm
Net Weight 900 Kg
