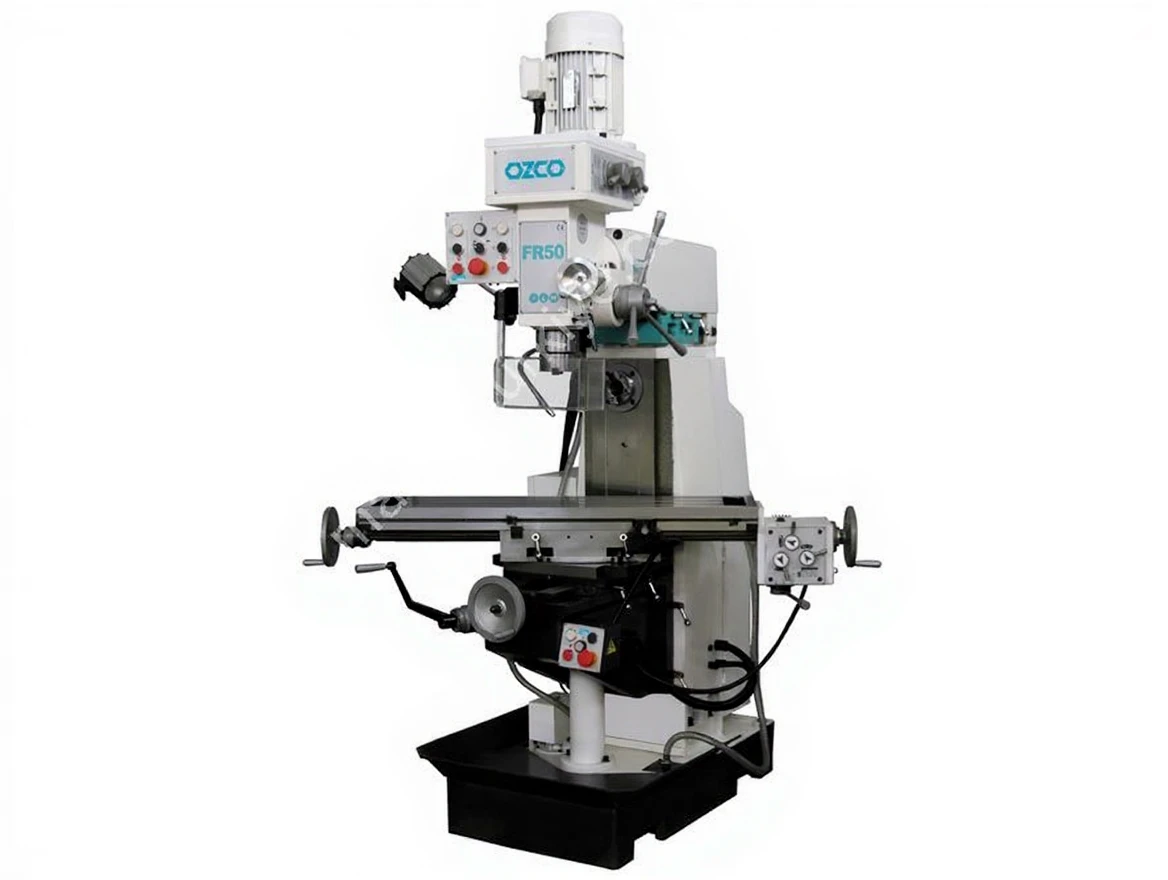

Ozco FR50 Universal Moulder Milling Machine Table
| Brand | Ozco |
|---|---|
| Model Type |
FR50 |
Description
OZCO FR50 Universal Milling Machine
OZCO FR50 Universal Milling Machine Capacity
X-axis movement is 580 mm, Y-axis movement is 230 mm, Z-axis movement is 340 mm.
OZCO FR50 Universal Milling Machine Shipment Scope
Mold clamping set, Vise, 11-piece collet set, and Tool kit included.
OZCO FR50 Universal Milling Machine General Features
X-axis with gearbox-automatic, Height-adjustable safety switch guard, Cooling system, Lighting, Compliant with CE standards.
Technical Specifications FR50 Universal Milling Machine
Motor Power Vertical: 1.5 kW, Horizontal: 1.5 kW, 400 V
Cooling Pump Power 40 kW
Table Dimensions 1000×240 mm
X-axis Movement 580 mm
Y-axis Movement 230 mm
Z-axis Movement 340 mm
T Slot Dimensions 4×14 mm
Spindle Connection Vertical: ISO40, Horizontal: ISO40
Spindle Speed Vertical:115-1750 rpm, Horizontal:60-1350 rpm
Gears Vertical:8, Horizontal:9
Quill Travel 120 mm
Head Tilt Angle + – 90°
Spindle-Table Distance 60-360 mm
Spindle-Column Distance 250-650 mm
Table Feed X:24-720 mm/min
Machine Dimensions(WxDxH) 1360x1150x2080 mm
Net Weight 900 Kg
