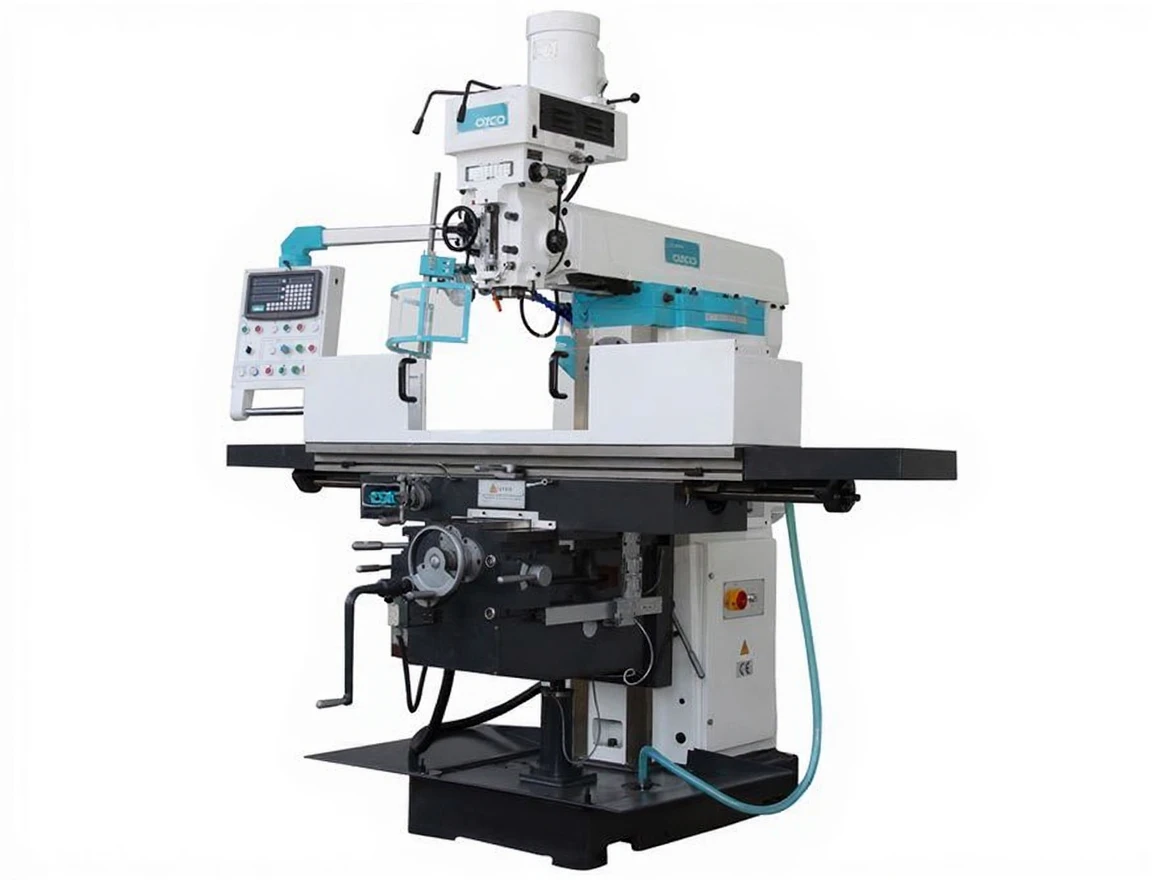

Ozco Fr6 Servo Universal Molder Milling Machine
| Brand | Ozco |
|---|---|
| Model Type |
FR6 Servo |
Description
| Engine Power | Vertical: 5.5 kW, Horizontal: 5.5 kW, 400 V |
|---|---|
| Cooling Pump Power | 90w |
| Table Dimensions | 1600x360mm |
| Table Load Capacity (max.) | 400kg |
| X Axis Movement | 1300mm |
| Y Axis Movement | 300mm |
| Z Axis Movement | 400mm |
| T Slot Dimension | 3x18mm |
| Shaft Connection | Vertical: ISO40, Horizontal: ISO50 |
| Spindle Speed | Vertical:60-3600, Horizontal:60-1800 rpm |
| Stage | Vertical:12, Horizontal:12 |
| Pinol Movement | 127mm |
| Head Rotation Angle | ±90° |
| Distance Between Spindle and Table | Vertical:200-650 mm, Horizontal:20-470 mm mm |
| Table Feeding | X:30-750 mm/min, Y:20-500 mm/min, Z:15-371 mm/min |
| Table Serial Feeding | X:1200 mm/min, Y:800 mm/min, Z:600 mm/min |
| RAM Movement | 550mm |
| Table Feeding Motor | 15 N.m (Servo) |
| Machine Dimensions (LxWxH) | 2500x2100x2500 rpm |
| Net Weight | 2850kg |
- 3 axis servo motor-automatic
- X,Y axis ball bearing
- 3 axis digital coordinate reader
- Taiwan made milling head
- Control Panel
- automatic lubrication
- cooling system
- Lighting
- chip hopper
- CE electrical system
