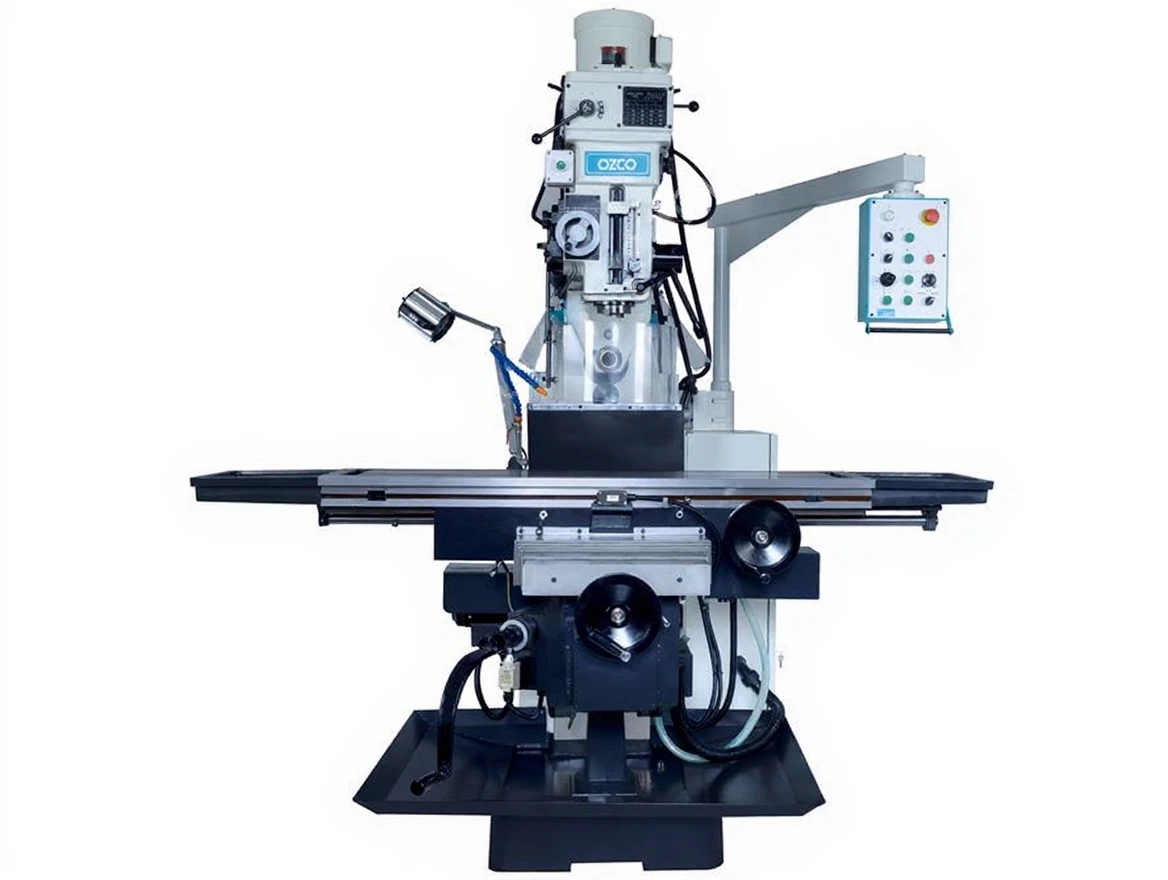

Ozco Fr7 Pro Üniversal Kalıpçı Freze Tezgahı
| Brand | Ozco |
|---|---|
| Model Type |
FR7 PRO |
Description
| Motor Power | Vertical: 3.75 kW, Horizontal: 3.75 kW, 400 V |
|---|---|
| Table Dimensions | 1470×300 mm |
| Table Load Capacity (max.) | 400 kg |
| X Axis Movement | 1120 mm |
| Y Axis Movement | 500 mm |
| Z Axis Movement | 440 mm |
| T Slot Dimensions | 3×18 mm |
| Spindle Connection | Vertical: ISO40, Horizontal: ISO40 |
| Spindle Speed | Vertical: 62-3000, Horizontal: 60-1440 rpm |
| Gear | Vertical: 16, Horizontal: 9 |
| Quill Movement | 140 mm |
| Head Swivel Angle | ±45° |
| Spindle-Table Distance | Vertical: 85-505, Horizontal: 25-395 mm |
| Table Feeding | X,Y: 750 W servo motor, Z:750 W rapid motor |
| Machine Dimensions (LxWxH) | 2070x2050x2600 rpm |
| Net Weight | 2600 kg |
- X and Y axes with ball screw-Japanese origin
- Yaskawa servo motor-driven, automatic
- Z axis rapid motor-automatic
- Height adjustable safety liquid-cooled guard
- Schneider electrical system
- Turcite-B coated slides
- Lighting
- Cooling system
- Chip tank
- Compliant with CE standards
- MADE IN TAIWAN
