Ozco Fr7v Pro Universal Mold Cutter Mill
| Brand | Ozco |
|---|---|
| Model Type |
FR7V PRO |
Description

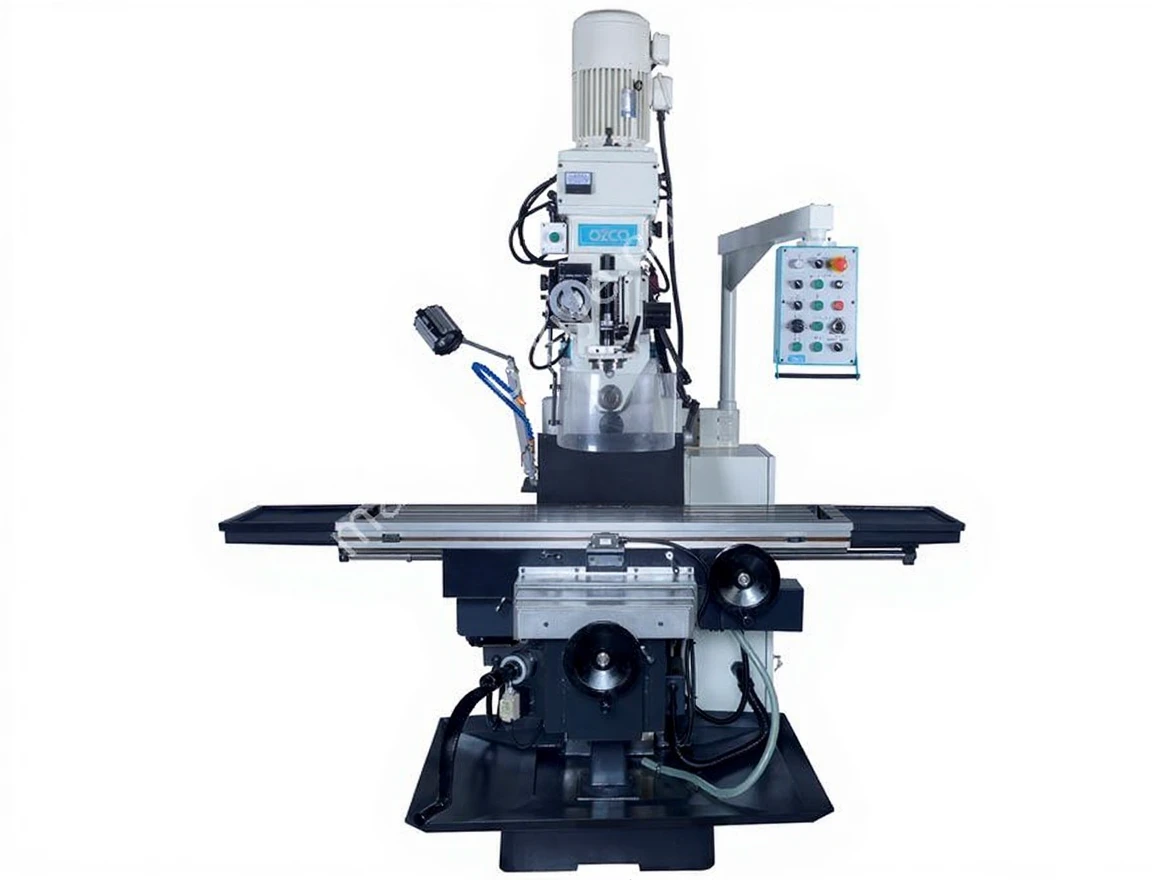

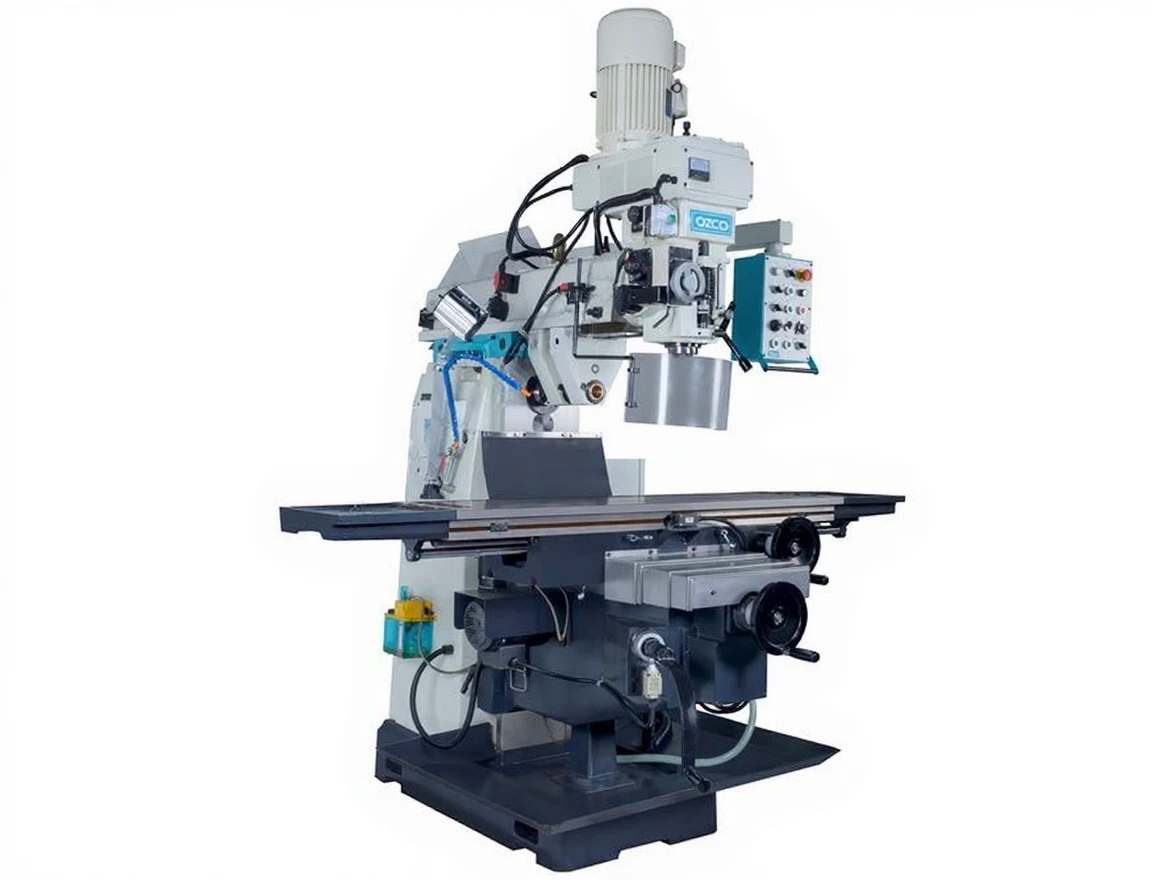

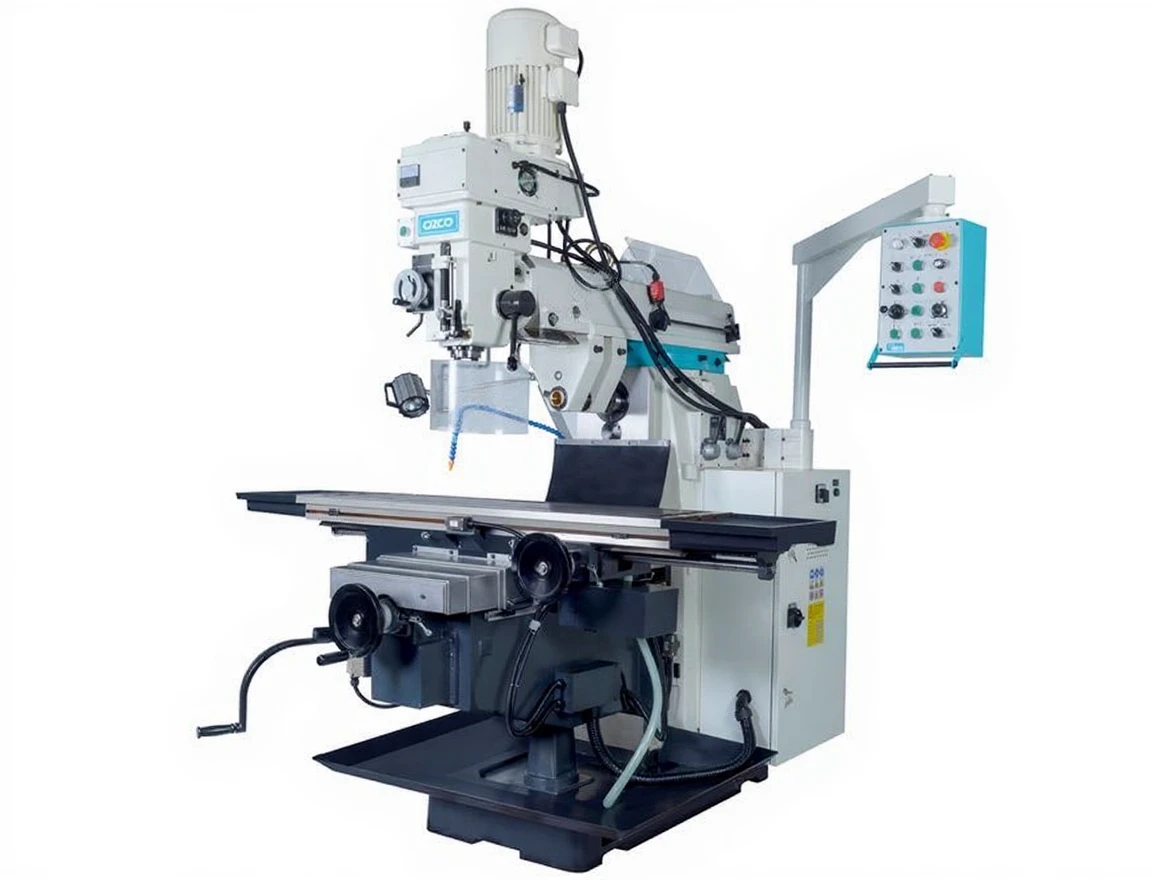

OZCO FR7V Pro Universal Mold Milling Machine
OZCO FR7V Pro Universal Mold Milling Machine Capacity
X axis travel 1120 mm, Y axis travel 500 mm, Z axis travel 440 mm.
OZCO FR7V Pro Universal Mold Milling Machine Shipping Content
15 pieces ISO 40 spindle set, Mold clamping kit, Vise, Tool set
OZCO FR7V Pro Universal Mold Milling Machine General Features
X and Y axes ball screw-Japanese origin, Yaskawa servo motors, automatic, Z axis rapid motor-automatic, Height adjustable safety switch guard, Schneider electrical system, Turcite-B coated slides, Lighting, Cooling system, Chip basin, Compliant with CE norms, MADE IN TAIWAN
Technical Specifications FR7V Pro Universal Mold Milling Machine
Motor Power Vertical:3.75 kW, Horizontal:3.75 kW, 400 V w
Table Dimensions 1470×300 mm
Table Load Capacity (max.) 400 kg.
X Axis Travel 1120 mm
Y Axis Travel 500 mm
Z Axis Travel 440 mm
T Slot Dimensions 3×18 mm
Spindle Connection Vertical: ISO40, Horizontal: ISO40
Spindle Speed Vertical:60-3600 rpm (vario), Horizontal:60-1800 rpm
Gear Ratio Vario, Horizontal:9
Quill Travel 140 mm
Head Tilt Angle + – 45°
Spindle-Table Distance Vertical:85-505 mm, Horizontal:25-395 mm
Table Feeding X,Y: 750 W servo motor, Z:750 W rapid motor
Machine Dimensions(WxDxH) 2070x2050x2600 rpm
Net Weight 2700 kg
