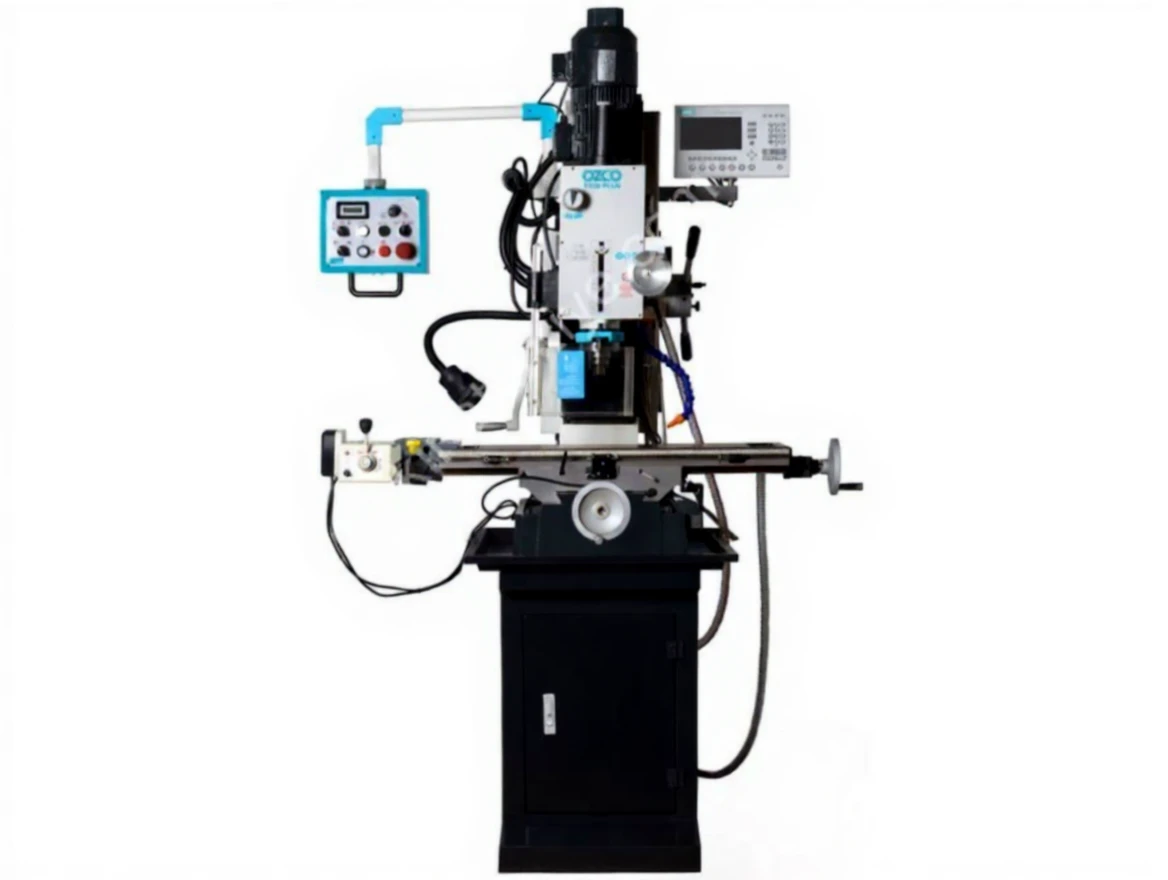

Ozco Fs28 Plus Masaüstü Freze Tezgahı
| Brand | Ozco |
|---|---|
| Model Type |
FS28 Plus |
Description
| Motor Power | 1.5 kW, 400 V |
|---|---|
| Drilling Capacity | 32 mm |
| Finger Milling Capacity | 28 mm |
| Surface Milling Capacity | 63 mm |
| Table Dimensions | 800×240 mm |
| X-Axis Movement | Manual: 560, Automatic: 480 mm |
| Y-Axis Movement | 200 mm |
| Z-Axis Movement | 430 mm |
| T Slot Size | 3×14 mm |
| Spindle Taper | MK4 |
| Spindle Speed | 75-2500 rpm |
| Speed | 2 (Variable Speed Setting) |
| Quill Movement | 120 mm |
| Quill Feeds | 0.10, 0.18, 0.26 mm/rev |
| Head Swivel Angle | ±45° |
| Spindle-Table Distance | 460 mm |
| Spindle-Column Distance | 275 mm |
| Machine Dimensions (WxDxH) | 1240x930x2100 mm |
| Net Weight | 480 kg |
- Variable speed adjustment(digital speed indicator)
- Heavy cast body
- Powerful motor
- X-axis electric motorized – automatic
- Z-axis electric motorized – automatic
- LCD digital display 3-axis coordinate reader
- Guide pull mode
- Height adjustable safety fluid shield
- Cooling system
- Lighting
- Control panel
- Steel table attached to the machine
- Compliant with CE norms
