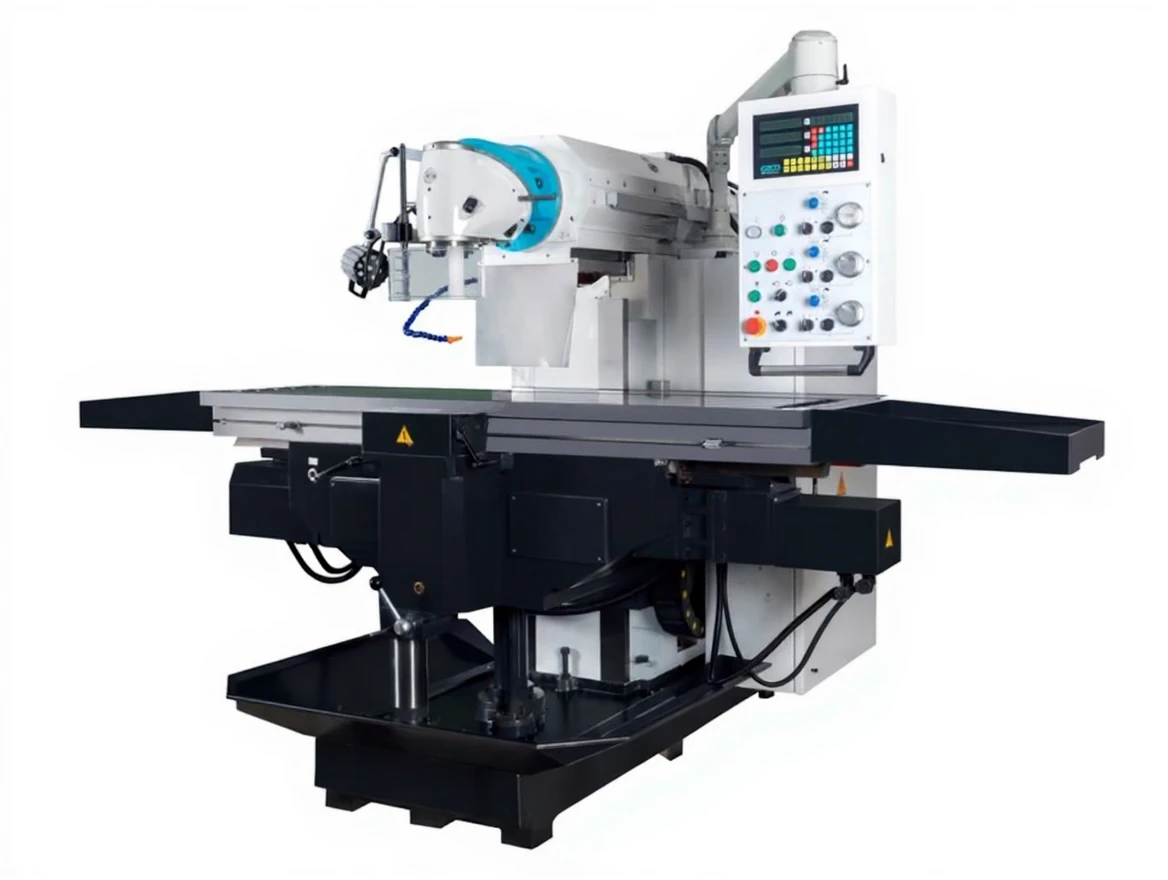

Ozco Fx500 Servo Üniversal Koç Kafa Freze Tezgâhı
| Brand | Ozco |
|---|---|
| Model Type |
FX500 Servo |
Description
| Motor Power | 7.5 kW 400 V |
|---|---|
| Cooling Pump Power | 100 w |
| Table Dimensions | 2000×500 mm |
| Table Load Capacity (max.) | 1800 kg |
| X Axis Movement | 1400 mm |
| Y Axis Movement | 700 mm |
| Z Axis Movement | 500 mm |
| T Slot Dimensions | 5×18 mm |
| Spindle Connection | ISO50 |
| Spindle Speed | 30-2050 rpm |
| Gear | 27 |
| Head Rotation Angle | 360° |
| Spindle-Table Distance | 50-550 mm |
| Spindle-Column Distance | 47-745 mm |
| Table Feed | X,Y: 10-1000 mm/min, Z:5-500 mm/min |
| Table Rapid Feed | X,Y: 2200 mm/min, Z:1100 mm/min |
| Table Feed Motor | X,Y: 15 N.m, Z: 18 N.m (Servo) |
| RAM Movement | 500 mm |
| Machine Dimensions (WxDxH) | 2650x2850x2100 mm |
| Net Weight | 5500 kg |
- 3 Axis separate servo motor-automatic
- 3 axis precision ball screw
- Extra supporting column
- Precision table with 1800 kg load capacity
- Powerful milling head
- 3 axis digital coordinate reader
- Height adjustable safety swivel guard
- Control panel
- Automatic lubrication
- Cooling system
- Lighting
- Chip tray
- Compliant with CE norms
