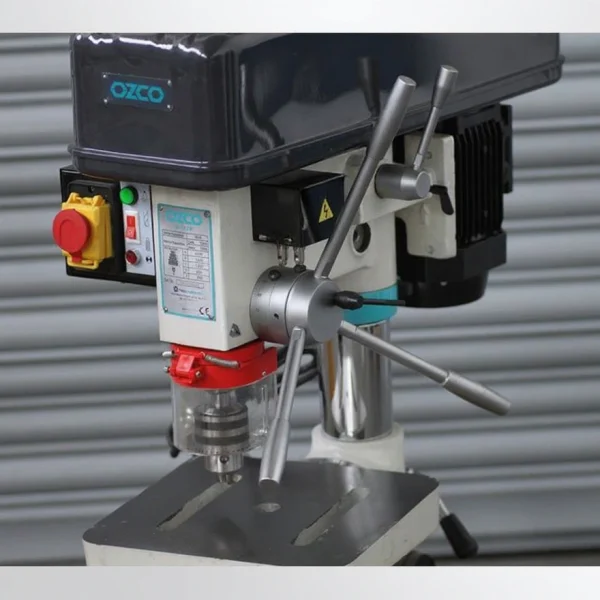

Ozco M20tp Guide Pull Drill
| Brand | Ozco |
|---|---|
| Model Type |
M20TP |
Description
| Motor Power | 750 W, 380 V |
|---|---|
| Operation Type | Belt driven |
| Drilling Capacity | 20 mm |
| Guide Capacity | M16 |
| Spindle Taper | MK2 |
| Spindle Movement/Stroke | 125 mm |
| Spindle-Column Distance | 240 mm |
| Spindle-Table Distance | 315 mm |
| Spindle-Base Distance | 560 mm |
| Column Diameter | 70 mm |
| Speed | 290-2150 rpm |
| Gear | 5 |
| Table Dimensions | 280×300 mm |
| Base Dimensions | 590×375 mm |
| Packaging Dimensions | 820x480x1020 mm |
| Net Weight | 140 kg |
- Complies with CE standards
- Emergency Stop Button
- Safety switch with shield/chuck guard
- Safety switch belt pulley cover
- Casting table that can rotate 360 degrees around its axis and tilt ± 45 degrees
- Casting base that ensure low vibration and stable operation
- Durable high-efficiency copper wire wrapped motor
- Double-sided motor belt tension adjustment
- Depth measurement and locking system
- Height adjustable shield
- Aluminum belt pulley cover
- High quality casting table
- Precision keyless chuck
