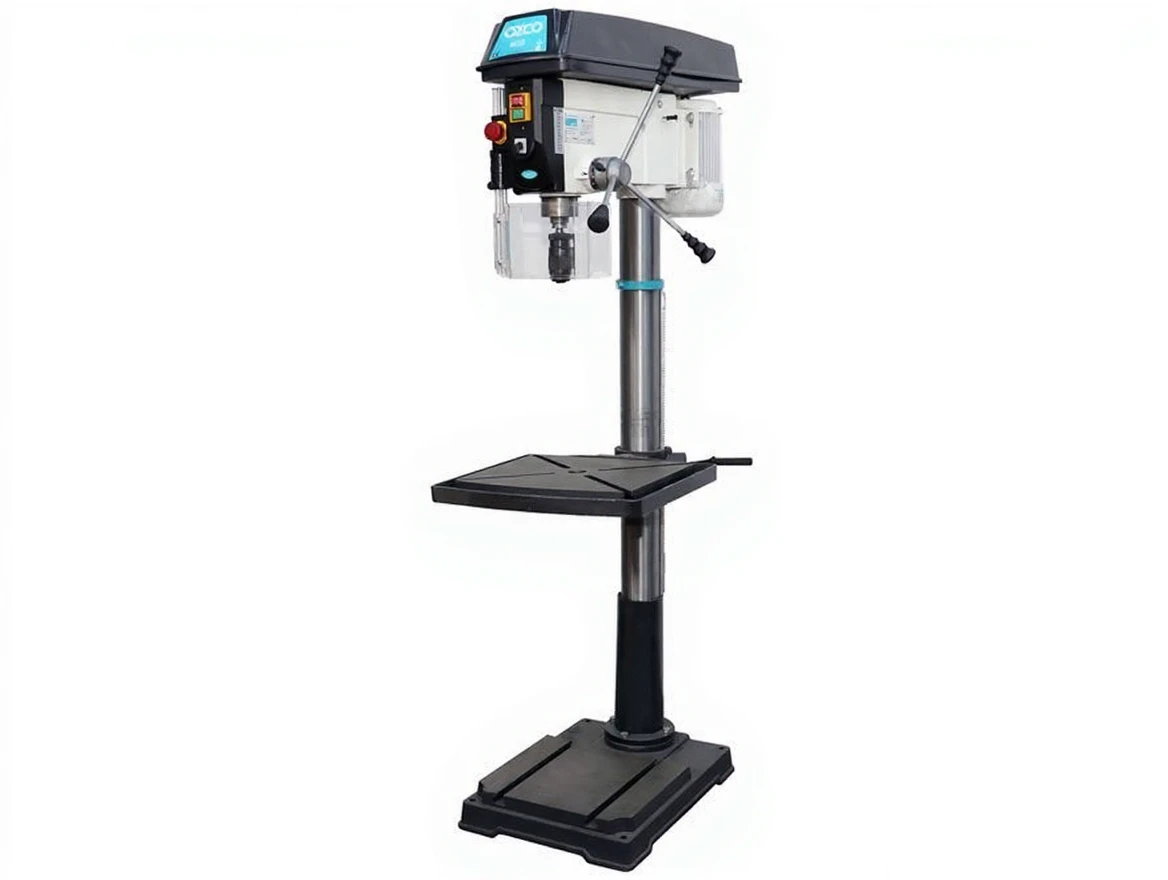

Ozco M35 Column Drill Table
| Brand | Ozco |
|---|---|
| Model Type |
M35 |
Description
| Motor Power | 1.5 kW, 400 V |
|---|---|
| Operation Type | Belt-driven |
| Drilling Capacity | 35 mm |
| Distance Spindle-Column | 255 mm |
| Spindle Taper | MK4 |
| Spindle Movement/Stroke | 120 mm |
| Speed | 150-2450 rpm |
| Speed Levels | 12 |
| Table Size | 420×475 mm |
| T Slot Size | 14 mm |
| Table Rotation | ±45° / 360° |
| Spindle-Table Distance | 750 mm |
| Spindle-Base Distance | 1210 mm |
| Base Size | 560×450 mm |
| Column Diameter | 92 mm |
| Length x Width x Height | 790x470x1730 mm |
| Net Weight | 145 kg |
- Compliant with CE standards
- Emergency Stop Button
- Safety switch protected guard/chuck guard
- Safety switch protected belt-pulley cover
- Height adjustable guard
- Double-sided motor belt tension adjustment
- Durable, high efficiency copper-wound motor
- Right/Left rotation feature (Three-phase/400 V models)
- Cross “X” channel table
- Depth measuring and locking system
- Ergonomic, rubber grip handle for easy handling
- Aluminum belt-pulley cover
- High quality cast iron table
- Table that can rotate 360° around its own axis and can tilt up to ±45°
- Precision keyless chuck
- Cast iron base ensuring low vibration and stable operation
