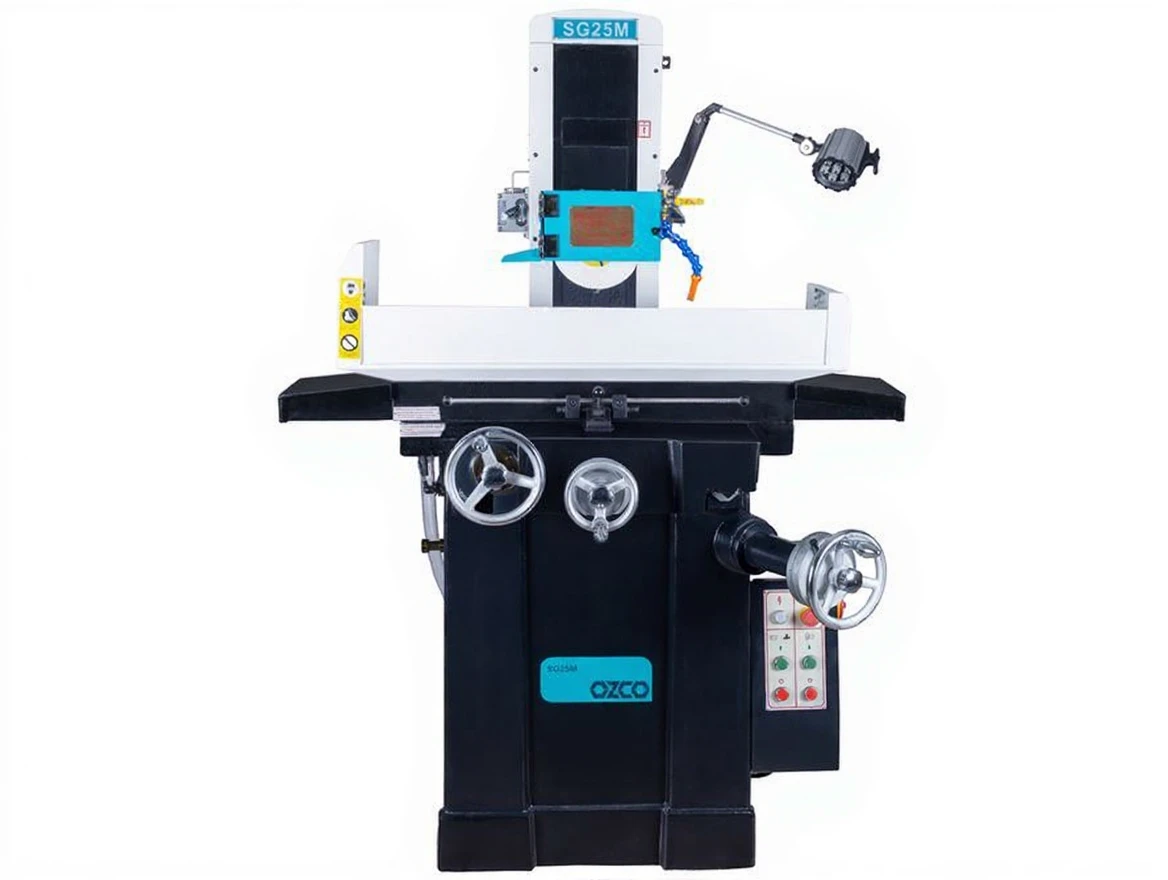

Ozco SG25M Surface Grinding Machine
| Brand | Ozco |
|---|---|
| Model Type |
SG25M |
Description
| Spindle Motor Power | 1.5kW, 400V |
|---|---|
| Table Dimensions | 200x460mm |
| Hydraulic Movement Along Table | 510mm |
| Table Transverse Manual Movement | 225mm |
| Distance Between Spindle and Table | 520mm |
| Table Load Capacity (max.) | 120kg |
| T Channel Dimensions | 1x14mm |
| Table Feed Speed | Manual |
| Y Axis Handwheel Advance Line | 0.02mm |
| Y Axis Handwheel One Turn | 5mm |
| Stone Dimensions, Diameter x Width x Hole Diameter | 200x25x32mm |
| Spindle Speed | 2850 rpm |
| Z Axis Handwheel Advance Line | 0.01mm |
| Z Axis Handwheel One Turn | 2mm |
| Cooling Engine Power | 90w |
| Dust Collection Motor Power | 550w |
| Area Measurements Covered | 1900x1900mm |
| Packaging Dimensions | 1470x1370x2160mm |
| Net Weight | 1200kg |
| Gross weight | 1400kg |
- Strong cast body, rigid structure
- Long-life NSK P4 type high precision bearing used in grinding spindle
- V type slides provide long life and smooth precision
- Hardened and ground table slides
- Slideways laminated with Teflon
- Central automatic lubrication system
- Tidy and easily accessible electrical panel
- Adjustable magnetic strength
- Safe control panel working with 24V voltage
- Compliant with CE norms
- Spindle motor: ABB brand
- Shaft bearing:Japanese NSK brand P4 grade precision ball bearing.
- Table Y axis spindle: P5 class precision ball bearing spindle
- Electrical system: SIEMENS
