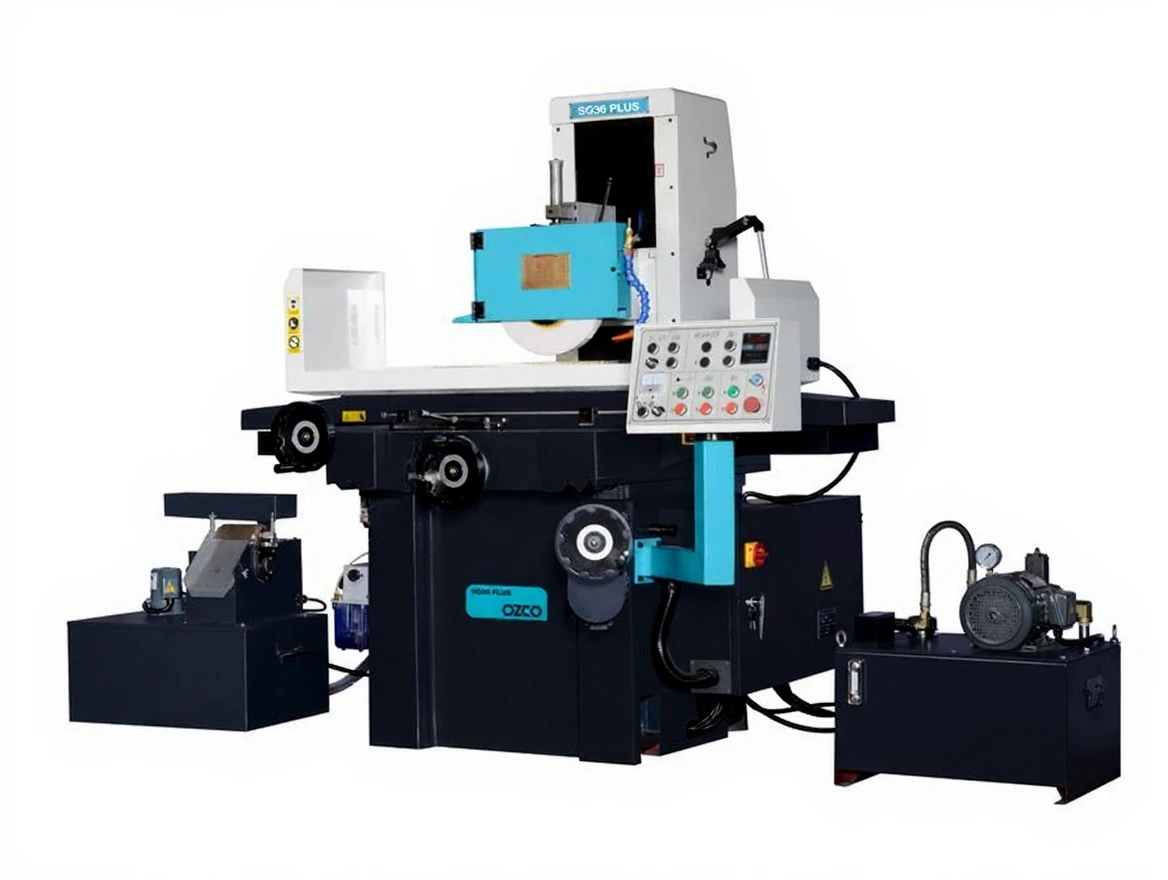

Ozco SG36 Plus Servo Surface Grinding machine
| Brand | Ozco |
|---|---|
| Model Type |
SG36 PLUS |
Description
| Motor Power | 4 kW, 400 V |
|---|---|
| Table Dimensions | 300×600 mm |
| Hydraulic Movement Along the Table Length | 660 mm |
| Manual Movement Across the Table | 340 mm |
| Distance Between Working Shaft and Table | 520 mm |
| Table Load Capacity (max.) | 420 kg |
| T Channel Dimensions | 1×14 mm |
| Table Feed Speed | 5~25 m/min |
| Y-Axis Handwheel Feed Line | 0.02 mm |
| Y-Axis Handwheel Rotation | 5 mm |
| Automatic Y-Axis Movement | 0.5~12 mm |
| Y-Axis Feed Speed | 790 mm/min |
| Grinding Wheel Dimensions, Diameter x Width x Hole Diameter | 355x40x127 mm |
| Spindle Speed | 1450 rpm |
| Z-Axis Handwheel Feed Line | 0.001 mm |
| Z-Axis Handwheel Rotation | 0.5 mm |
| Automatic Step Movement | 0.005~0.05 mm (8 steps, electronically selectable) |
| Z-Axis Feed Speed | 230 mm/min |
| Hydraulic Motor Power | 1.5 kW |
| Dust Collection Motor Power | 550 W |
| Cooling Motor Power | 90 W |
| Y-Axis Feed Motor Power | 90 W |
| Z-Axis Motor Power | 4NM Servo Motor W |
| Footprint Dimensions | 2600×2500 mm |
| Packaging Dimensions | 2150x1940x2195 mm |
| Net Weight | 1910 kg |
| Gross Weight | 2210 kg |
- X-axis hydraulic
- Easy-to-use servo control system
- Automatic step precision reaching 0.001 mm
- Strong cast body, rigid structure
- Long-life NSK P4 type high-precision bearings used in grinding spindle
- V-type guides providing long life and smooth precision
- Hardened and ground table guides
- Teflon-coated slide paths
- Central automatic lubrication system
- Separate hydraulic tank preventing transfer of heat and vibration to the machine
- Neat and easily accessible electrical panel
- Adjustable magnetic force
- Safe control panel operating with 24V voltage
- Compliant with CE standards
- Spindle motor: ABB brand
- Spindle bearing: Japanese NSK brand P4 grade precision ball bearing
- Table Y-axis spindle: P5 class precision ball screw
- Electrical system: SIEMENS
- Main hydraulic system: TAIWAN
