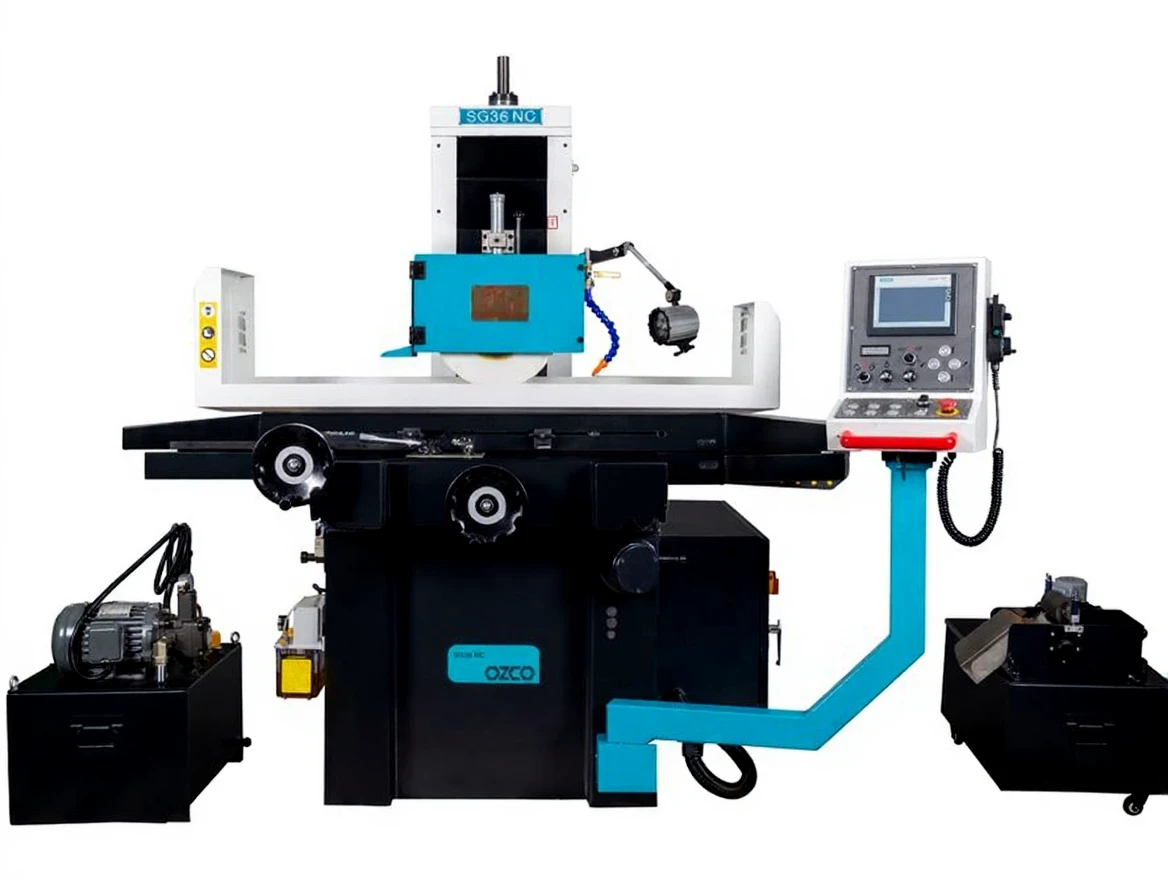

Ozco Sg36nc Satıh Taşlama Tezgahı
| Brand | Ozco |
|---|---|
| Model Type |
SG36NC |
Description
| Motor Power | 4 kW, 400 V |
|---|---|
| Table Dimensions | 300×600 mm |
| Hydraulic Movement Along Table Length | 660 mm |
| Manual Movement Across Table Width | 340 mm |
| Distance Between Work Shaft And Table | 520 mm |
| Table Load Capacity (max.) | 420 kg |
| T Slot Dimensions | 1×14 mm |
| Table Feed Rate | 5~25 m/min |
| Y Axis Handwheel Feed Line | 0.02 mm |
| Y Axis Handwheel Per Turn | 5 mm |
| Automatic Y Axis Movement | 0.5~12 mm |
| Y Axis Feed Rate | 790 mm/min |
| Grinding Wheel Dimensions, Diameter x Width x Hole Diameter | 355x40x127 mm |
| Spindle Speed | 1450 rpm |
| Z Axis Handwheel Feed Line | 0.001 mm |
| Z Axis Handwheel Per Turn | 0.1 mm |
| Automatic Step Movement | 0.001~1 |
| Z Axis Feed Rate | 210 mm/min |
| Hydraulic Motor Power | 1.5 kW |
| Dust Collection Motor Power | 550 W |
| Cooling Motor Power | 90 W |
| Y Axis Feed Motor Power | 90 W |
| Z Axis Motor Power | 1 W |
| Footprint Dimensions | 2600×2500 mm |
| Packaging Dimensions | 2150x1940x2195 mm |
| Net Weight | 1910 kg |
| Gross Weight | 2210 kg |
- X Axis hydraulic
- Touchscreen SIEMENS PLC control system and servo motor driven vertical (Z axis) feed
- Automatic step precision reaching 0.001 mm
- Strong cast iron body, rigid structure
- High precision NSK P4 type long life bearing used in grinding spindle
- V type guide ways ensuring long life and smooth precision
- Hardened and ground table slides
- Teflon laminated slide ways
- Central automatic lubrication system
- Separate hydraulic tank preventing heat and vibration transmission to the machine
- Neat and easily accessible electrical panel
- Adjustable magnetic chuck
- Safe control panel operating at 24V voltage
- Compliant with CE standards
- Spindle motor: ABB brand
- Spindle bearing: Japanese NSK brand P4 level precision ball bearing.
- Table Y axis spindle: P5 class precision ball screw
- Electrical system: SIEMENS
- Main hydraulic system: TAIWAN
