Ozco Sg48 Servo Surface Grinding Machine

Brand

Ozco

Model Type

SG48 Servo

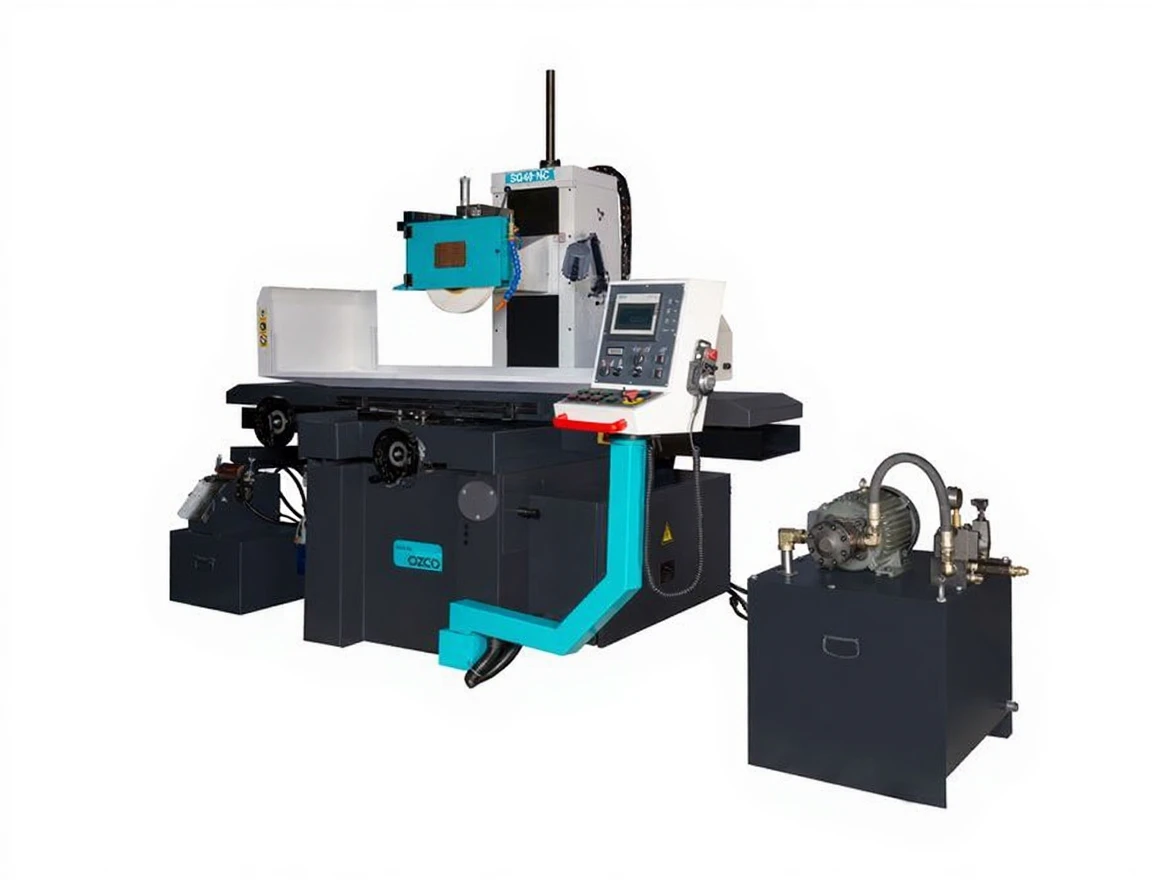

OZCO SG48 SURFACE GRINDING MACHINE

Ozco SG48 Surface Grinding Machine Description

X-axis hydraulic, User-friendly servo control system, Automatic step precision up to 0.001 mm, Strong cast body, rigid structure, Long-life NSK P4 type high precision bearings used in grinding spindle, V-type slides providing long-life and smooth precision, Hardened and ground table slides, Teflon-coated slide paths, Central automatic lubrication system, Separate hydraulic tank preventing transmission of heat and vibration to the machine, Regular and easily accessible electrical panel, Adjustable magnetic power, Safe control panel operating at 24V voltage, Compliant with CE standards, Spindle motor: ABB brand, Spindle bearing: Japanese NSK brand P4 grade precision ball bearing, Table Y-axis spindle: Precision ball bearing spindle of P5 class, Electrical system: SIEMENS, Main hydraulic system: TAIWAN

Ozco SG48 Surface Grinding Machine Scope of Shipment

Grinding stone, Grinding Flange, Balancing table, Balancing spindle, Hydraulic oil tank, Support bolt, Grinding pencil from head, Magnetic separator, Magnetic table, Cooling tank, Lighting, Slippers, Tools

Technical Specifications Ozco SG48 Surface Grinding Machine

Motor Power 5.5 kW, 400 V

Table Dimensions 400×800 mm

Longitudinal Hydraulic Movement of Table 850 mm

Transverse Manual Movement of Table 440 mm

Distance Between Work Spindle and Table 580 mm

Table Load Capacity (max.) 700 kg

T Slot Dimensions 3×14 mm

Table Feed Rate 5~25 m/min

Y-axis Handwheel Feed Line 0.02 mm

Y-axis Handwheel One Turn 5 mm

Automatic Y-axis Movement 0.5~12 mm

Y-axis Feed Rate 790 mm/min

Stone Dimensions, Diameter x Width x Hole Diameter 355x40x127 mm

Spindle Speed 1450 rpm

Z-axis Handwheel Feed Line 0.001 mm

Z-axis Handwheel One Turn 0.5 mm

Automatic Step Movement 0.005~0.05 mm (8 Levels, electronically selectable)

Z-axis Feed Rate 230 mm/min

Hydraulic Motor Power 2.2 kW

Dust Collection Motor Power 550 W

Cooling Motor Power 90 W

Y-axis Feed Motor Power 90 W

Z-axis Motor Power 4NM Servo Motor W

Footprint Dimensions 3600×2600 mm

Packaging Dimensions 2790x2225x2195 mm

Net Weight 2850 kg

Gross Weight 3150 kg
