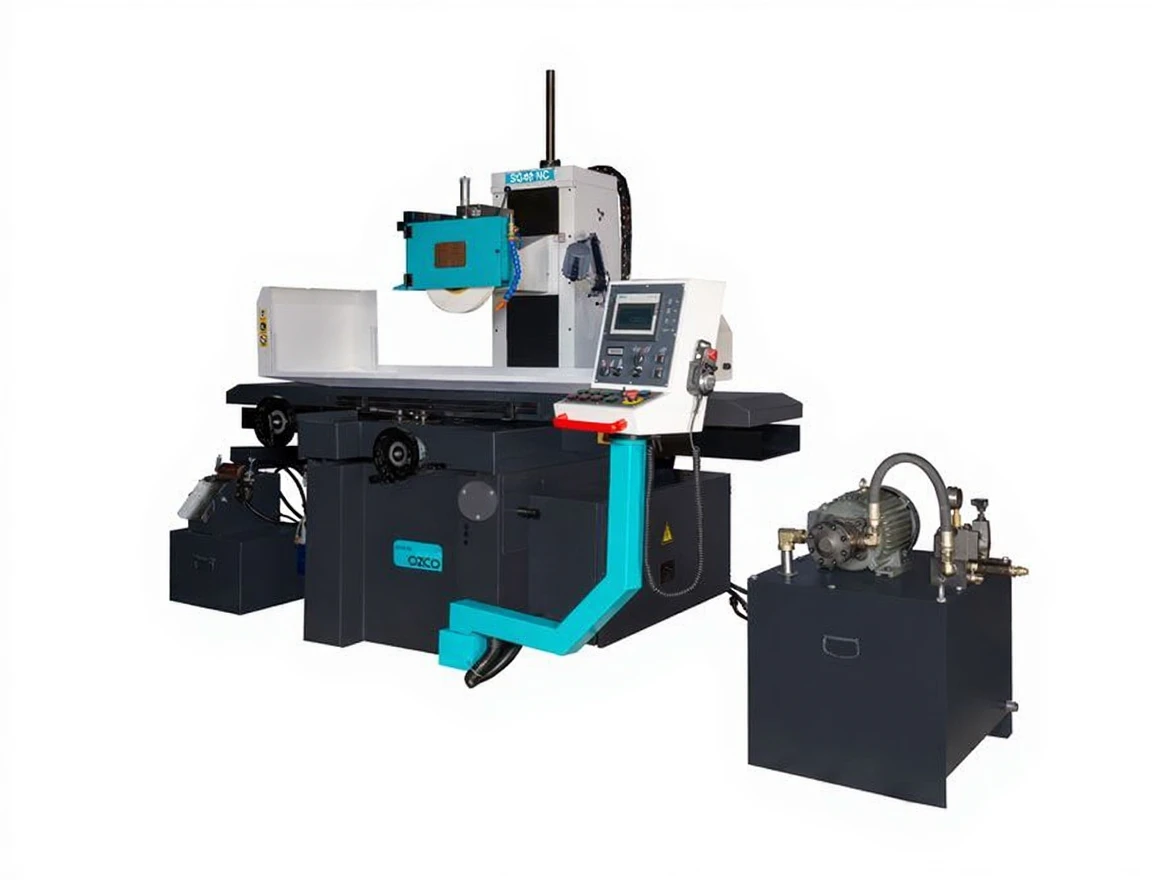

Ozco SG48 Servo Surface Grinding machine
| Brand | Ozco |
|---|---|
| Model Type |
SG48 Servo |
Description
| Spindle Power | 5.5 kW, 400 V |
|---|---|
| Table Dimensions | 400×800 mm |
| Longitudinal Hydraulic Movement of Table | 850 mm |
| Transverse Manual Movement of Table | 440 mm |
| Distance Between Work Spindle and Table | 580 mm |
| Table Load Capacity (max.) | 700 kg |
| T-Slot Dimensions | 3×14 mm |
| Table Feed Rate | 5~25 m/min |
| Y Axis Handwheel Feed Line | 0.02 mm |
| Y Axis Handwheel Per Revolution | 5 mm |
| Automatic Y Axis Movement | 0.5~12 mm |
| Y Axis Feed Speed | 790 mm/min |
| Grinding Wheel Dimensions, Diameter x Width x Hole Diameter | 355x40x127 mm |
| Spindle Speed | 1450 rpm |
| Z Axis Handwheel Feed Line | 0.001 mm |
| Z Axis Handwheel Per Revolution | 0.5 mm |
| Automatic Step Movement | 0.005~0.05 mm (8 Steps, electronically selectable) |
| Z Axis Feed Speed | 230 mm/min |
| Hydraulic Motor Power | 2.2 kW |
| Dust Collection Motor Power | 550 W |
| Cooling Motor Power | 90 W |
| Y Axis Feed Motor Power | 90 W |
| Z Axis Motor Power | 4NM Servo W |
| Floor Space Requirement | 3600×2600 mm |
| Packaging Dimensions | 2790x2225x2195 mm |
| Net Weight | 2850 kg |
| Gross Weight | 3150 kg |
- Easy-to-use servo control system
- Automatic step precision reaching 0.001 mm
- X axis hydraulic
- Sturdy cast body, rigid structure
- Long-life NSK P4 type high-precision bearings used on grinding spindle
- V-type slides for long life and smooth precision
- Hardened and ground table slides
- Teflon laminated slide tracks
- Central automatic lubrication system
- Separate hydraulic tank preventing heat and vibration transfer to the machine
- Neat and easily accessible electrical panel
- Adjustable magnetic force
- Control panel operating at 24V voltage for safety
- Compliant with CE regulations
- Spindle motor: ABB brand
- Spindle bearing: Japanese NSK brand P4 grade precision ball bearing
- Table Y-axis spindle: P5 class precision ball screw spindle
- Electrical system: SIEMENS
- Main hydraulic system: TAIWAN
