Automatic step movement, Hydraulic X-axis, Strong cast body, rigid structure, Long-lasting NSK P4 type high-precision bearing used on grinding spindle, V-type guides providing long life and smooth precision, Hardened and ground table guides, Teflon-coated guide paths, Central automatic lubrication system, Separate hydraulic tank preventing transfer of heat and vibration to the machine, Organized and easily accessible electrical panel, Adjustable magnetic power, Safe control panel operating at 24V voltage, CE compliant, Spindle motor: ABB brand, Spindle bearing: Japanese NSK brand P4 grade precision ball bearing, Table Y-axis spindle: P5 grade precision ball spindle, Electrical system: SIEMENS, Main hydraulic system: TAIWAN
Grinding wheel, Grinding wheel flange, Balancing table, Balancing spindle, Hydraulic oil tank, Support bolt, Grinding wheel dresser, Paper-filtered magnetic separator, Magnetic table, Cooling tank, Lighting, Shoes, Tools

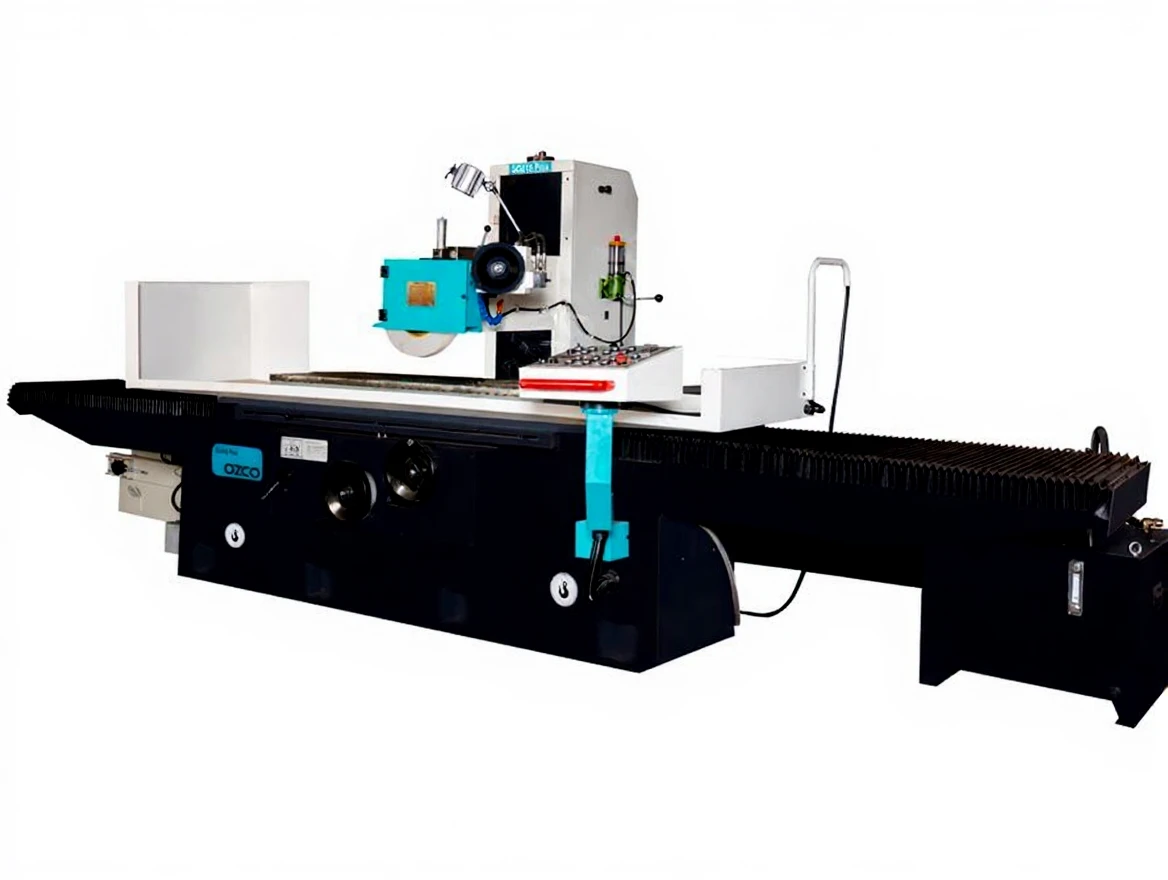

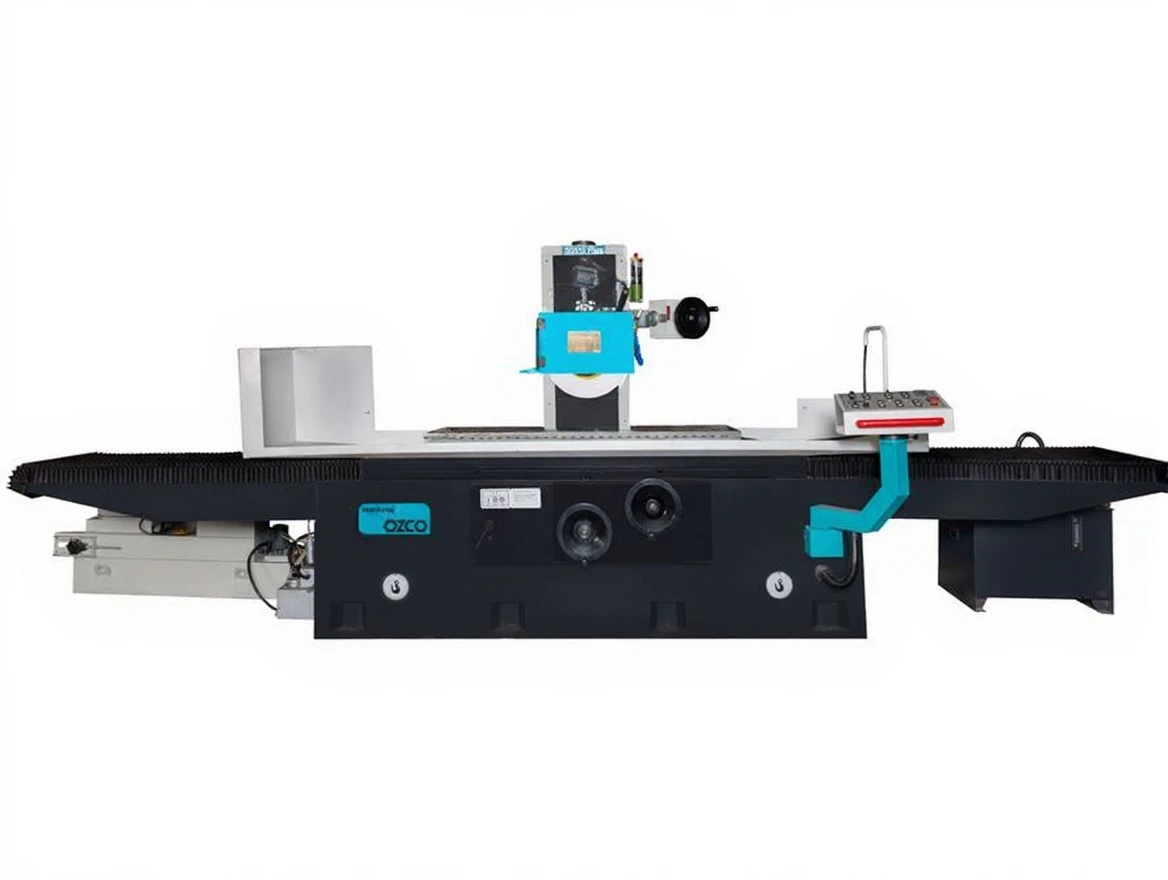

Technical Specifications Ozco SG510 Servo Flat Grinding Machine
Spindle Motor Power 7.5 kW, 400V
Table Dimensions 500×1000 mm
Longitudinal Hydraulic Table Movement 1140 mm
Transverse Manual Table Movement 540 mm
Distance Between Work Spindle and Table 590 mm
Table Load Capacity (max.) 700 kg
T Slot Dimensions 3×16 mm
Table Feed Rate 5~25 m/min
Y Axis Handwheel Incremental Line 0.02 mm
Y Axis Handwheel Per Revolution 5 mm
Automatic Y Axis Movement 0.5~12 mm
Y Axis Feed Rate 1250 mm/min
Stone Dimensions, Diameter x Width x Hole Diameter 355x40x127 mm
Spindle Speed 1450 rpm
Z Axis Handwheel Incremental Line 0.002 mm
Z Axis Handwheel Per Revolution 0.5 mm
Automatic Step Movement 0.005~0.04
Z Axis Feed Rate 230 mm/min
Hydraulic Motor Power 2.2 kW
Dust Collection Motor Power 550 W
Cooling Motor Power 90 W
Y Axis Feed Motor Power 370 W
Z Axis Motor Power 370 W
Footprint Dimensions 4445×2200 mm
Packaging Dimensions 3390x2255x2225 mm
Net Weight 5000 kg
Gross Weight 6000 kg
