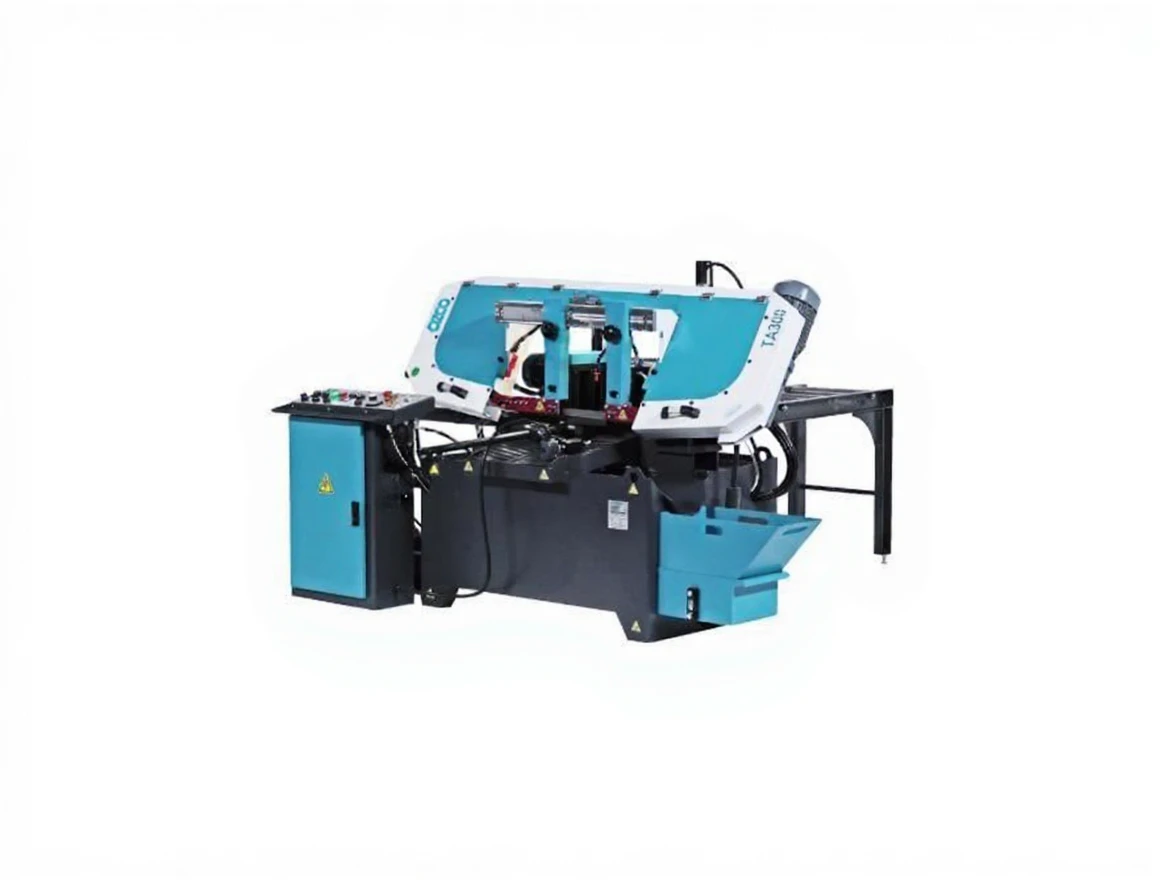

Ozco Ta300 Fully Automatic Band Saw (Straight Cut)
| Brand | Ozco |
|---|---|
| Model Type |
TA300 |
Description
| Main Motor Power | 1.5 kW, 380 V |
|---|---|
| Saw Blade Dimensions | 27×0.9×3660 mm |
| Cutting Capacity | Round: 300 mm; Square: 300 mm; Rectangular: 375×250 mm |
| Speed | 20-100 m/min RPM |
| Grade | Inverter/Infinite |
| Material Feed Height | 760 mm |
| Clamp Opening Range | 0-375 mm |
| Clamp Height | 190 mm |
| Driver Motor Power | 0.37 |
| Hydraulic Motor Power | 0.18 kW |
| Cooling Motor Power | 0.12 kW w |
| Machine Size | 2020x2560x1330 mm |
| Weight | 785 kg |
- Inverter speed adjustment/Variable speed system with infinite grade between 20-100 m/min
- Digital speed indicator
- Hydraulic/Automatic material clamping
- Hydraulic/Automatic head movement
- Automatic material feeding
- Ergonomic control panel for ease of use
- Special design cast pulleys
- Hydro-mechanical band tension
- Domestic production powerful motor
- Domestic production special design gearbox
- Powerful material feeding system reinforced with special design double bearing system and long-life feeding balls
- Material-specific clamping pressure adjustment with adjustable clamp pressure system
- Double bearing pressure band saw system increasing cutting accuracy
- High quality cooling motor from Italy
- Chip brush
- Schneider electric system
- Compliant with CE standards
- Made in Turkey
