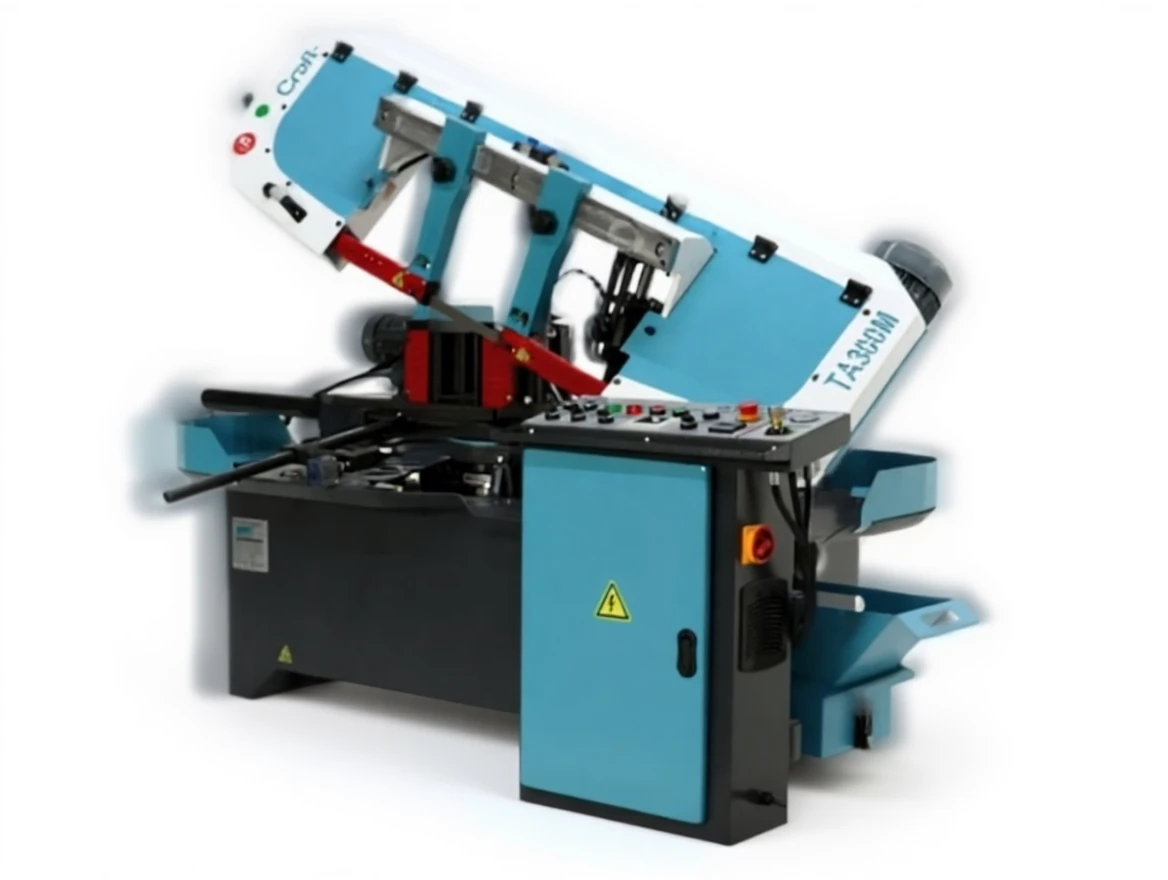

Ozco Ta300m Fully Automatic Band Saw (Angular Cut)
| Brand | Ozco |
|---|---|
| Model Type |
TA300M |
Description
| Main Motor Power | 1.5 kW, 380 V |
|---|---|
| Saw Blade Dimensions | 27×0.9×3960 mm |
| Cutting Capacity 0° | Round: 300 mm; Square: 300 mm; Rectangle: 330×240 mm |
| Cutting Capacity 45° | Round: 200 mm; Square: 180 mm; Rectangle: 160×270 mm |
| Cutting Angle | 0°-45° |
| Speed | 20-100 rev/min |
| Step | Inverter / Unlimited |
| Material Feeding Height | 760 mm |
| Clamp Opening Range | 0-330 mm |
| Clamp Height | 160 mm |
| Drive Motor Power | 0.37 kW |
| Hydraulic Motor Power | 0.18 kW |
| Cooling Motor Power | 0.12 w |
| Machine Dimensions | 2250x2590x1280 mm |
| Weight | 890 kg |
- Stepless step in the range of 20-100 m/min with inverter speed adjustment/Vario system
- Digital speed indicator
- Ergonomic control panel for ease of use
- Special design cast pulleys
- Hydro-mechanical band tensioning
- Domestic production powerful motor
- Domestic production special design reducer
- Material feeding system reinforced with special design double bearing system and long-life feeding balls
- Adjustable clamping pressure system with pressure adjustment suitable for material type
- Double bearing pressed band saw system that increases cutting accuracy
- High quality cooling motor of Italian origin
- Chip brush
- Schneider electrical system
- Compliant with CE standards
• Made in Turkey
