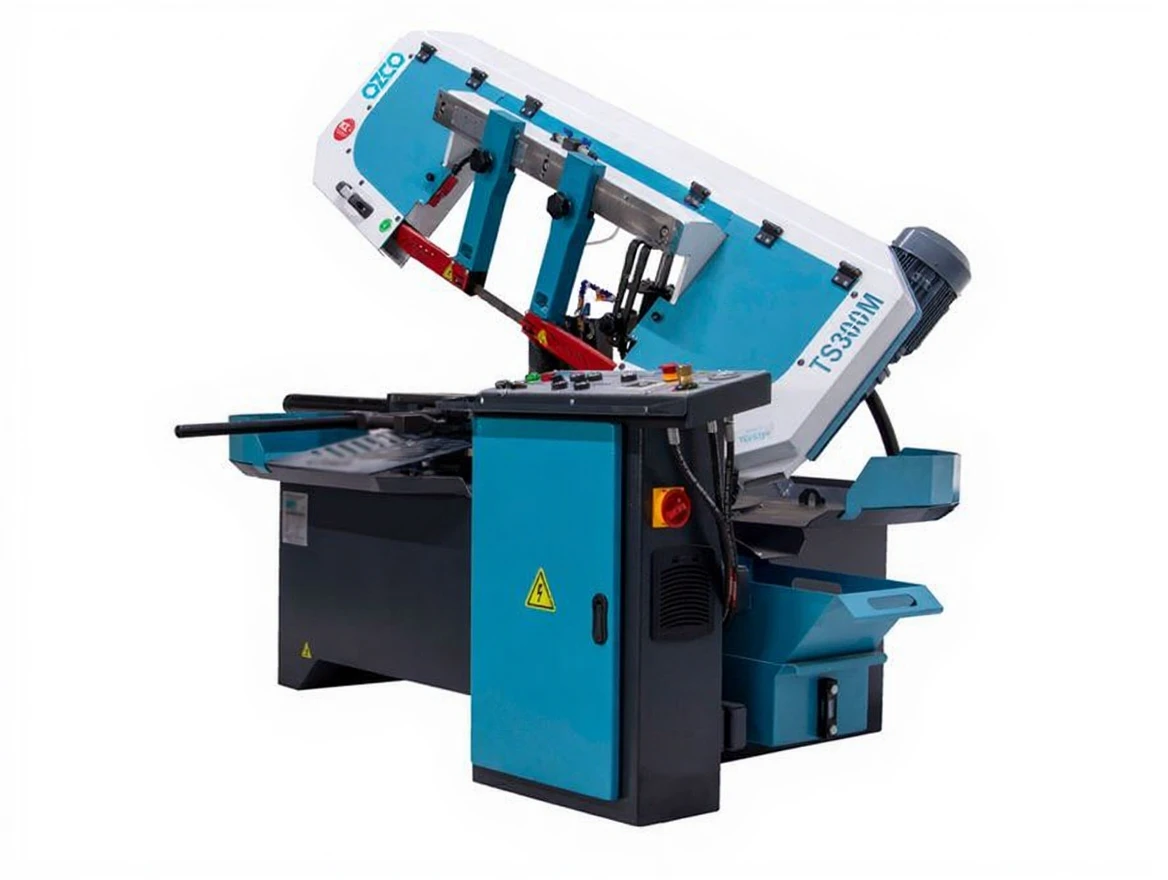

Ozco Ts300m Semi Automatic Band Saw (Angular Cut)
| Brand | Ozco |
|---|---|
| Model Type |
TS300M |
Description
| Main Motor Power | 1.5 kW, 380 V |
|---|---|
| Saw Blade Dimensions | 27×0.9×3960 mm |
| Cutting Capacity 0° | Round: 300mm; Square: 300mm; Rectangle: 360x240mm |
| Cutting Capacity 45° | Round: 230mm, Square: 220mm; Rectangle: 200x300mm |
| Cutting Angle | 0-45° |
| Speed | 20-100 rpm/min |
| Gear | Inverter/Infinite |
| Cutting Angle Adjustment | From the hub |
| Material Feed Height | 760 mm |
| Vise Opening Range | 0-410 mm |
| Vise Height | 185 mm |
| Driver Motor Power | – |
| Hydraulic Motor Power | 0.18 kW |
| Cooling Motor Power | 0.12 w |
| Machine Dimensions | 2340x1430x1280 mm |
| Weight | 825 kg |
- Inverter speed adjustment/Vario system with unlimited gear range of 20-100 m/min
- Digital speed indicator
- Hydraulic/Automatic material clamping
- Hydraulic/Automatic head movement
- Manual material feed
- Ergonomic control panel for ease of use
- Special design cast pulleys
- Hydro-mechanical band tensioning
- Domestic production powerful motor
- Domestic production special design reducer
- Material feed system reinforced with special design double bearing system and long-life feed balls
- Adjustable vise pressure system for appropriate clamping pressure according to material type
- Double bearing pressed band saw system that increases cutting precision
- High quality cooling motor from Italy
- Chip brush
- Schneider electrical system
- Compliant with CE standards
- Made in Turkey
