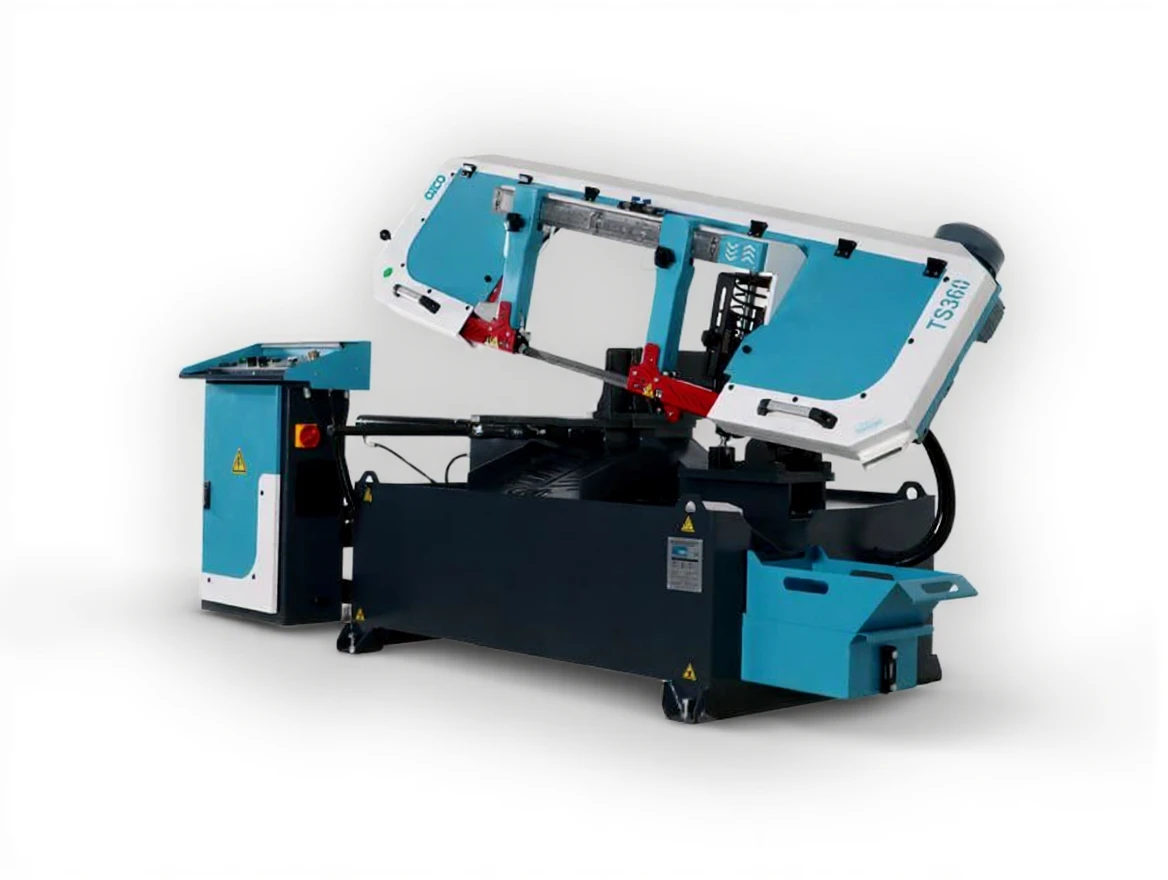

Ozco Ts360 Semi-Automatic Straight Cutting Band Saw

OZCO TS360 SEMI-AUTOMATIC STRAIGHT CUTTING BAND SAW

OZCO TS360 Semi-Automatic Straight Cutting Band Saw Description

Inverter speed adjustment/Vario system with infinite levels between 20-100 m/min, Digital speed indicator, Ergonomic control panel for ease of use, Special design cast pulleys, Hydro-mechanical band tensioning, Domestic production powerful motor, Domestic production special design reducer, Clamping pressure adjustment suitable for material type with adjustable clamp pressure system, Double bearing printed band saw system increasing cutting precision, High-quality cooling motor sourced from Italy, Sawdust brush, Schneider electrical system, Compliant with CE standards

OZCO TS360 Semi-Automatic Straight Cutting Band Saw Shipment Scope

5 Roll material stand 1.5 m, Bi-metal saw blade mounted on the machine

Technical Specifications OZCO TS360 Semi-Automatic Straight Cutting Band Saw

Motor Power     2.2 kW, 380 V

Cutting Angle Adjustment    45° from the vise

Head Descent Speed Adjustment/Feeding    Hydraulic

Saw Blade Dimensions     34×1.1×4560 mm

Cutting Capacity 0°     Round: 360mm; Square: 360×360 mm; Rectangle: 420×360 mm

Cutting Capacity 45°          Round: 280mm; Square: 280×280 mm; Rectangle: 280×360 mm

Speed       20 – 100 m/min RPM

Level            Inverter / Unlimited

Material Feeding Height             760 mm

Vise Opening Range        0-460 mm

Vise Height      230 mm

Drive Motor Power        0.37 kW

Hydraulic Motor Power       0.18 kW

Cooling Motor Power       0.12 kW

Machine Dimensions (WxDxH)        2480x1260x1330 mm

Weight    800 Kg
