Tool Manufacturing and Grinding Machine

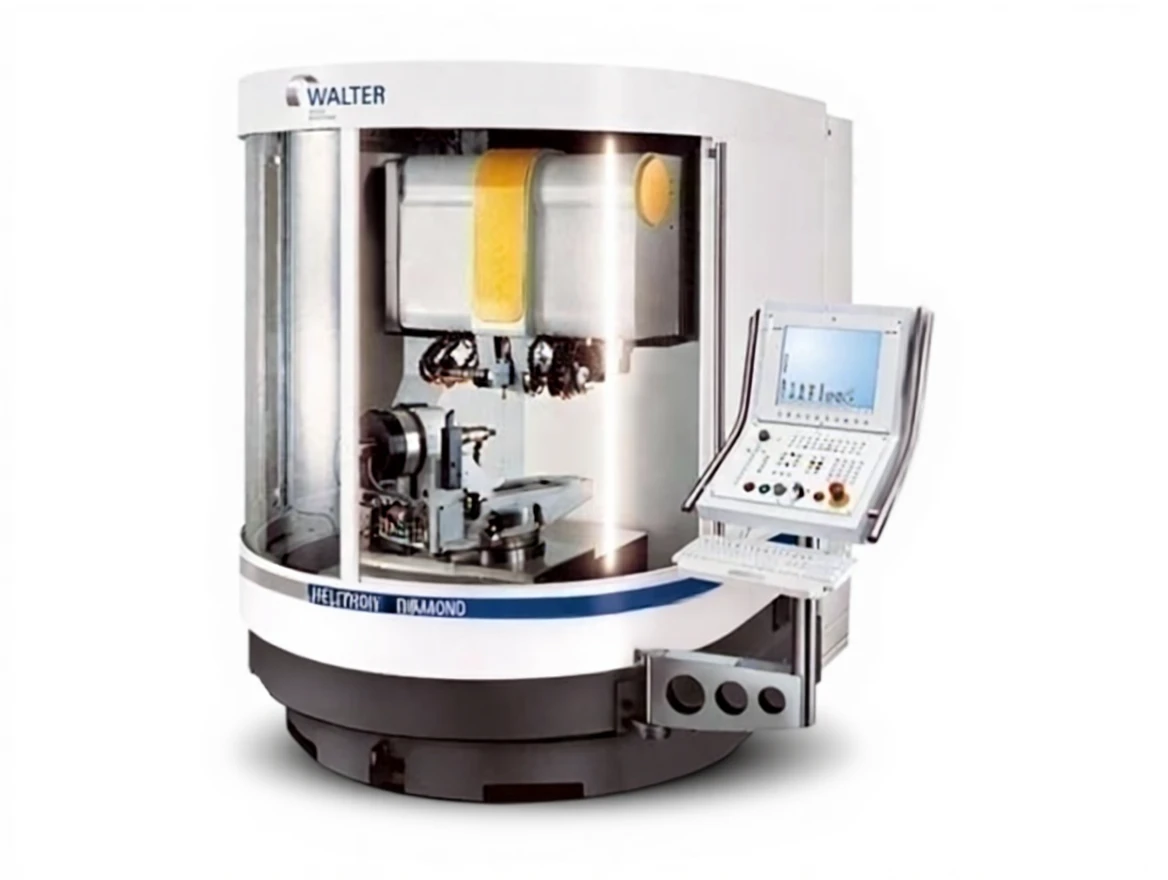

Walter Helitronic Diamond

For PCD and conventional tools

Maximum tool diameter: 320 mm

Maximum tool length

In cylindrical grinding: 350 mm

In face grinding: 280 mm

Maximum tool weight: 50 kg

X-Axis movement: 480 mm

Y-Axis movement: 320 mm

Z-Axis movement: 700 mm

X/Y/Z Axis traverse speed: 50 m/min

C-Axis rotary table: +/- 200 degrees

A-Axis movement: Infinite

Maximum grinding wheel diameter: 200 mm

Spindle: 10000 rpm
