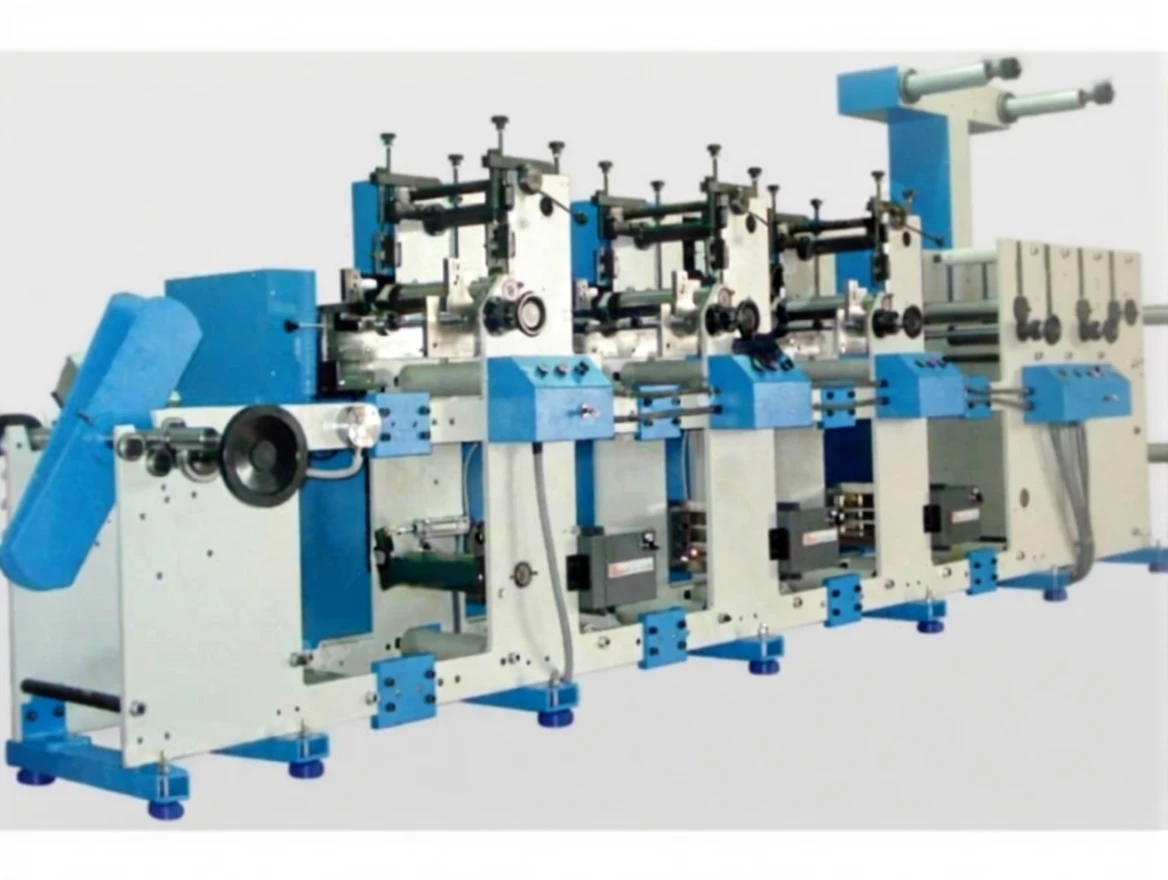

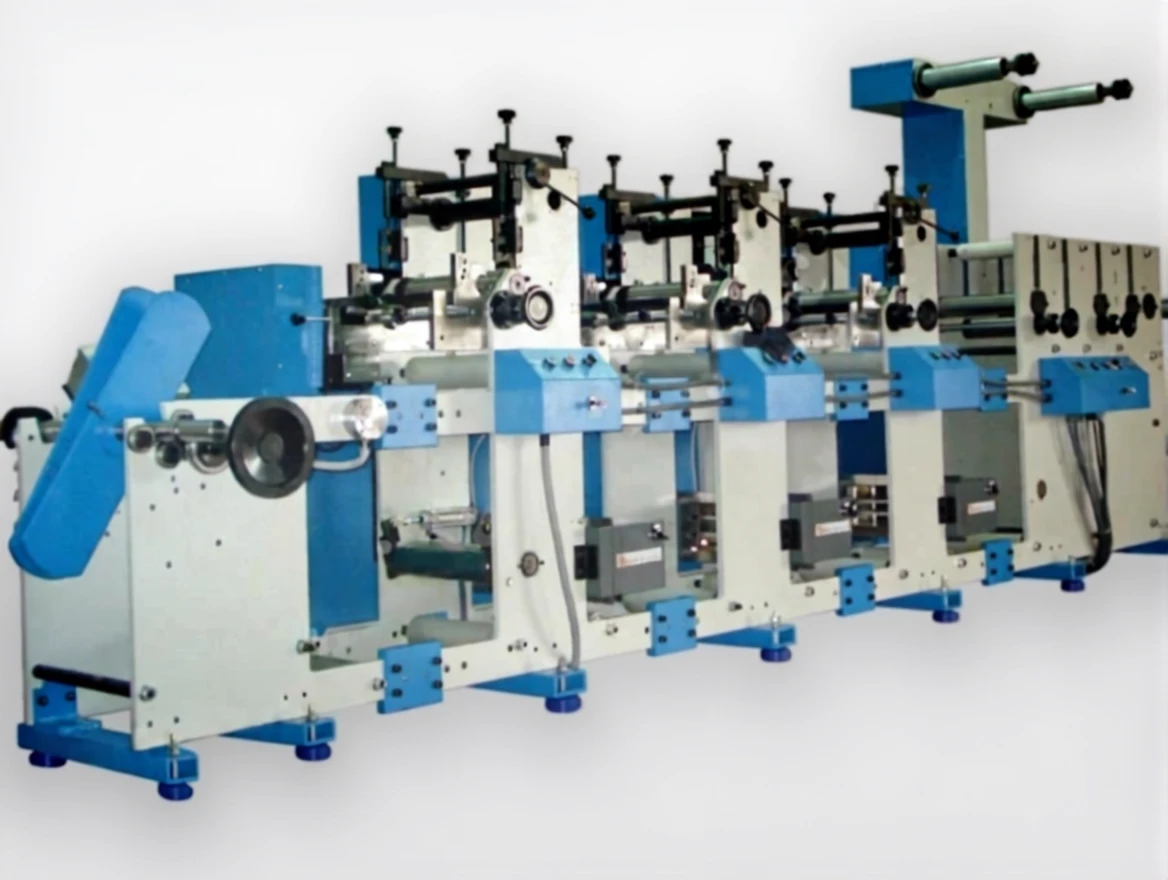

PD750 (260 mm) Flexo Label Printing Machine

260 mm Flexo Printed Label Machine

Product Description

Onur Kalıp PD750 is a flexo printed label machine designed with a maximum paper width of 260 mm, featuring high-speed and flexible printing capacity. It facilitates and accelerates your production processes with multiple printing stations and optional drying modules.

Technical Specifications

General

• Maximum Speed: 150 m/min

• Maximum Paper Width: 260 mm

Feeding Module

• Maximum Roll Diameter: 1000 mm

• 76 mm Pneumatic Shaft: Optional

Rewinder

• Rewinder Capacity: 700 mm

• 76 mm Pneumatic Shaft: Optional

• Rewind Shaft: 1 piece

Printing

• Maximum Print Width: 250 mm

• Printing Station: Between 1 to 4

• Print Length: 160 mm – 600 mm

• Print Gear: 1/8" C.P

Drying

• Hot Air: Optional

• UV: Optional

Knife / Perforation Module

• Rotary Knife: 2 + 1 piece

• Cutting Module: Optional

• Cutting Length: 160 mm – 600 mm

• Adjustment While Machine is Running: Yes

• A4 Cutting Feature: Yes

Motor & Electricity

• Electricity: 220V, 2 Phase

• Power: 3 kW

Key Advantages

• High speed and flexible printing options

• Ability to produce various designs with multiple printing stations

• Adaptability to different needs with optional hot air and UV drying modules

• Integrated cutting solutions with rotary knife and cutting modules

• Continuous production with the ability to make adjustments while running

Areas of Use

• Label production facilities

• Packaging and promotion sector

• Food, cosmetics, and pharmaceutical industries

• Post-printing cutting and lamination processes
