Pipe Welding Machine (1)

Welding Machine

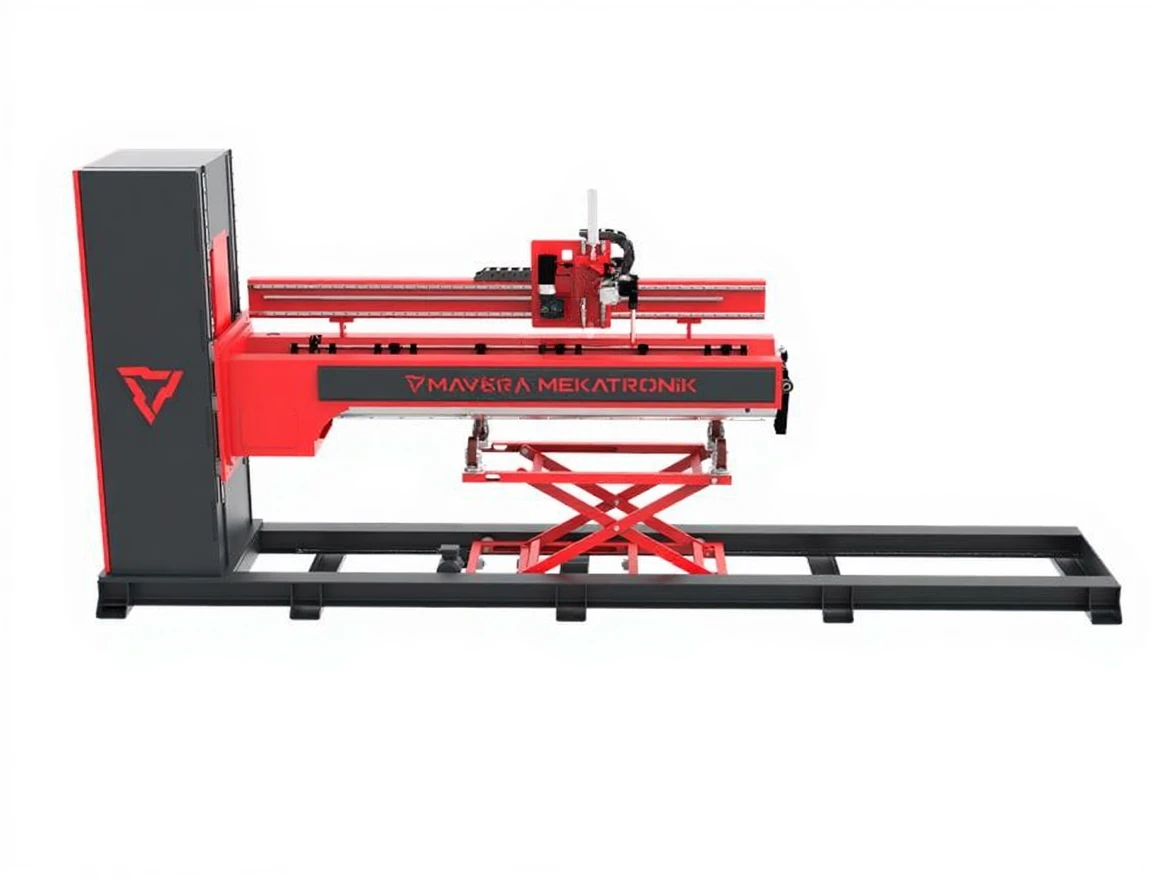

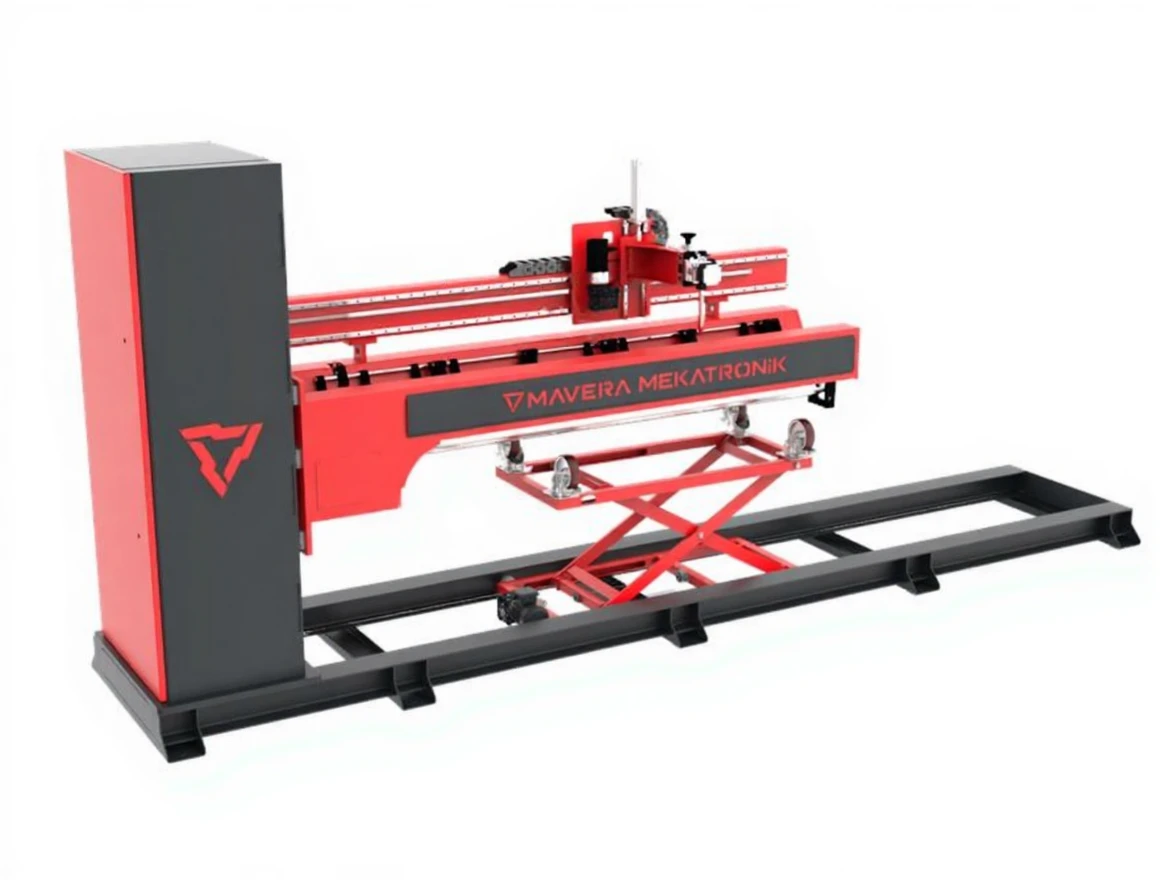

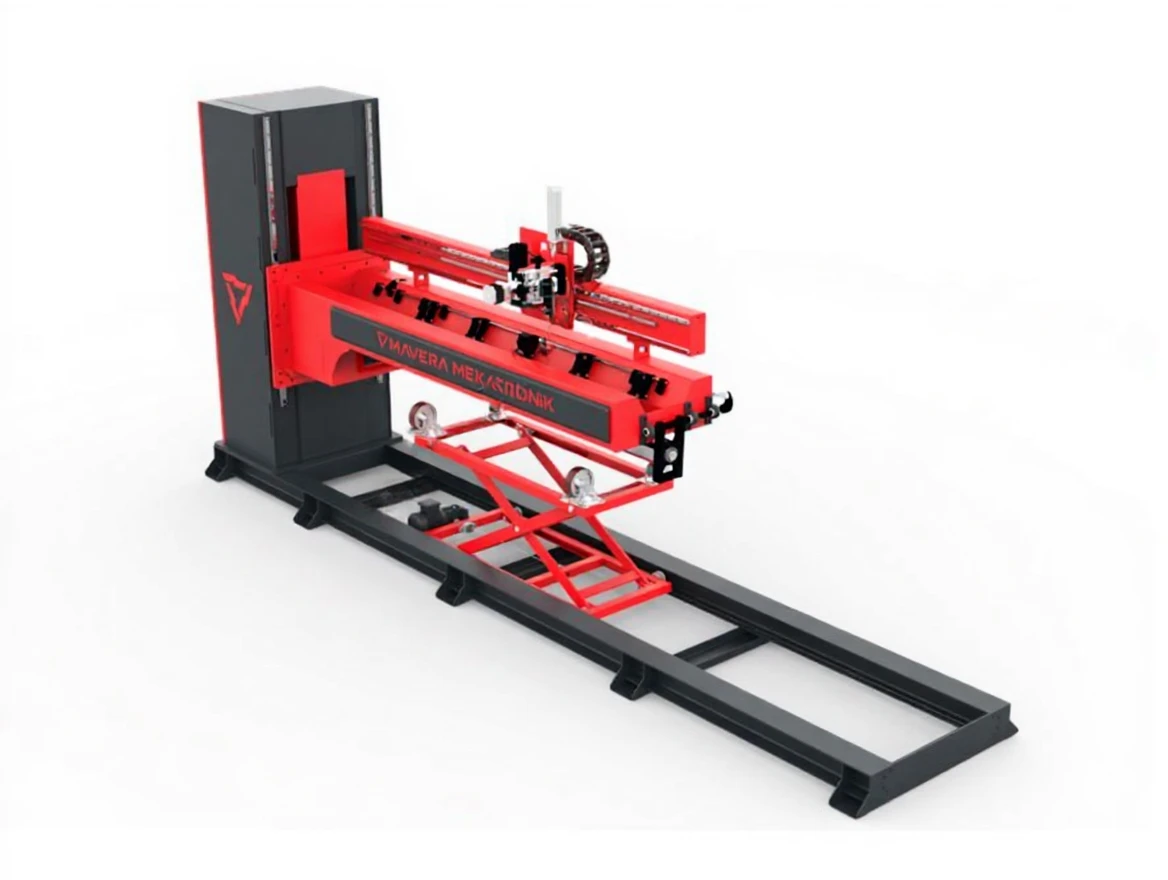

The welding machine is designed to perform continuous and high-quality welding processes on sheet metal parts compressed between copper plates thanks to its movement capability on the linear axis. It enables the longitudinal welding processes of cylindrical, conical, and rectangular bent sheet metal parts and flat plates to be carried out in repeatable standards with minimum operator effect.

The machine stands out with high efficiency, low error rate, and operator safety. Before production, simulations can be made, and all parameters can be controlled via the user-friendly touch panel. Recipe definitions for different products can be saved, allowing for quick transitions and production standardization.

Areas of Use

• Expansion tank production

• Boiler and calorifier manufacturing

• LPG tank body welds

• Production of pressurized vessels and industrial tanks

• Solar water heaters

• Welding of cylindrical and flat sheet metal bodies

Standard Features

• Centering system (Sword mechanism)

• Support system on the lower console

• Manually lockable front console

• Fixture for welding gun

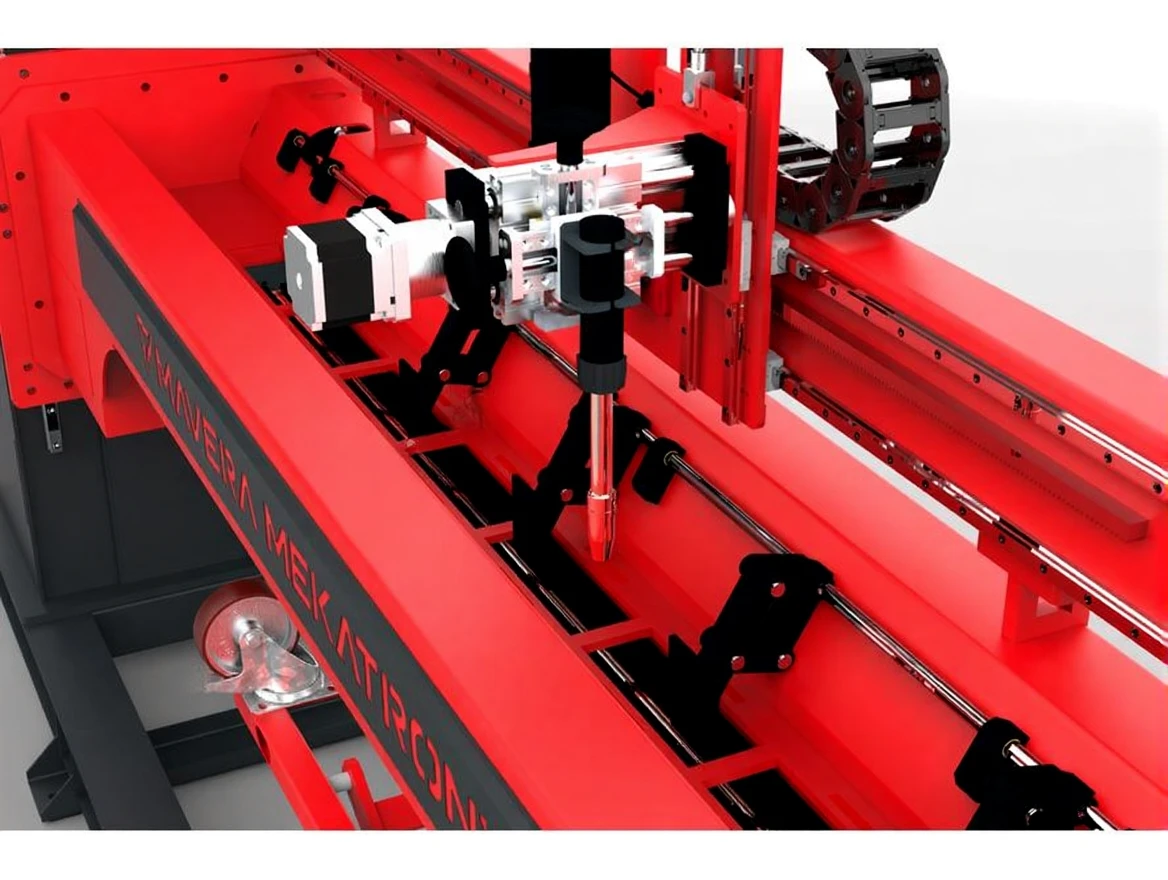

• X-Z axis linear slide and slider system

• Adjustable torch holder fixtures

• Recipe recording and management via touch panel

• CuCrZr alloyed copper platen

• Separate trigger system (independent control for wire feeding)

• Weld initiation with tacking feature

• Pre-production welding-free simulation possibility

Optional Features

• Bottom and top gas protection systems

• Water cooling system

• Height-adjustable lift system

• Exchange of platen and shoe material for aluminum

• Material loading table

• Welding glass and operator protection curtain

• Brush cleaning unit before and after welding

• Software infrastructure that can call different JOB parameters

• Oscillation system
