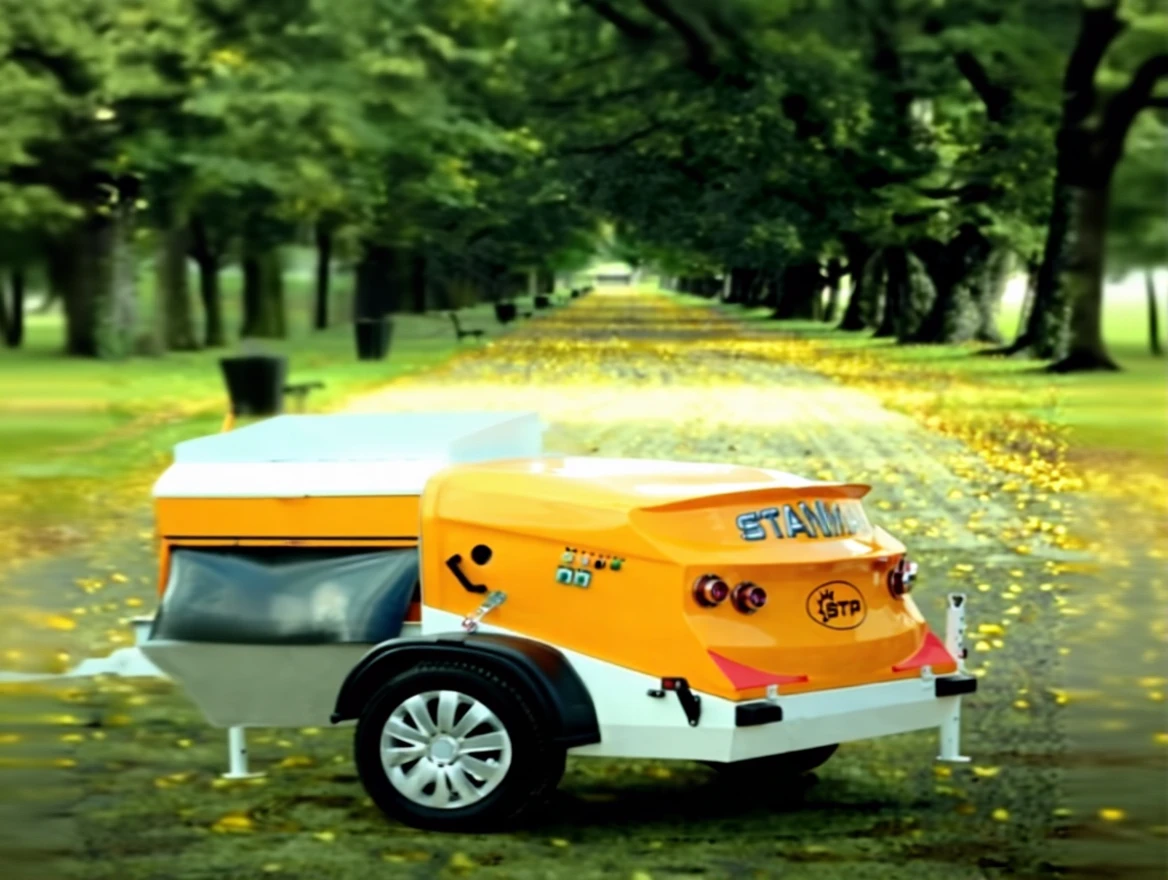

Piston Plaster Machine

Piston Plaster Machine

Stanmak STP-2

TECHNICAL SPECIFICATIONS

● Material Used: Sand, Cement, Lime
● Pumping Capacity: 30 -60 – 90 – 1/min
● Pumping Pressure: 40 bar
● Pumping Distance (horizontal): 100 – 150m
● Pumping Height: 60 – 80m
● Operating: 400 V, 50 Hz
● Pump Motor: 5.5 kW
● Mixer Motor: 2.2 kW
● Vibrator Sieve 8mm
● Compressor Capacity: 2.2 kW, 350 1/min
● Remote Control: Digital
● Material Output: 2″
● Pumping Hose: 90m
● Gear: 3
● 24 V Control Panel
● Reinforced Mattress System
● Transmission System
● WASHING MACHINE WITH GIFT
● AUTOMATIC WATER INTAKE FEATURE
● CLOSE IT FROM ANYWHERE WITH REMOTE CONTROL

SECURITY FEATURES

Smart Shut-Off System is activated when the Mortar Hose is Clogged (This system prevents any risk of injury or fatal accident)

The operator control panel works with 24 Volt. (The operator is not exposed to electric current)
