Plastic Raw Material Dryer 75 Kg
| Brand | Almet Makina |
|---|---|
| Model Type |
ALM-75 |
Plastic Raw Material Dryer 75 Kg

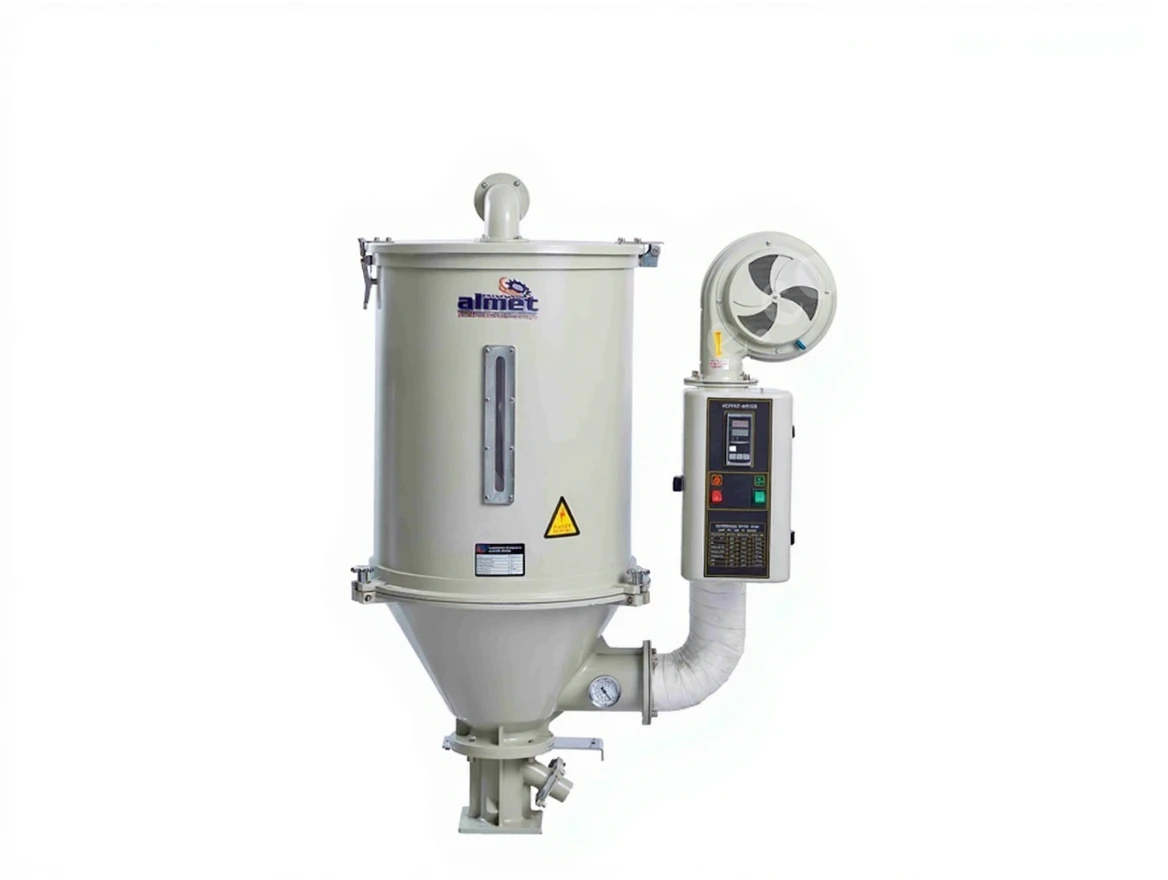

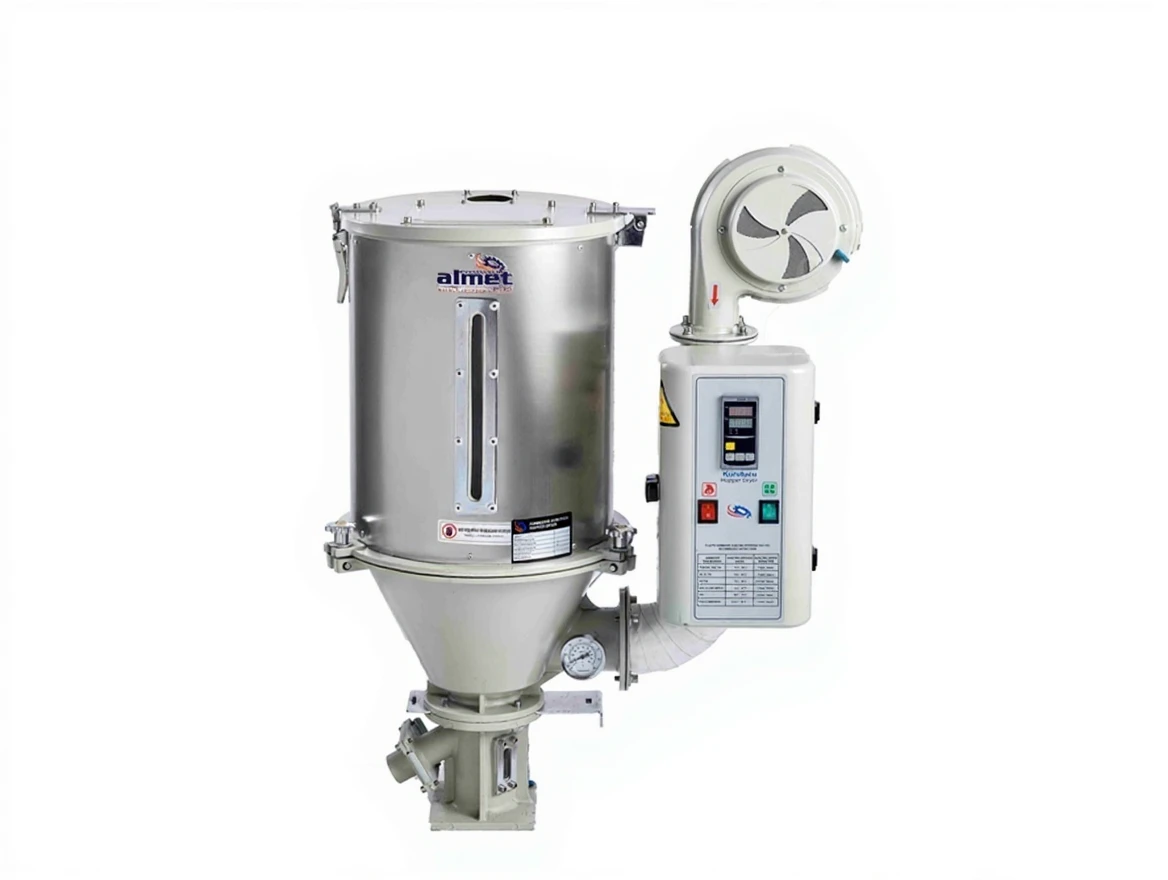

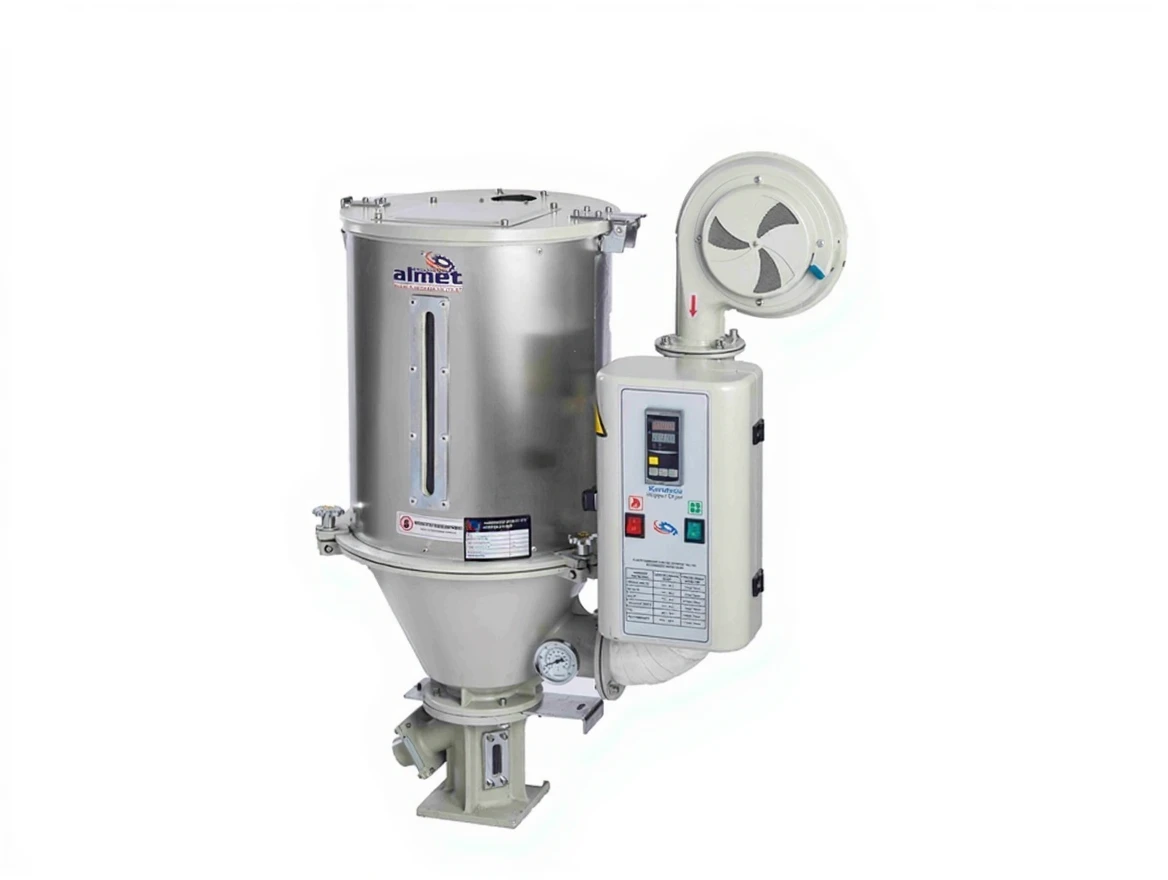

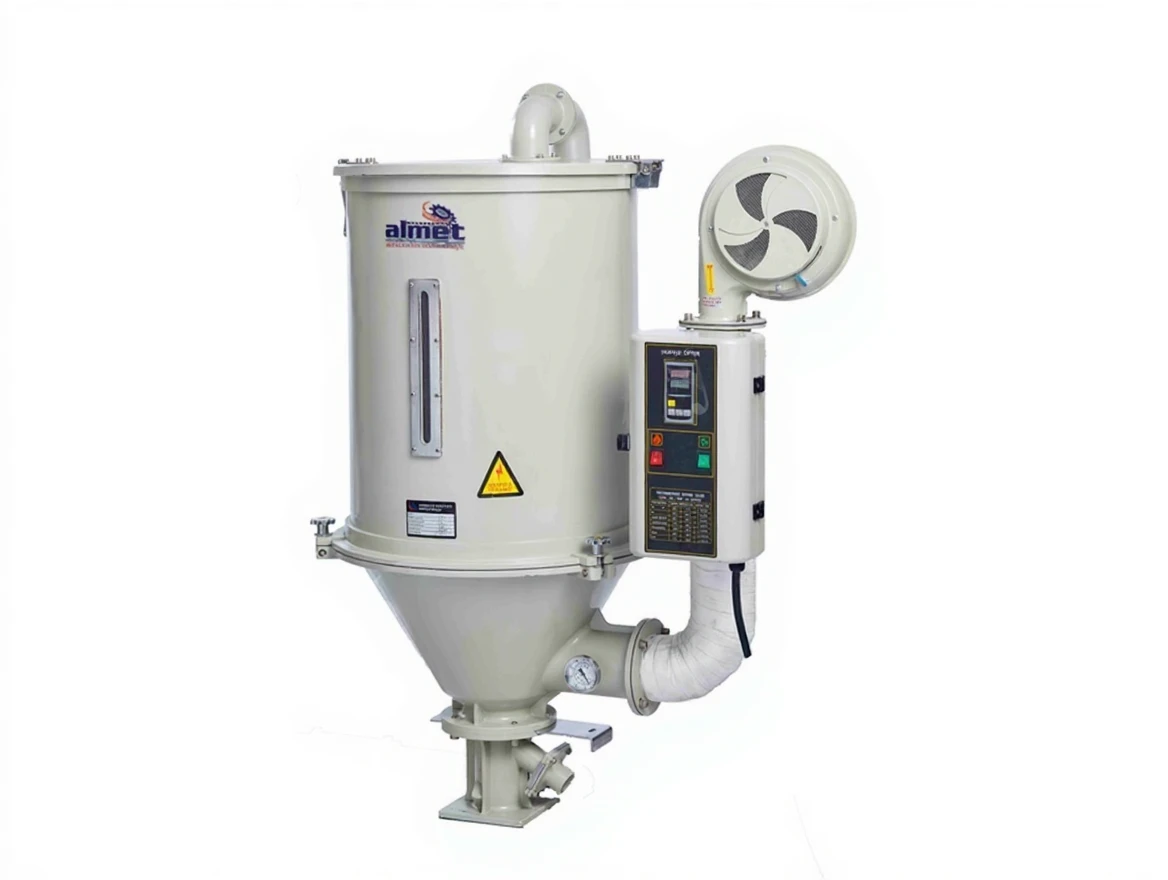

Product: Almet Machine ALM-75 / 75 Kg Plastic Raw Material Dryer
Scope: Effective Drying of Plastic Raw Materials by Heating and Precise Temperature Control
Almet Machine ALM-75 is a drying device with a capacity of 75 kg that ensures effective drying of plastic raw materials. This device reduces the moisture of plastic raw materials before processing, providing efficient and high-quality production processes.
Main Features and Advantages
High Capacity and Effective Drying: The ALM-75, with its 75 kg capacity design, allows for the rapid and effective drying of plastic raw materials in large-scale production facilities. Thanks to advanced heating technology, plastic raw materials are dried homogeneously, achieving excellent results in production processes.
Durable and Robust Structure: The surfaces of the device that come into contact with the raw material are made of long-lasting and corrosion-resistant stainless steel. This increases the durability of the device, while the aluminum die-cast body structure provides efficiency in heat and adds extra strength to the body.
Easy Monitoring and Cleaning: The ALM-75 allows you to easily monitor the condition of the material with its window structure on the raw material hopper. Additionally, the hinged detachable body design makes cleaning and maintenance processes quite simple, ensuring long-term and reliable use.
Practical Material Discharge and Monitoring: The sliding throat connection piece facilitates the discharge and monitoring of the material. The optional magnetic sliding throat connection apparatus prevents dust from spreading in the environment and provides a clean working environment.
Advanced Filtration and Temperature Control: The dust filter ensures environmental cleanliness by preventing dust spread from the device. Precise temperature control can be achieved with the aluminum-bodied control panel and external thermometer. These features ensure that the drying process occurs at the correct temperature and with high efficiency.
General Application Area: The ALM-75 offers a high-performance and reliable solution for drying plastic raw materials. It provides effective and efficient drying, especially in medium-scale production facilities and plastic processing processes, thus achieving high-quality results.
Detailed Information and Contact: You can contact us for more information about the Almet Machine ALM-75 75 Kg Plastic Raw Material Dryer and to ask your questions about the product. Our expert team is ready to provide you with the most suitable solutions.
| Model | Capacity | Heating | Blower Power | Power | Dimension | Base Size | N.G |
|---|---|---|---|---|---|---|---|
| Capacity | Heating | Blower | Power | Dimension | Base Size | N.G | |
| (kg) | (KW) | (W) | (V) | LxWxH (cm) | (cm) | (kg) | |
| ALM-12 | 12 | 1.6 | 50 | 380/3P | 64x44x76 | 11x11xØ4 | 22 |
| ALM-25 | 25 | 3.5 | 155 | 380/3P | 76x50x82 | 16x16xØ6.2 | 34 |
| ALM-50 | 50 | 4.5 | 180 | 380/3P | 92x58x98 | 16x16xØ7 | 45 |
| ALM-75 | 75 | 6.5 | 200 | 380/3P | 99x62x105 | 16x16xØ7 | 56 |
| ALM-100 | 100 | 6.5 | 220 | 380/3P | 106x65x111 | 18x18xØ8 | 68 |
| ALM-150 | 150 | 9 | 220 | 380/3P | 111x96x132 | 20x20xØ8.8 | 78 |
| ALM-200 | 200 | 12 | 340 | 380/3P | 131x91x147 | 23x23xØ11.5 | 110 |
| ALM-300 | 300 | 15 | 340 | 380/3P | 136x97x167 | 27.5×27.5xØ12 | 152 |
| ALM-400 | 400 | 15 | 380 | 380/3P | 156x110x170 | 27.5×27.5xØ12 | 170 |
| ALM-600 | 600 | 20 | 600 | 380/3P | 158x116x240 | 28x28xØ13.5 | 280 |
| ALM-800 | 800 | 30 | 600 | 380/3P | 177x118x254 | 28x28xØ13.5 | 380 |
| Dryer Throat Flange | AØ | aØ | H | L |
|---|---|---|---|---|
| 12 KG | Ø130 | Ø60 | 120 | 110 |
| 25 KG | Ø170 | Ø70 | 185 | 160 |
| 50 KG | Ø200 | Ø70 | 155 | 160 |
| 75 KG | Ø200 | Ø70 | 155 | 160 |
| 100 KG | Ø230 | Ø82 | 175 | 180 |
| 150 KG | Ø230 | Ø82 | 175 | 180 |
| 200 KG | Ø270 | Ø120 | 203 | 230 |
