Pneumatic Direction Valve
| Brand | Milleral |
|---|---|
| Model Type |
MDV 160 |
Description
Milleral MDV 160 Pneumatic Direction Valve

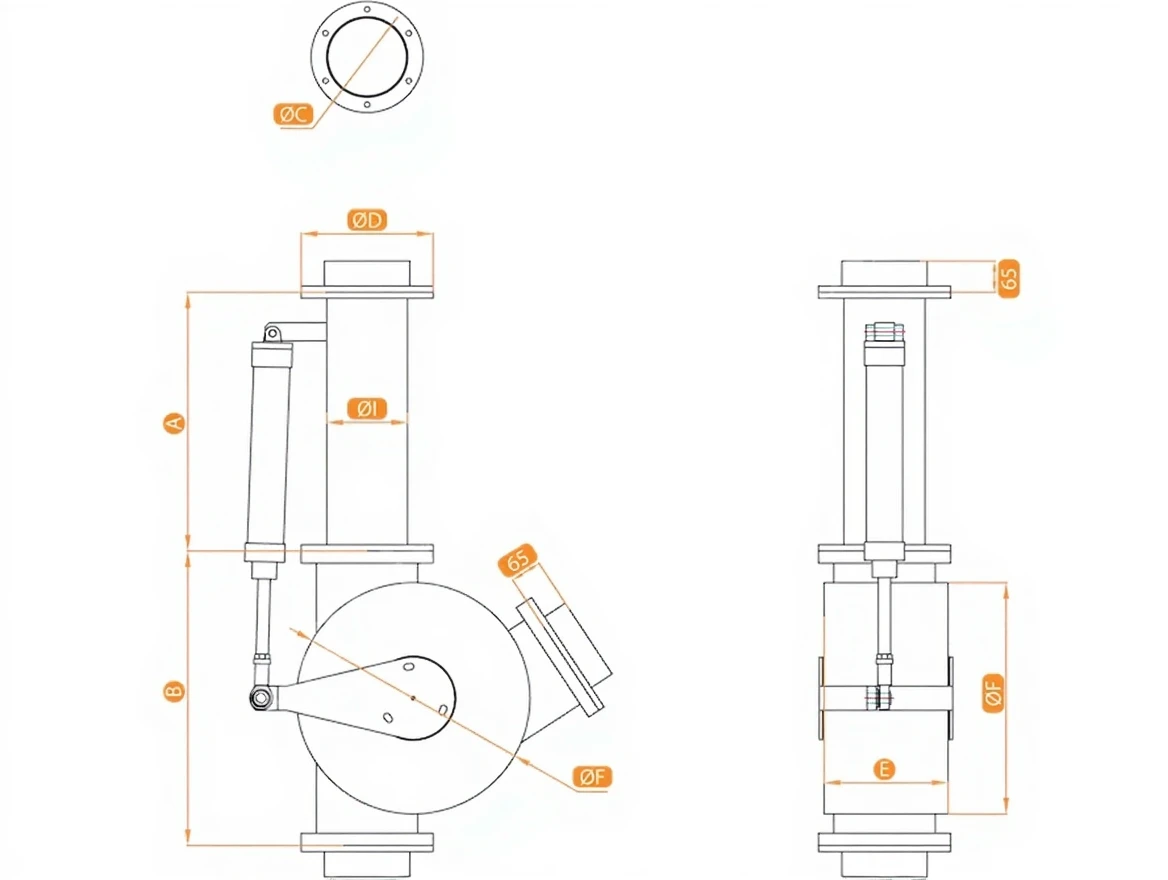

Milleral MDV Technical Specifications
| Model | A | B | ØC | ØD | E | ØF | ØI | Valve | Air Pressure | Piston |
| MDV 50 | 256 | 251 | 36-42 42-48 54-60 |
110 | 107 | 179 | 54-60 | 5/2-24VDV/220-240V | 6 | 32×115 mm |
| MDV 70 | 330 | 310 | 63-70 70-76 | 130 | 126 | 225 | 70-76 | 40×150 mm | ||
| MDV 95 | 345 | 401 | 76-83 83-89 96-102 | 165 | 154 | 287 | 96-102 | 50×180 mm | ||
| MDV 125 | 370 | 492 | 102-108 | 195 | 194 | 370 | 121-127 | 50×210 mm | ||
| MDV 135 | 425 | 484 | 108-114 | 215 | 202 | 380 | 133-139 | 50×260 mm | ||
| MDV 160 | 581 | 544 | 133-139 121-127 153-159 | 275 | 258 | 435 | 162-168 | 50×280 mm |
