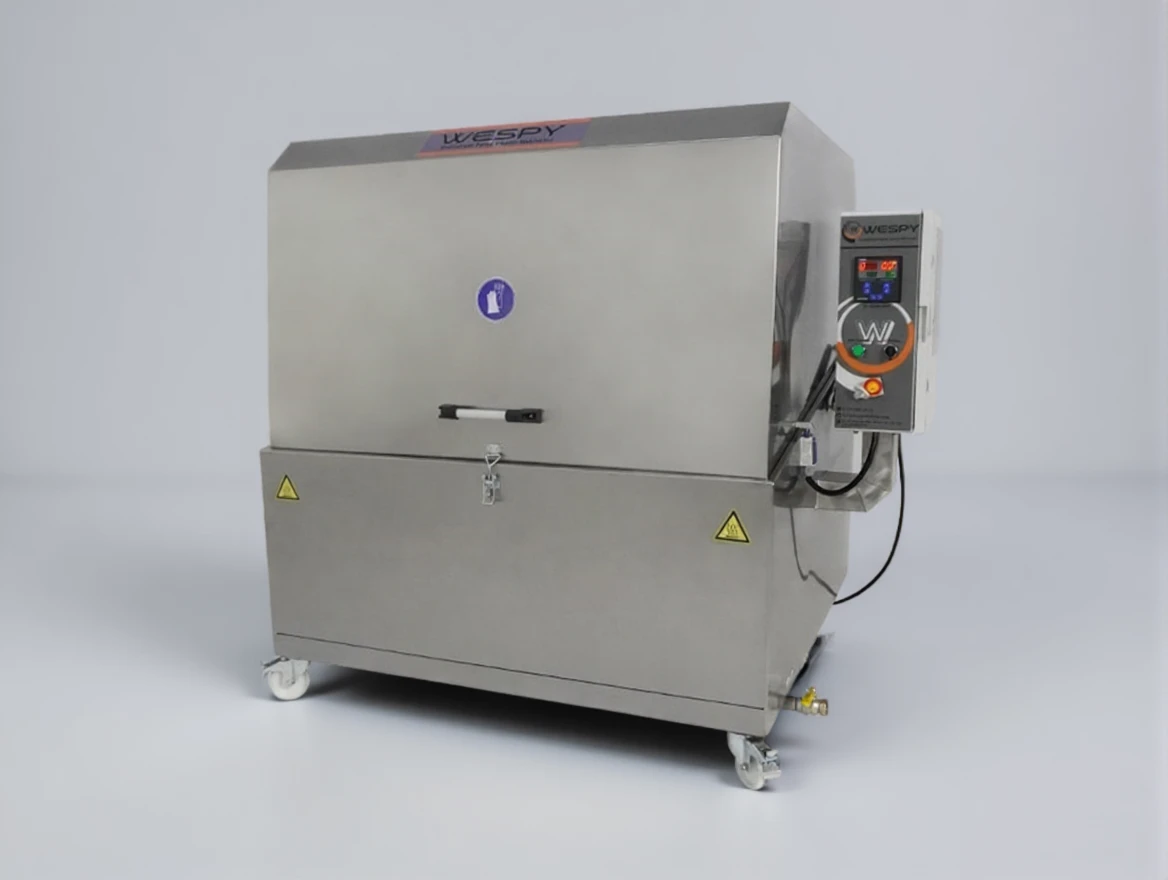

Pneumatic Front Cover Rotating Basket Part Washing Machine
| Brand | Wespy |
|---|---|
| Model Type |
DS-1250 |
Description
Pneumatic Front Cover Rotating Basket Part Washing Machine

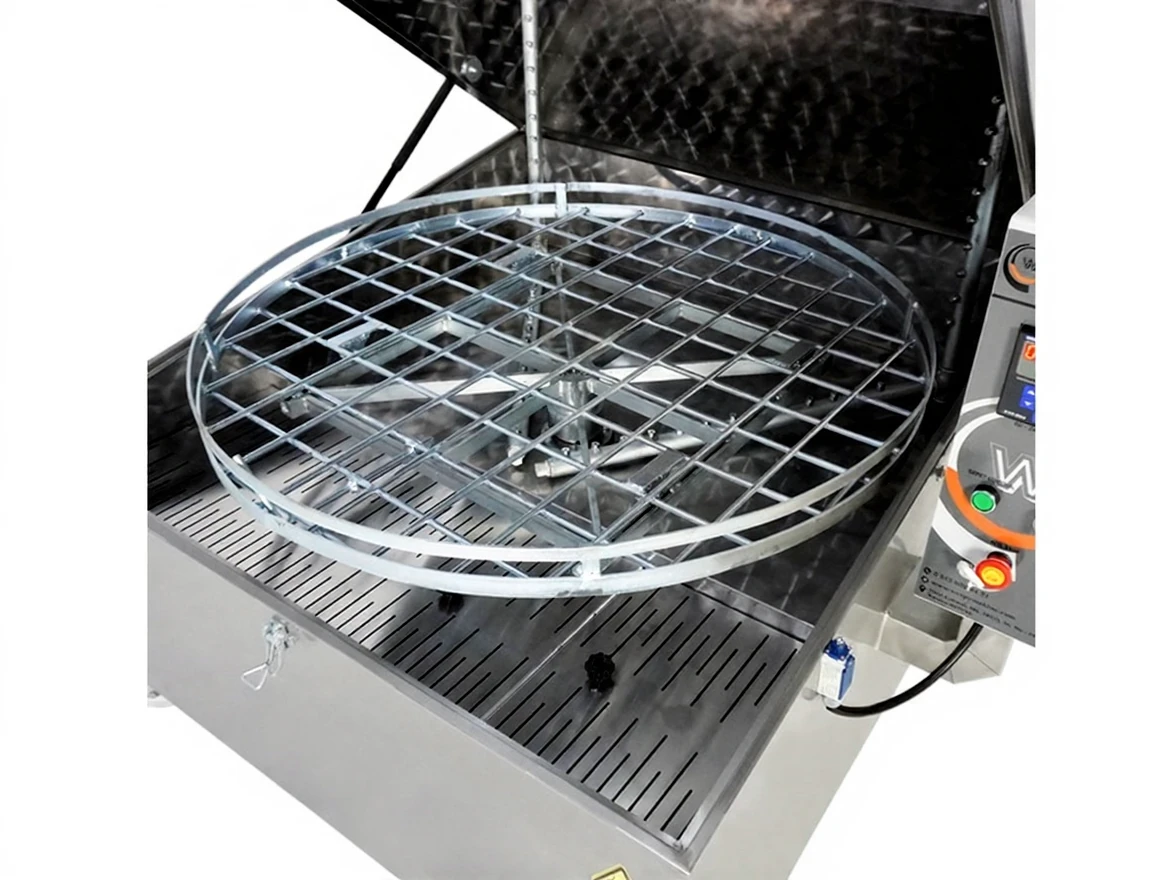

A basket placed on a stainless rotating platform with a sliding system is subjected to washing with high-pressure detergent and water in a closed chamber to clean the parts to be washed.
The washing process is carried out to clean oil, chips, dirt, and waste from dirty surfaces at different angles through time-adjustable high-pressure water nozzles, depending on the part structure and the level of dirt.
With the circulation system, water is filtered, and the washing of parts is designed to minimize the consumption of water, detergent, electricity, and time (work power).
| Feature | DS-1250 | DS-1500 |
|---|---|---|
| Basket Diameter Ø | 1150 mm | 1350 mm |
| Loading Height | 550 mm | 650 mm |
| Basket Capacity | 400 kg | 550 kg |
| Tank Capacity | 200 lt | 250 lt |
| Pump Pressure | 2.8 bar | 2.8 * 2 bar |
| Electricity (V/Phase) | 220 – 380 | 220 – 380 |
| Heater (kW) | 15 kW | 15 kW |
| Thermostat | 0.90 °C | 0.90 °C |
| Timer | 0.30 min | 0.30 min |
| Body Structure | 304-430 (AISI) | 304-430 (AISI) |
| Loading Cart | Standard | Standard |
| Machine Dimensions | 130016001450 mm | 150017501500 mm |
