POL8T2 Series Climatix Capacitive Touch Panels

Exopanel POL8T2 Series Climatix Capacitive Touch Panels

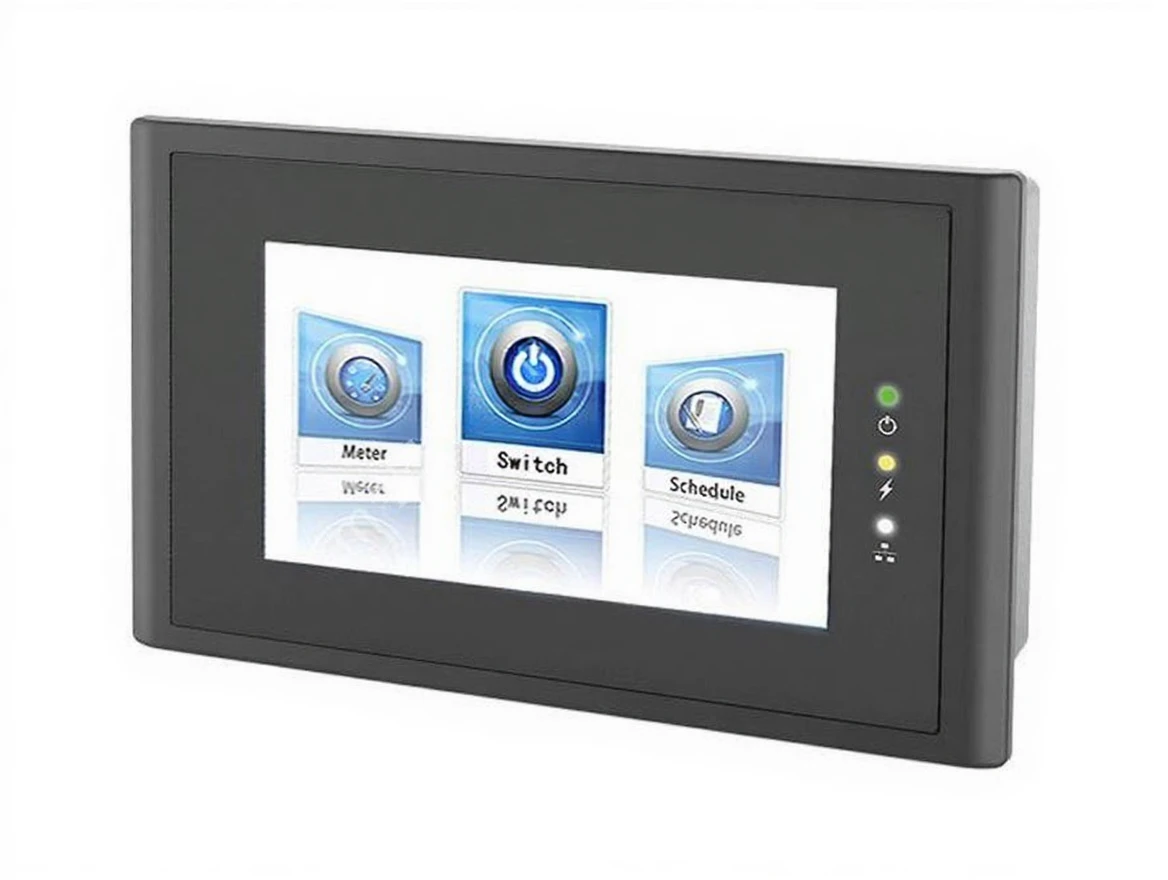

Siemens POL8T2.70/STD and POL8T2.40/STD are high-performance capacitive touch panels designed for HVAC systems. These models allow you to easily manage your systems with their user-friendly interfaces, durable structures, and wide connection options. Both models are available in different sizes and technical specifications according to their usage areas.
Our company professionally carries out the supply, installation, and system integration of POL8T2 series panels.

POL8T2.70/STD Technical Specifications
– Screen: 7 inches, LED backlit, 1024 × 600 pixel resolution
– Processor: Cortex A17, quad-core, 1.5 GHz
– Memory: 8 GB Flash, 1 GB DDR3 RAM
– Connections: Ethernet, RS485, USB (Type A and Type B)
– Power Consumption: 6 W
– Protection Class: Front panel IP65, rear panel IP20
– Mounting: 210 mm x 144 mm cut size

POL8T2.40/STD Technical Specifications
– Screen: 4 inches, LED backlit, 480 × 320 pixel resolution
– Processor: Cortex A9, dual-core, 1 GHz
– Memory: 4 GB Flash, 512 MB DDR3 RAM
– Connections: Ethernet, RS485, USB (Type A and Type B)
– Power Consumption: 4 W
– Protection Class: Front panel IP65, rear panel IP20
– Mounting: 130 mm x 90 mm cut size

Differences Between the Two Models
1. Screen Size and Resolution:
   – POL8T2.70/STD: 7 inches, 1024 × 600 pixels
   – POL8T2.40/STD: 4 inches, 480 × 320 pixels
2. Processor and Performance:
   – POL8T2.70/STD: Cortex A17, quad-core, 1.5 GHz
   – POL8T2.40/STD: Cortex A9, dual-core, 1 GHz
3. Memory Capacity:
   – POL8T2.70/STD: 8 GB Flash, 1 GB RAM
   – POL8T2.40/STD: 4 GB Flash, 512 MB RAM
4. Mounting Cut Size:
   – POL8T2.70/STD: 210 mm x 144 mm
   – POL8T2.40/STD: 130 mm x 90 mm
5. Power Consumption:
   – POL8T2.70/STD: 6 W
   – POL8T2.40/STD: 4 W
We provide professional supply, installation, and system integration services for POL8T2 series panels for your projects. We are here to help you successfully complete your projects with our reliable business partners and expert team.
